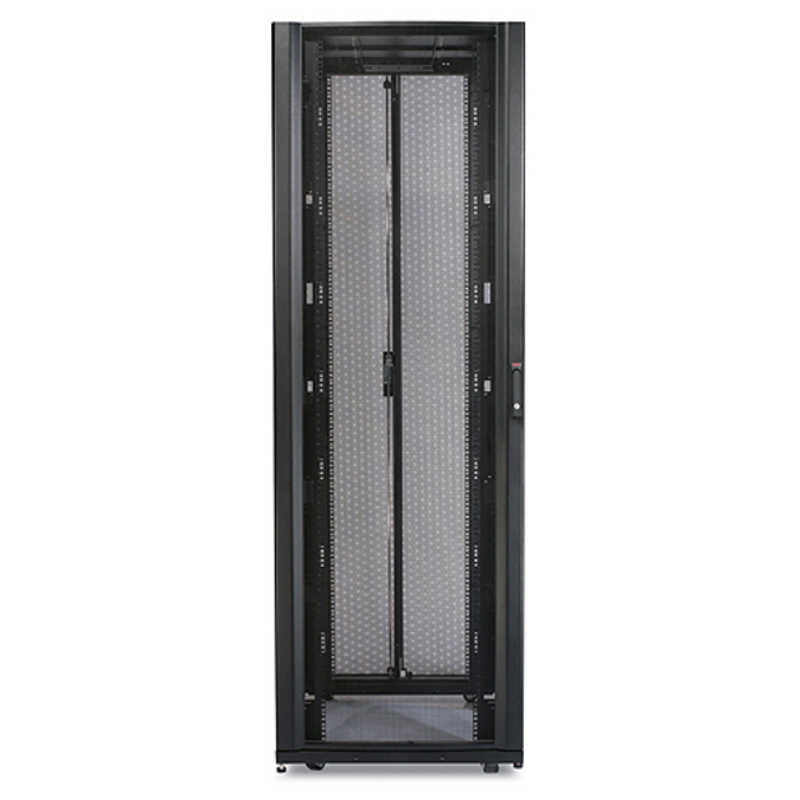

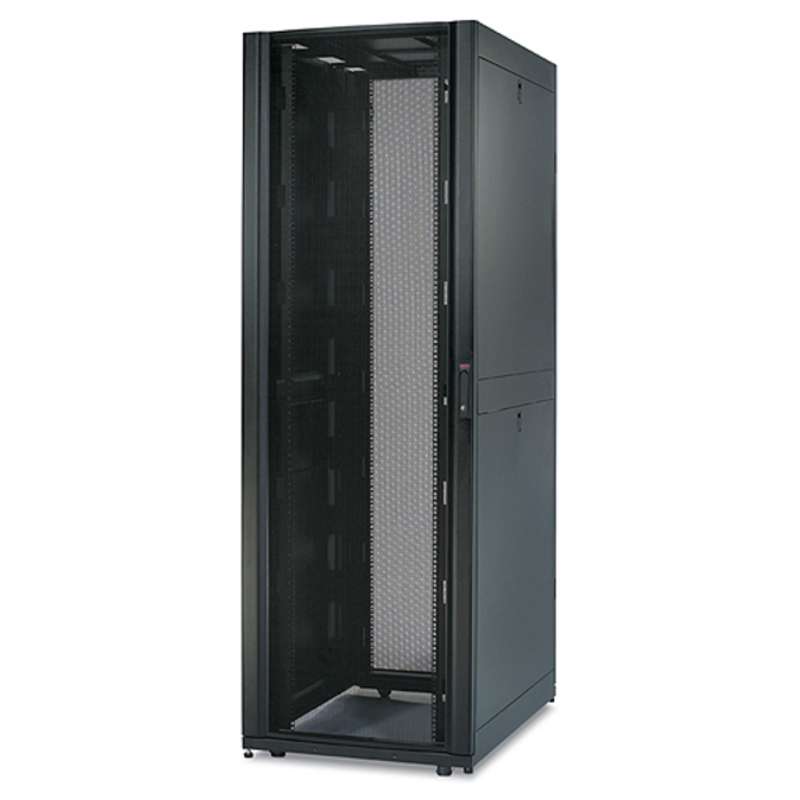

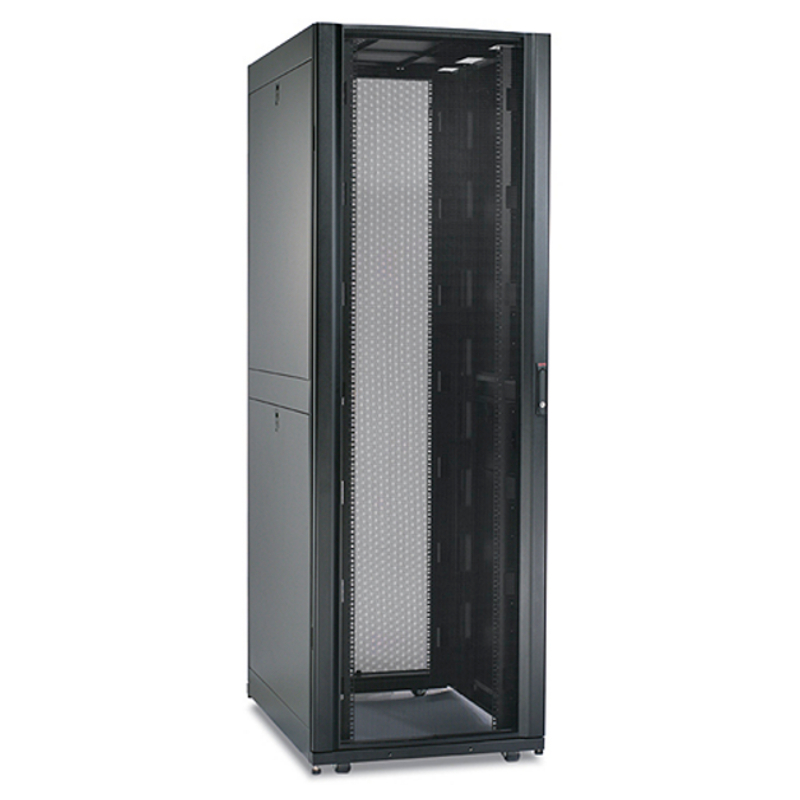

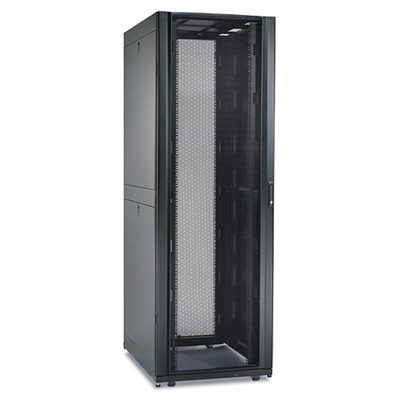

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm

SKU: AR3150 | Brand: APC Brand

Key Features

Designed for high density server and networking applications
Increased cable management options
42U height to easily roll through doorways
Plenty of clearance at the back for Rack PDUs and cable managers

Description

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways.
Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure.
It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components.
The width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack.

Product Images

Downloads & Documents

Compatible Products & Accessories

Accessories

AP5717

APC 17" Rack LCD Console

AP5719

APC 19" Rack LCD Console

AP5808

17" Rack LCD Console with Integrated 8 Port Analog KVM Switc...

AP5816

17" Rack LCD Console with Integrated 16 Port Analog KVM Swit...

AP9465

Appliance, EcoStruxure IT Data Center Expert, basic, up to 5...

AP9470

Appliance, EcoStruxure IT Data Center Expert, standard, up t...

AP9475

Appliance, EcoStruxure IT Data Center Expert, enterprise, up...

AR7600

NetShelter SX 42U/48U Baying Trim Kit Black

AR7714

NetShelter SX / SV Roof Brush Strip

AR8005

10-32 Hardware Kit

AR8100

M6 Hardware Kit

AR8132A

Combination Lock Handles (Qty 2) for NetShelter SX / SV / VX...

Airflow

AR7708

NetShelter SX Air Recirculation Prevention Kit

AR7731

NetShelter SX External Air Sealing Kit (qty 10)

AR8136BLK200

1U 19" Black Modular Toolless Airflow Management Blanking Pa...

Cable Management

AR8429

Horizontal Cable Organizer 1U w/brush strip

AR7209

APC NetShelter Cable Management, Cable Trough and Partition ...

AR8425A

Horizontal Cable Organizer 1U

AR8602A

APC NetShelter Cable Management, Horizontal Cable Manager, 1...

AR8600A

APC NetShelter Cable Management, Horizontal Cable Manager, 2...

AR8166ABLK

APC NetShelter Cable Management, Cable Ladder Attachment Kit...

AR8612

APC NetShelter Cable Management, Horizontal Cable Manager, 1...

AR8008BLK

Horizontal Cable Organizer Side Channel 18 to 30 inch adjust...

AR8567

APC NetShelter Cable Management, End Cap for Power Cable Tro...

AR8164ABLK

APC NetShelter Cable Management, Data Cable Ladder, with Lad...

AR8606

APC NetShelter Cable Management, Horizontal Cable Manager, 2...

AR8129

APC NetShelter Cable Management, Aluminium Arm, 6 x 44 x 457...

Mounting

AR7711

NetShelter Zero U Accessory Mounting Bracket

KVM-LCDMOUNT

APC KVM 2G, LCD Rear Mounting Kit

SYAOPT1

APC Symmetra LX 4-post rack-mounting rails

AR7508

NetShelter SX 42U 750mm Wide Recessed Rail Kit

AR7510

NetShelter SX 42U, 23" EIA Mounting Rails, Square Holes Qty....

AR8150BLK

Adapter Kit 23" to 19" Mounting

AR7578

NetShelter SX 48U 750mm Wide Recessed Rail Kit

Options

AR7301

NetShelter SX 42U 1070mm Deep Split Side Panels Black Qty 2

AR7305A

NetShelter SX 42U 1070mm Split Feed Through Side Panels Blac...

AR7753

VED for 750mm Wide Short Range / Vertical Exhaust Duct Kit f...

PDU

APDU11450ME

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 43....

APDU11150ME

APC NetShelter Rack PDU Advanced Gen 2, Metered, 7.4kW, 1Pha...

APDU11350ME

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22....

APDU11350SM

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Out...

APDU11450SM

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Out...

APDU11250SM

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Out...

APDU11151ME

APC NetShelter Rack PDU Advanced Gen 2, Metered, 5.0kW, 1Pha...

APDU11351ME

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 8.6...

APDU11151SW

APC NetShelter Rack PDU Advanced Gen 2, Switched, 5.0kW, 1Ph...

APDU11351SM

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Out...

APDU11151SM

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Out...

APDU11351SW

APC NetShelter Rack PDU Advanced Gen 2, Switched, 3Phase, 8....

Sensors

AP9513

NetShelter VX/SX Door Sensor Switch Kit

Shelving

AR8105BLK

Fixed Shelf 50lbs/22.7kg Black

AR8122BLK

Fixed Shelf - 250lbs/114kg, Black

AR8123BLK

Sliding Shelf 100lbs/45.5kg Black

AR8126ABLK

17" Keyboard Drawer Black

AR8128BLK

Sliding Shelf 200lbs/91kg Black

Stabilization

AR7605

Rack Leveling Pads and Spacers

AR7701A-S

NETSHELTER SX HIGH SEISMIC REGION & OSHPD BOLT-DOWN KIT

Transformers

APTF10KW01

APC WW 10KVA Isolation Transformer

APTF20KW01

APC WW 20KVA Isolation Transformer

UPS

SC450RMI1U

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

SCL500RMI1UC

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmou...

SCL500RMI1UNC

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmou...

SMC1000I-2UC

APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 230...

SMC2000I-2U

APC Smart-UPS C, Line Interactive, 2000VA, Rackmount 2U, 230...

SMC3000RMI2U

APC Smart-UPS C, Line Interactive, 3kVA, Rackmount 2U, 230V,...

SMT1000RMI2U

APC Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V,...

SMT1000RMI2UC

APC Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V,...

SMT1500RMI1U

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 230V,...

SMT1500RMI2U

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V,...

SMT1500RMI2UC

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V,...

SMT1500RMI2UNC

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 230V,...

(AR3150)

Specifications - AR3150

Overview

Lead time

Usually in Stock

Main

Product or component type	Rack enclosure
Number of rack unit	42U
Provided equipment	Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting hardware Pre-installed casters Side panels

Physical

Height	1991 mm
Width	750 mm
Depth	1070 mm
Net weight	155.96 kg
Colour	Black
Mounting preference	No preference
Mounting mode	Not rack-mountable
Maximum mounting depth	914.9 mm
Minimum mounting depth	261.9 mm
Rack width	19"
Marking	14 gauge EIA mounting rail 16 gauge front door 16 gauge post 16 gauge rear door 18 gauge roof 18 gauge side panels
Permanent permissible load	1020.6 kg dynamic 1701.0 kg static

Conformance

Standards

UL 2416
UL 60950-1
EIA-310E

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	211.70 cm
Package 1 Width	85.10 cm
Package 1 Length	115.60 cm
Package 1 Weight	168.180 kg
