StarTech 9U 19" Wall Mount Network Rack - RK919WALLO
Model # RK919WALLO
-
SKU: RK919WALLO
- Pick Up Available
- Australian Warranty
- Checkout Securely

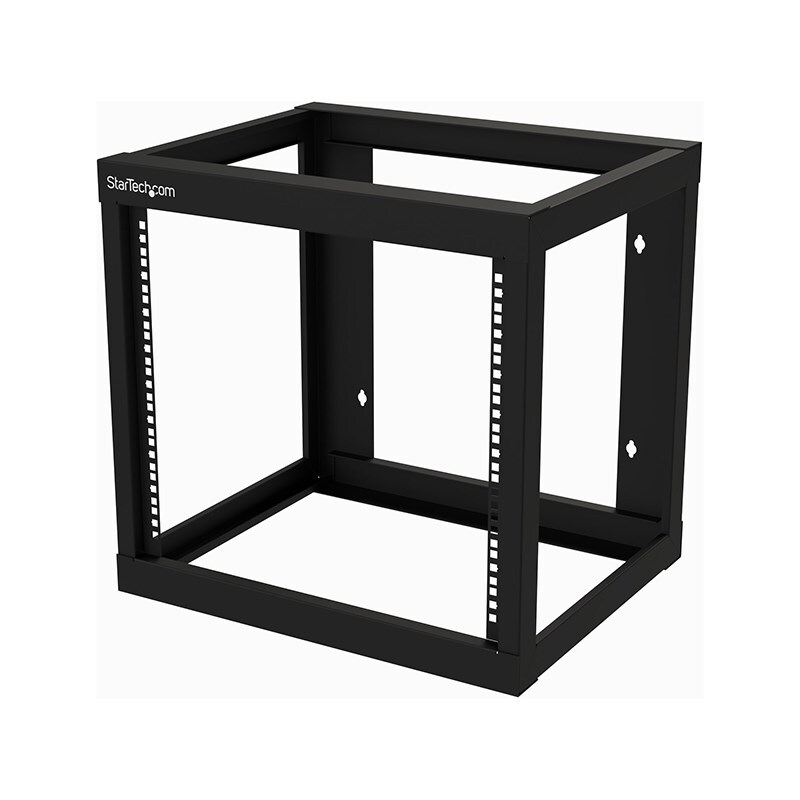

9U 19-inch open-frame wall-mount network rack
A fully assembled 9U steel wall rack for networking and AV equipment, with current exact-SKU maximum mounting depth of 17.1 inches (43.5 cm) and capacity up to 80 kg.
Key capabilities
9U wall-mounted capacity
Provides nine rack units for compatible 19-inch network, patch-panel and AV equipment.
80 kg load rating
The current exact-SKU StarTech specification lists a capacity of 176.4 lb (80 kg).
17.1-inch mounting depth
Current maximum mounting depth is 17.1 inches (43.5 cm), with cable clearance required beyond that depth.
Fully assembled open frame
Ships assembled with M6 rack hardware and a 3 m / 10 ft hook-and-loop roll for cable management.
What to know before buying
Confirm that installed equipment fits within the 17.1-inch (43.5 cm) mounting depth and allow extra space for cabling. Verify the wall structure, mounting hardware and total installed load before installation.
Product video
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is the StarTech RK919WALLO designed for?
How much weight can it support?
What is the maximum mounting depth?
Does it arrive assembled?
Which rack standard does it follow?
What cable-management item is included?
What should I allow for behind installed equipment?
What warranty applies to the StarTech RK919WALLO in Australia?
(RK919WALLO)
Features and highlights
9U wall-mounted capacity
Provides nine rack units for compatible 19-inch network, patch-panel and AV equipment.
80 kg load rating
The current exact-SKU StarTech specification lists a capacity of 176.4 lb (80 kg).
17.1-inch mounting depth
Current maximum mounting depth is 17.1 inches (43.5 cm), with cable clearance required beyond that depth.
Fully assembled open frame
Ships assembled with M6 rack hardware and a 3 m / 10 ft hook-and-loop roll for cable management.
- 9U
- 17.1 in mounting depth
- 80 kg capacity
- Lifetime warranty
Specifications
Verified specifications for StarTech RK919WALLO.
Hardware
| Warranty | Lifetime |
|---|---|
| Frame type | Open Frame |
| Industry standard | EIA/ECA-310-E |
| Mounting hole type | Square (For Cage Nut) |
| Mounting rail profile | G-Shape |
| Rack type | 2-Post |
| U height | 9U |
| Wallmountable | Yes |
Performance
| Weight capacity | 176.4 lb [80 kg] |
|---|---|
| Maximum mounting depth | 17.1 in [43.5 cm] |
| Depth note | Maximum mounting depth does not account for cabling |
Physical Characteristics
| Colour | Black |
|---|---|
| Construction material | Steel |
| Product length | 18.0 in [45.7 cm] |
| Product width | 21.9 in [55.5 cm] |
| Product height | 21.3 in [54.0 cm] |
| Weight of product | 21.8 lb [9.9 kg] |
Packaging
| Flat pack / assembly required | No |
|---|---|
| Package length | 24.4 in [62.0 cm] |
| Package width | 21.0 in [53.3 cm] |
| Package height | 24.4 in [62.0 cm] |
| Shipping weight | 27.6 lb [12.5 kg] |

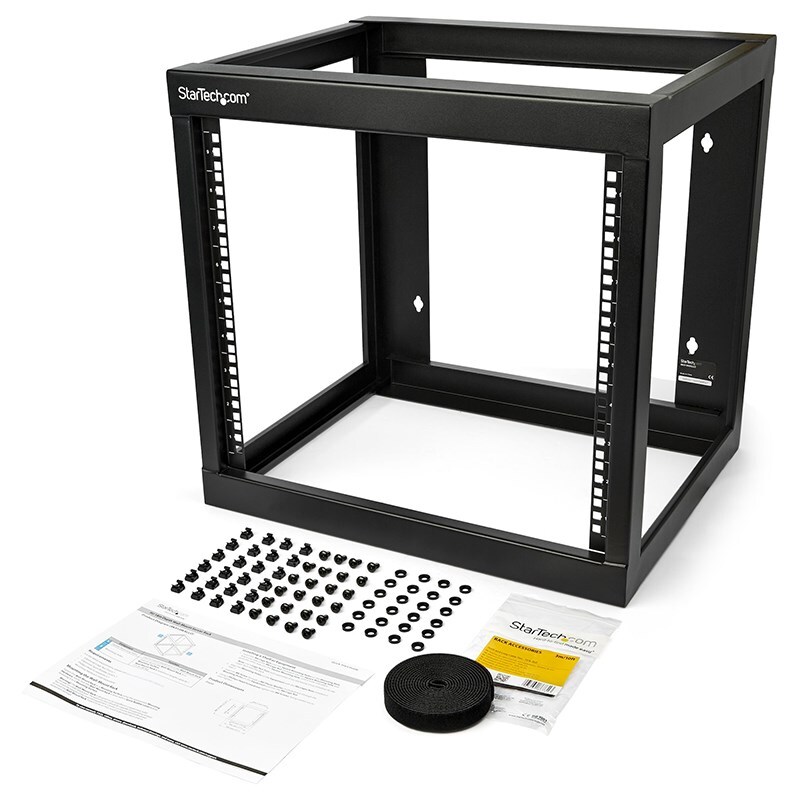

What's in the Box
| Wall-mount rack | 1 |
|---|---|
| M6 screws | 24 |
| M6 nuts | 24 |
| Black hook-and-loop | 1 × 3 m [10 ft] |
| SKU | RK919WALLO |
| Barcode # | 65030861212 |
| Brand | Startech |
| Shipping Weight | 12.5400kg |
| Shipping Width | 0.053m |
| Shipping Height | 0.062m |
| Shipping Length | 0.061m |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
