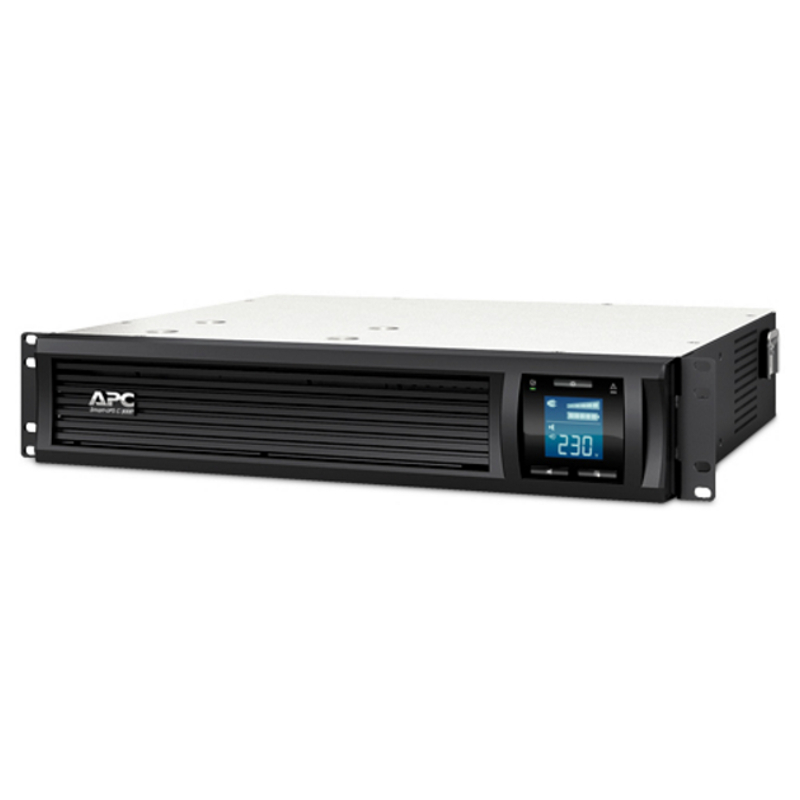

APC SMC3000RMI2U C 3000VA 230V Line Interactive Sinewave 2U Smart UPS
Model # SMC3000RMI2U
-
SKU: SMC3000RMI2U
- Pick Up Available
- Australian Warranty
- Checkout Securely
APC Smart-UPS C, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD
SKU: SMC3000RMI2U | Brand: APC Brand
Key Features
- <a>Replacement battery (1)</a> is available
- 3kVA/2100W line interactive pure sine wave 2U rackmount UPS
- Ideal for entry-level servers, networks, retail POS, and business VOIP
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
- Peace of mind with 2-year UPS warranty
Description
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime.
This 3000VA/2100W line-interactive UPS provides pure sinewave power to support critical electronics during power disruptions.
The 2U rack mount SMC operates in green mode for high operating efficiency.
It comes with IEC 320 C20 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 2x IEC jumper cables.
This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty.
Its dimensions are 670mm (depth) x 89mm (height) x 480mm (width) and weighs 41.0kg.
Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, and edge networks.
It conforms to CE, C-Tick, GOST, EAC, GS Mark, IRAM, SABS and VDE.
Product Images
Downloads & Documents
Compatible Products & Accessories
Mounting
PDU
AP8702R-WW
Power Cord Kit (6 ea), Locking, C13 TO C14 (90 Degree), 0.6m
AP8702S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m
AP8702S-WWX340
Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Red
AP8702S-WWX590
Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Blue
AP8704R-WW
Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m
AP8704S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m
AP8704S-WWX340
Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Red
AP8704S-WWX590
Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Blue
AP8706R-WW
Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m
AP8706S-WW
Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m
AP8706S-WWX340
Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Red
AP8706S-WWX591
Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Blue
Racks
AR3130
APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...
AR3140
APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 19...
AR3140W
APC NetShelter SX, Networking Rack Enclosure, 42U, White, 19...
AR3150
APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4...
AR3150SP
APC NetShelter SX, Server Rack Enclosure, 42U, Shock Packagi...
AR3150W
APC NetShelter SX, Server Rack Enclosure, 42U, White, 2258H ...
AR3155
APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H ...
AR3155SP
APC NetShelter SX, Server Rack Enclosure, 45U, Shock Packagi...
AR3157
APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H ...
AP5717
APC 17" Rack LCD Console
AP5719
APC 19" Rack LCD Console
AP5808
17" Rack LCD Console with Integrated 8 Port Analog KVM Switc...
Replacement battery
Service bypass panels
SBP16KRMI4U
APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; (...
SBP5000RMI2U
APC Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW inpu...
SBP6KRMI2U
APC Service Bypass Panel- 230V; 32A; MBB; Hardwire input; (4...
SBP3000RMHW
APC SERVICE BYPASS PDU, 230V 16AMP Hardwire
SBP3000RMI
APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C1...
(SMC3000RMI2U)
Specifications - SMC3000RMI2U
Overview
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Lead time | Usually Ships within 2 Weeks |
Main
| Main Input Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 320 C20 |
| Input voltage limits | 180...287 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 2100 W |
| rated power in VA | 3000 VA |
| Output connection type | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2100 W |
| Transfer time | 8 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50 Hz sync to mains |
Complementary
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Free slots | 0 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port USB port |
| Surge energy rate | 300 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Colour | Black |
| Height | 89 mm |
| Width | 480 mm |
| Depth | 670 mm |
| Net weight | 41 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with included kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting brackets USB cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Entry level |
| Redundant | No |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
Environment
| Product certifications | C-Tick CE EAC GOST IRAM SABS VDE UK PSTI |
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 42 dBA |
| Heat dissipation | 81 Btu/h |
| Operating altitude | 0...10000 ft |
Batteries & Runtime
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC151 |
| Battery charger power | 163 W rated |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.4 cm |
| Package 1 Width | 98 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 50.9 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | SMC3000RMI2U |
| Barcode # | 731304310112 |
| Brand | APC |
| Shipping Weight | 52.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.240m |
| Shipping Length | 0.975m |
| Shipping Cubic | 0.140400000m3 |
