Critical Power, Cooling and Racks > Uninterruptible Power Supply (UPS) > Computer and Peripheral > Back-UPS Pro > BR1200SI

APC Back-UPS Pro, Back-UPS Pro, 1200VA/720W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery

SKU: BR1200SI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
AVR corrects voltage variations to provide reliable power
Data line protection ensures complete protection of your equipment from surges
LCD display provides key UPS status at a glance with load and battery bar graphs
2 USB smart charging ports
Audible alarms provide notification of changing utility power and UPS power conditions

Description

This product is part of the Back-UPS Pro range.
This 1200VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only.
It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour.
Its dimensions are 26 x 10 x 36.8 cm and 11.7 kg.
The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

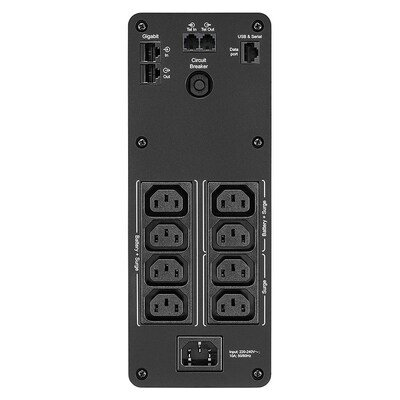

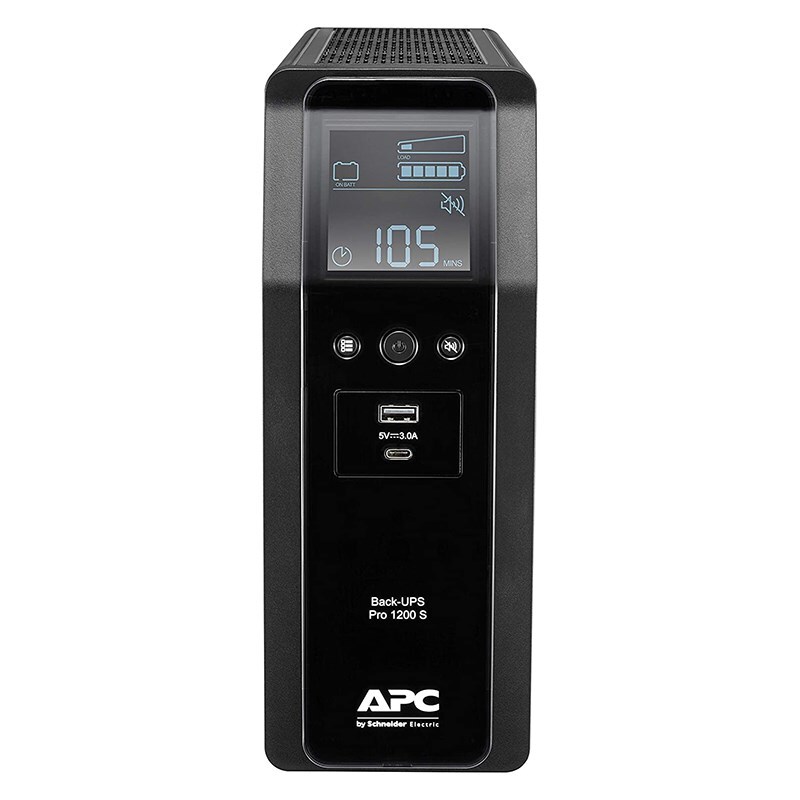

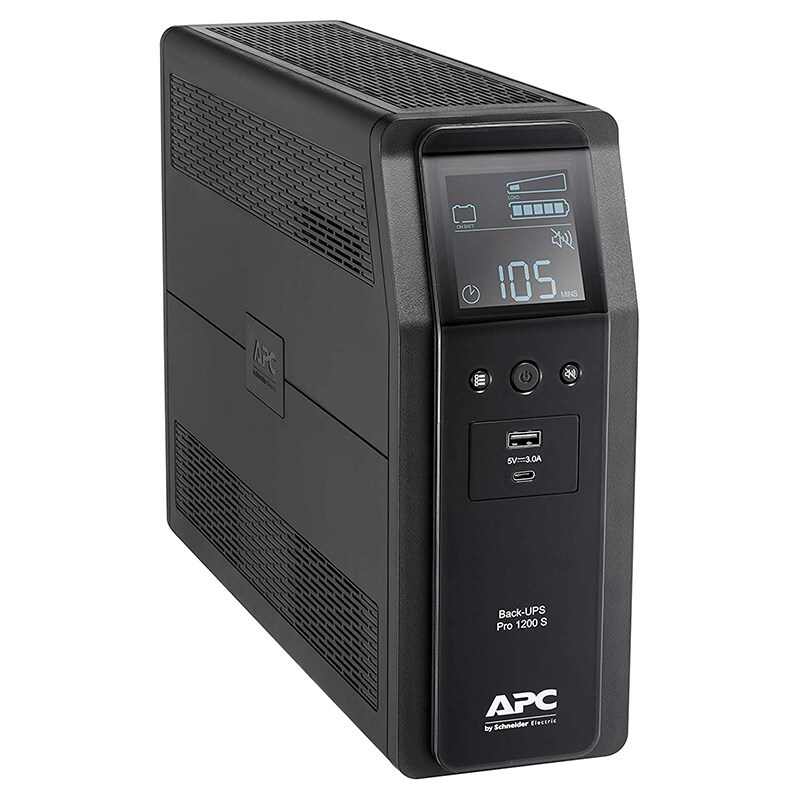

Product Images

Downloads & Documents

Compatible Products & Accessories

Replacement battery

APCRBC161

APC Replacement Battery Cartridge for Back-UPS Pro, 24V 9Ah ...

(BR1200SI)

Specifications - BR1200SI

Overview

Lead time

Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input Connection Type	IEC 60320 C14
Maximum input current	10 A
Switching current capacity	10 A
Input voltage limits	176...294 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	720 W
rated power in VA	1200 VA
Output connection type	6 IEC 60320 C13 2 IEC 60320 C13 surge
USB Charging Port	None
Maximum configurable power in VA	1200 VA
Maximum configurable power in W	720 W
UPS type	Line interactive
Output frequency	50/60 Hz +/- 1 Hz sync to mains

Complementary

Battery capacity	9.0 Ah
Battery type	Lead-acid internal included
Control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	USB port
Surge energy rate	509 J
Noise suppression	Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Colour	Black
Height	260 mm
Width	100 mm
Depth	368 mm
Net weight	11.7 kg
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS Pro
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	A-Tick C-Tick CE EAC RCM TISI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	45 dBA
Heat dissipation	16 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	24 V
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	16 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC161
Battery charger power	13 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	35.9 cm
Package 1 Width	48.2 cm
Package 1 Length	22.3 cm
Package 1 Weight	13.35 kg
SCC14	10731304346897

Contractual warranty

Warranty (in months)

SKU	BR1200SI
Barcode #	731304346890
Brand	APC
Shipping Weight	13.3700kg
Shipping Width	0.024m
Shipping Height	0.049m
Shipping Length	0.037m
