Critical Power, Cooling and Racks > IT Power Distribution > Rack Power Distribution > NetShelter Basic Rack PDUs > AP6120A

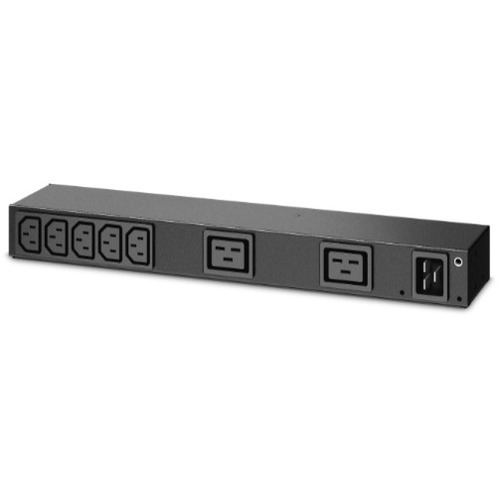

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19

SKU: AP6120A | Brand: APC Brand

Key Features

Features 7 C13 and 2 C19 outlets for extensive power distribution
Zero U design for efficient use of rack space
Supports up to 20A, 100 to 240V power distribution
Includes toolless mounting kit for quick setup

Description

It is a basic rack PDU with a 1U horizontal mounting design.
It supports a maximum input current of 20A and operates at 100-240V.
The PDU features 7 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets.
It includes an IEC 60320 C20 plug.
It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.

Product Images

Downloads & Documents

Compatible Products & Accessories

Racks

AR3100

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H ...

AR3003

APC NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x...

AR3006

APC NetShelter SX, Server Rack Enclosure, 18U, Black, 925H x...

AR3103

APC NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x...

AR3105

APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H ...

ER6202

APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...

ER8222

APC Easy Rack, 42U, Black, With Roof, Castors, Feet, 4 Brac...

(AP6120A)

Specifications - AP6120A

Overview

Lead time

Usually in Stock

Main

Product or component type	PDU
PDU type	Basic
Provided equipment	Installation guide Safety guide

Complementary

Input Voltage	100 V 120 V 200 V 208 V 230 V 240 V
Height	44 mm
Width	388 mm
Output Voltage	100 V 120 V 200 V 208 V 230 V 240 V
Depth	93 mm
Net weight	1.56 kg
Mounting location	Front Rear
Mounting preference	No preference
Input Plug Type	IEC 60320 C20
Mounting mode	Not rack-mountable
Rack units	1U
USB compatible	No
Mounting position	Horizontal
[In] rated current	16 A
permissible voltage	100…240 V
Max line current	20 A
Input current limits	20 A
Load capacity	2300 VA
Network frequency	50/60 Hz
Outlet type and quantity	7 IEC 60320 C13 2 IEC 60320 C19

Environment

Product certifications

cUL listed
CE
EAC
IRAM
PSE
UL listed
VDE

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	21 cm
Package 1 Width	7.6 cm
Package 1 Length	43.6 cm
Package 1 Weight	2.02 kg
SCC14	50731304327856

Contractual warranty

Warranty (in months)

SKU	AP6120A
Barcode #	731304327851
Brand	APC
Shipping Weight	2.0200kg
Shipping Width	0.009m
Shipping Height	0.043m
Shipping Length	0.021m
