- True Online Double Conversion
- Wide input voltage range
- Input power factor correction 0.98
- 50Hz/60Hz frequency converter mode
- Programmable power outlets
- Emergency power off function (EPO)
- Optional Eco-mode operation for energy saving
- Generator compatible
- Backup time for all models is easily extended by simply plugging additional battery banks
- Battery banks are available with internal charger to enable fast recharge even with large battery banks
- USB, RS232, SNMP and AS400 multiple communications available
- Extendable maintenance bypass available for all models
- N+X parallel redundancy available for 6K/10K model

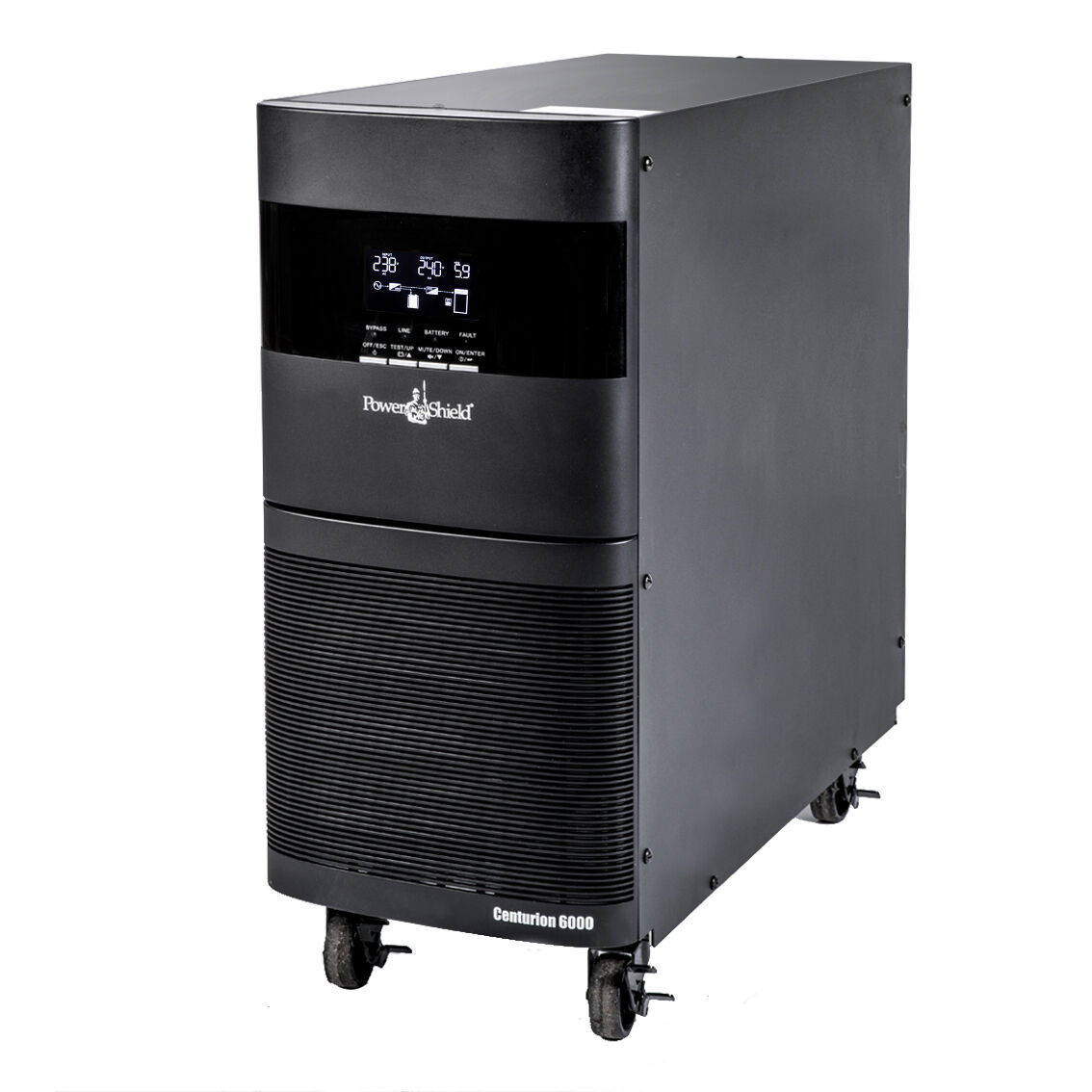

PowerShield Centurion 6000VA Tower UPS, True Online Double Conversion
Model # PSCE6000
-
SKU: PSCE6000
Don't pay: $6,534.00
$5,058.00
SAVE $1,476.00 (23%)
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
Description
The PowerShield Centurion UPS provides a permanent backup power solution for sensitive devices such as medical equipment and internet routers. Use Power Shield Centurion to protect: •Servers •Critical power applications •Items in remote areas (over 30 kms outside of city grid) •Where light to heavy industrial equipment is utilised •Where generators are present •Applications that require remote connectivity Tower Features: •True Online Double Conversion •Wide input voltage range •Input power factor correction 0.98 •50Hz/60Hz frequency converter mode •Programmable power outlets •Emergency power off function (EPO) •Optional Eco-mode operation for energy saving •Generator compatible •Backup time for all models is easily extended by simply plugging additional battery banks •Battery banks are available with internal charger to enable fast recharge even with large battery banks •USB, RS232, SNMP and AS400 multiple communications availalble •Extendable maintenance bypass available for all models •N+X parallel redundancy available for 6K/10K model
(PSCE6000)
Technical Details
| Model Number | PSCE6000 |
|---|---|
| Capacity | 6000VA / 5400W |
| Topology | True online double-conversion |
| Voltage | 208 / 220 / 230 / 240 Vac |
| Voltage Range | 110-300 VAC at 50% load 176-300 VAC at 100% load |
| Frequency Range | 46Hz~54Hz or 56Hz~64Hz |
| Output Voltage | 240Vac (208 / 220 / 230 / 240 Vac - Selectable) |
| Frequency | 46~54Hz or 56~64Hz (Auto detect) |
| Frequency Range (Batt. Mode) | 0Hz ?± 0.1Hz or 60Hz ?± 0.1Hz |
| Transfer Time | zero |
| Waveform (Batt. Mode) | Pure Sinewave |

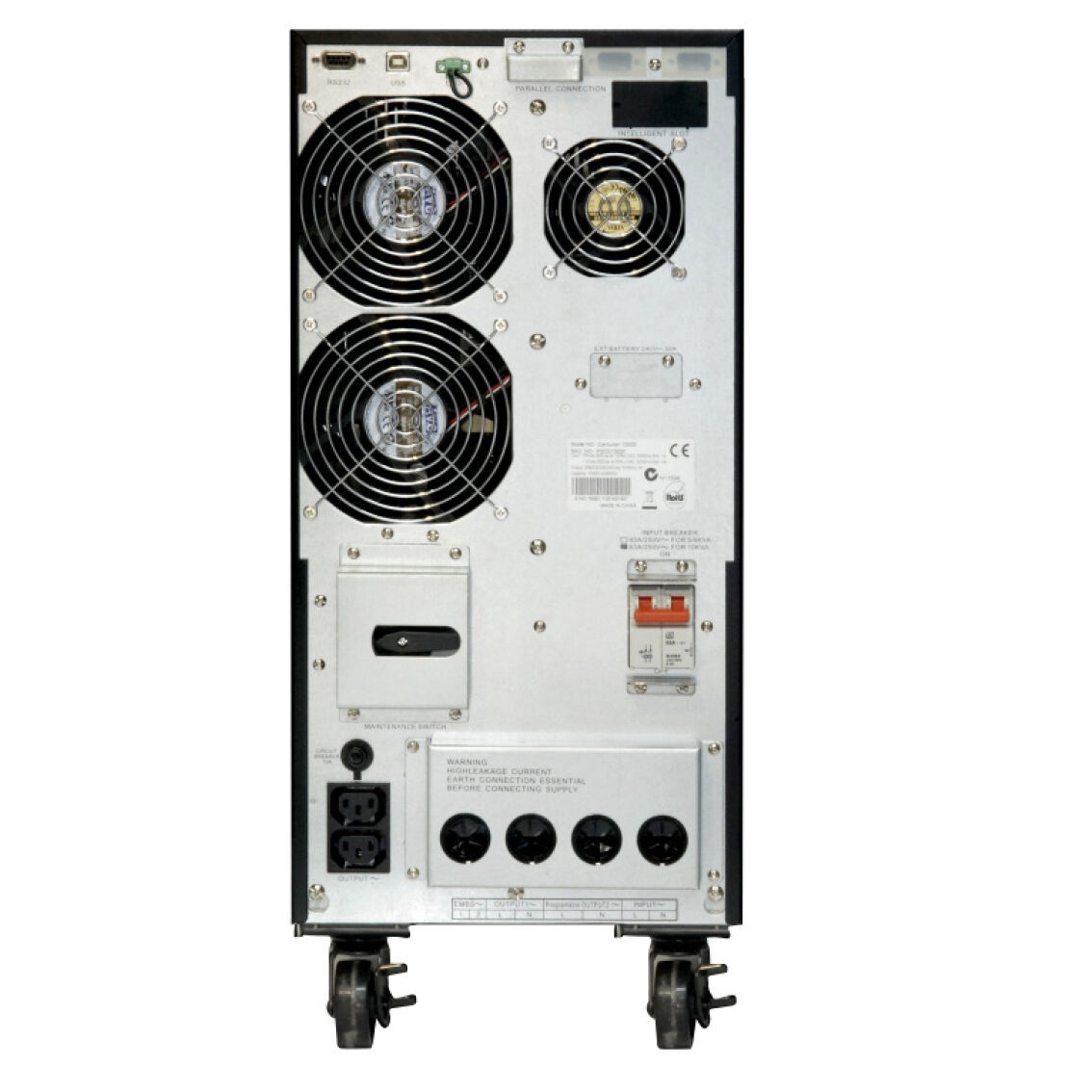

| Australian Outlets - UPS & Surge Protection | Hard wired terminal input / output |
| Battery Type & Number | 12V*9AH(x20) |
| Typical Recharge Time | 7 hours recover to 90% capacity |
| Full Protection | 1080 Joules / 30000 Amps |
| Interface | USB and RS232 as standard. Intelligent slot for PSSNMPV4 or PSAS400 dry contact or PSMBUS |
| Software | Power Shield Netguard?® Software - supports Windows based operating Systems, Linux, Unix & Mac |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LCD Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indica |
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
| Dimension L x W x H (mm) | 592 x 250 x 576 |
| Net Weight (kgs) | 75 |
| Temperature | 0 - 40?°C |
| Humidity | 20 - 95% (RH non-condensing) |
| Noise Level | Less than 55dB @ 1metre |
| Safety/EMC | EN62040 - 1 - 1 2003, IEC60950 - 1 - 1 |
| RoHS | Directive 2001 / 65 / EU |
| Warranty | 2 Year |
| SKU | PSCE6000 |
| Brand | PowerShield |
| Shipping Weight | 90.0000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.700m |
| Shipping Length | 0.380m |
| Shipping Cubic | 0.186200000m3 |
Manufacturer Warranty: 24 Months Limited Warranty
