UPS Systems OL10KERTHD

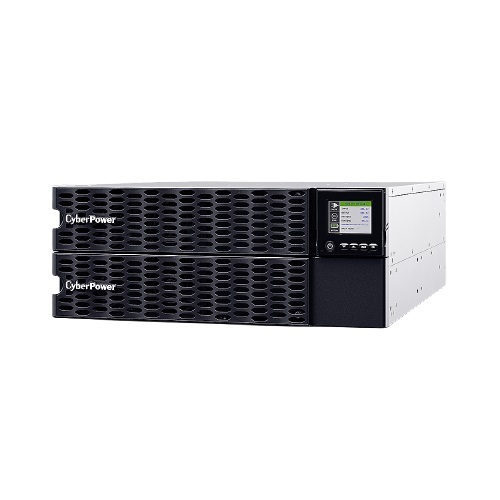

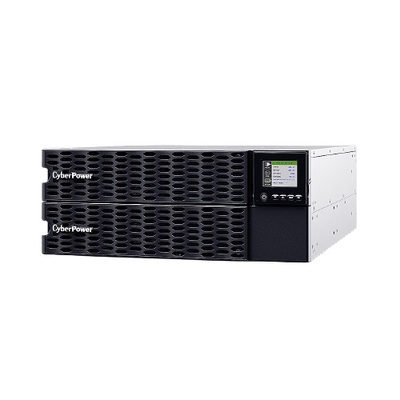

Name: CyberPower OL10KERTHD 10000VA/W 4U Rack Tower UPS
Brand: CYBERPOWER
SKU: OL10KERTHD
Price: 8119 AUD
Availability: InStock

10000

Watts

10000

Output Voltage ( Vac )

200 ± 2%208 ± 2%220 ± 2%230 ± 2%240 ± 2%

Half Load Runtime ( min )

8.3

Outlets

IEC C19 x 4IEC C13 x 6Hardwire Terminal Block x 1

ECO Mode

Pure Sine Wave Output

Color LCD Panel

Hot-swappable Batteries

Overview

CyberPower OL10KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

Features

Online (Double Conversion) UPS Topology
High Density Design
High Output Power Factor
Tiltable LCD Panel
Surge and Spike Protection
Controllable Outlet Groups
Battery Management Technology
Extended Battery Module (EBM)
Emergency Power Off (EPO) Port
PowerPanel Management Software
ECO Mode
Color LCD Panel
Quick Charging Technology
Automatically rotatable LCD
Critical/Non-critical Load Outlets
Generator Compatible
Hot-swappable Batteries
Smart Battery Management (SBM)
SNMP/HTTP Remote Management Capability

What's in the Box

(OL10KERTHD)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

High Density Design

The high-capacity UPS provides reliable and high-quality battery backup in a compact design, significantly optimizing space in a rack enclosure.

Color LCD Panel

The color LCD panel is designed with intuitive and graphical user-interface, allowing users to monitor power system and configure settings with ease.

Tiltable LCD Panel

The LCD panel can be tilted upward for easy viewing, which enables users to see clearly when the product is placed in a lower position.

Automatic LCD Screen Rotation

The LCD will automatically rotate when the product is positioned as tower or rack, ensuring proper viewing orientation for users to monitor the system.

High Output Power Factor

The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. For Selected Models Only

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Critical/Non-critical Load Outlets

Users can configure critical/non-critical load (CL/NCL) settings through the software. When battery power is insufficient during a power outage, the NCL outlets can be cut off to preserve power to extend the runtime for critical devices.

Generator Compatible

Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.

Quick Charging Technology

With quick charging technology, the UPS can achieve 90% battery level in only 4 hours. When its battery is fully charged, it will stop charging automatically to prevent overcharging, thus extending battery life.

Battery Management Technology

The patented Battery Management Technology can equalize the voltage of each individual battery, getting the most out of it. This technology can also detect Extended Battery Module (EBM) information, such as voltage and quantity, providing comprehensive battery status for users.

Hot-swappable Batteries

Batteries can be safely replaced without shutting down the UPS or connected equipment, ensuring uninterrupted operation. Please read the safety precautions in the manual before battery replacement.

Smart Battery Management

The UPS adopts Smart Battery Management (SBM) technology to manage the battery charging process by using a 3-cycle approach and temperature compensation, which efficiently extends the battery lifespan.

Extended Battery Module with Built-in Charger

With the built-in charger design, the extended battery module (EBM) can be charged directly from utility without being charged by UPS, achieving constant charging time when charging multiple EBMs.

Emergency Power Off

The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots.

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase

Form FactorRackmount, Tower

UPS TopologyOnline Double Conversion

Energy Saving TechnologyECO Mode Efficiency > 98%

Active PFC CompatibilityYes

Input

Generator CompatibilityYes

Nominal Input Voltage ( Vac )200 ± 2%
208 ± 2%
220 ± 2%
230 ± 2%
240 ± 2%

Input Voltage Range ( Vac )200 ~ 240

Adjustable Voltage Range ( Vac )0~25% Load for 120 ~ 139 Vac
0~50% Load for 140 ~ 159 Vac
0~75% Load for 160 ~ 179 Vac
0~100% Load for 180 ~ 280 Vac

Input Frequency ( Hz )50 ± 10
60 ± 10

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )54

Input Power Factor0.99

Input Connector TypeHardwire Terminal Block

Output

Capacity (VA)10000

Capacity (Watts)10000

On Battery WaveformPure Sine Wave

On Battery Voltage(s) ( Vac )200 ± 2 %
208 ± 2 %
220 ± 2 %
230 ± 2 %
240 ± 2 %

Output Voltage SettingConfigurable

On Battery Frequency ( Hz )50 ± 0.5%
60 ± 0.5%

Output Frequency SettingConfigurable

Power Factor1

ECO Mode Voltage Tolerance± 10 %
± 15 %

Overload ProtectionInternal Current Limiting, Circuit Breaker

Overload Protection (Line Mode)105~125% Load for 1 min, 125~150% Load for 10 sec

Overload Protection (Battery Mode)105~130% Load for 10 sec, 130~150% Load for 2 sec

Overload Protection (Bypass Mode)Circuit Breaker

Crest Factor3 : 1

Harmonic Distortion (Linear Load)THD＜3%

Harmonic Distortion (Non-linear Load)THD＜5%

Internal BypassAutomatic Bypass, Manual Bypass

Outlet(s) - Total11

Outlet TypeIEC C19 x 4

IEC C13 x 6

Hardwire Terminal Block x 1

Outlet(s) - Battery & Surge Protected11

Outlet(s) - Critical Load (CL)1

Outlet(s) - Non-critical Load (NCL)10

Typical Transfer Time ( ms )0

Battery

Runtime at Half Load ( min )8.3

Runtime at Full Load ( min )2.4

Typical Recharge Time ( Hours )4

Start On BatteryYes

Smart Battery Management (SBM)Yes

Built-in Battery Management ModuleYes

User-replaceableYes - Qualified Personnel Only

Hot-swappableYes

Battery Cartridge (RBP)RBP0159

Battery Cartridge (RBP) Quantity ( pcs )2

Battery Quantity (Each RBP) ( pcs )8

Battery Voltage (Each RBP) ( V )192

Compatible Extended Battery Module (EBM)BPE192VL2U01 (Built-in Charger)

Max. EBM Quantity ( pcs )10

Surge Protection & Filtering

Surge Suppression ( Joules )2430

EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes

LCD TypesColor LCD

LCD OrientationRotatable LCD – Automatic, Rotatable LCD – via Setting

Tiltable LCD Panel18°

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language

LED IndicatorsPower On

HID Compliant USB Port(s)1

Serial PortCombo (RS232 + Dry Contact)

Emergency Power Off (EPO) PortYes

Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )USB Cable x1, Serial Cable x1

Power Management SoftwarePowerPanel Business (Recommended)

SNMP/HTTP Remote MonitoringYes - RMCARD205 included

PowerPanel Cloud ServiceYes - 90 Days Free Trial with PowerPanel Personal/Business
