UPS Systems VP1200ELCD

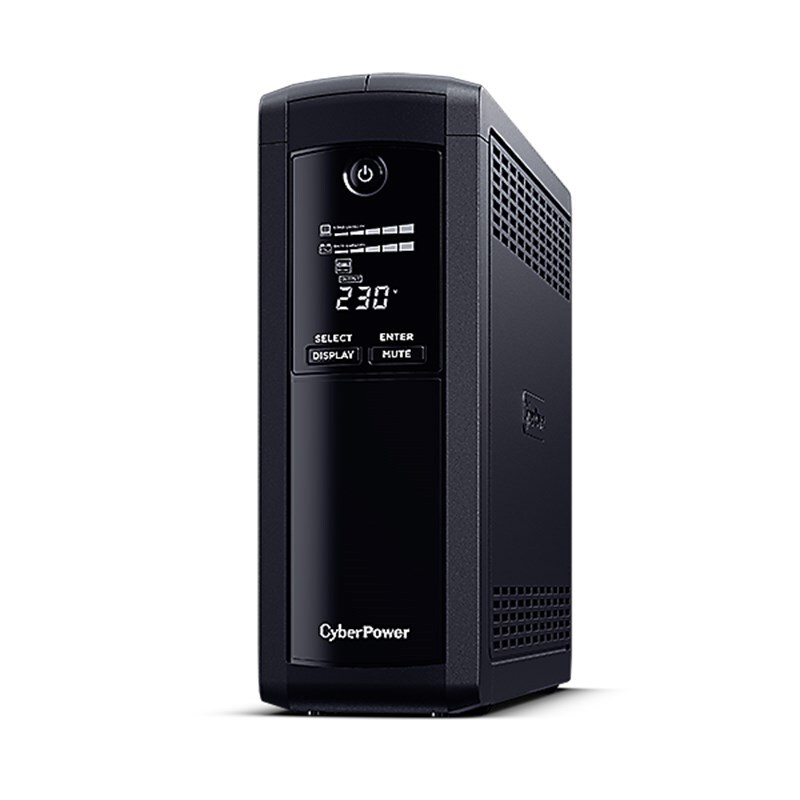

Name: CyberPower VP1200ELCD Value Pro 1200VA / 720W Sine Wave UPS
Brand: CYBERPOWER
SKU: VP1200ELCD
Price: 241 AUD
Availability: InStock

1200

Watts

720

Output Voltage ( Vac )

230 ± 10%

Half Load Runtime ( min )

Outlets

AU x 4

Energy Saving Technology

Automatic Voltage Regulation (AVR)

LCD Status Display

High-speed Ethernet Data Transmission

Overview

CyberPower VP1200ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

Features

Line-interactive UPS Topology
Generator Compatible
Automatic Voltage Regulation (AVR)
High-speed Ethernet Data Transmission
Surge and Spike Protection
PowerPanel Management Software
Energy Saving Technology
Simulated Sine Wave Output
LCD Status Display
USB Connectivity Port
Serial Connectivity Port

What's in the Box

VP1200ELCD UPS
USB Cable
User's Manual
Product Registration Card

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(VP1200ELCD)

Energy Saving Technology

The UPS adopts CyberPower's patented GreenPower UPS™ technology to enhance UPS operating efficiency, reduce heat generation, consume less power and save more energy costs than conventional UPS models.

Automatic Voltage Regulation (AVR)

The UPS has built-in Automatic Voltage Regulation (AVR) function that keeps voltages at a safe level when incoming utility power fluctuates, thus providing consistent and reliable power to connected devices.

Multifunction LCD Readout

The LCD readout displays clear system information, such as power status, battery status, load status and more. It also features a user-friendly and intuitive interface, allowing users to easily manage and monitor the entire system.

Surge-protected Outlets

The UPS outlets absorb surges and spikes caused by thunder and lightning, hence providing complete protection for equipment and devices.

Data Line Protection with High-speed Transmission

The UPS provides data line protection to absorb surges and spikes, while supporting Ethernet data transmission speed up to 1Gbps for efficient data transfer.

Configurable Alarm

Configurable alarm immediately notifies users of unexpected issues, allowing users to resolve problems at their earliest convenience. Users can also switch the audible alarm on or off during battery mode to avoid unnecessary disturbances.

Generator Compatible

Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.

PowerPanel Personal Software

The PowerPanel Management Software allows UPS management and PC graceful shutdowns by connecting the UPS to a computer through a USB or serial port. This software supports easy UPS status monitoring, event logging, and power settings to protect connected devices. Recommended Software

PowerPanel Cloud Solution

The solution offers a convenient cloud-based management which allows users to access and monitor the UPS systems through a secure web portal or mobile app anytime, anywhere. Free Trial Available

General

PhaseSingle Phase

Form FactorTower

UPS TopologyLine-interactive

Energy Saving TechnologyGreenPower UPS™ Bypass Technology

Input

Generator CompatibilityYes

Nominal Input Voltage ( Vac )230 ± 10%

Input Voltage Range ( Vac )167 ~ 295

Input Frequency ( Hz )50 ± 5
60 ± 5

Input Frequency DetectionAuto-sensing

Rated Input Current ( A )5.2

Input Connector TypeIEC C14

Detachable Power Cord Plug TypeAU x 1

Power Cord Length (ft.)5

Power Cord Length (m.)1.5

Output

Capacity (VA)1200

Capacity (Watts)720

On Battery WaveformSimulated Sine Wave

On Battery Voltage(s) ( Vac )230 ± 10 %

On Battery Frequency ( Hz )50 ± 1%
60 ± 1%

Automatic Voltage Regulation (AVR)Single Boost, Single Buck

Overload ProtectionCircuit Breaker

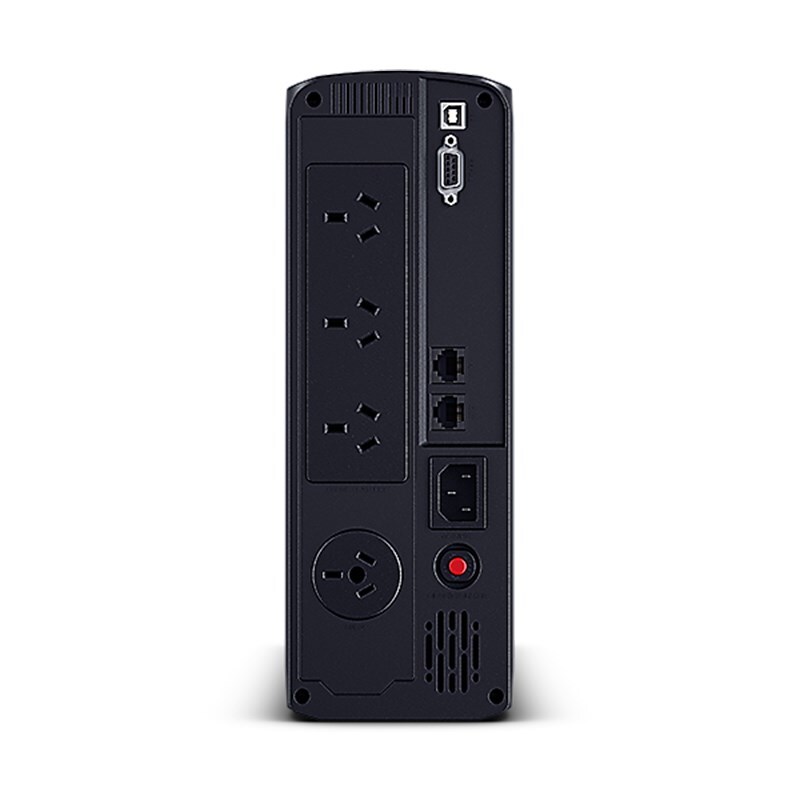

Outlet(s) - Total4

Outlet TypeAU x 4

Outlet(s) - Battery & Surge Protected3

Outlet(s) - Surge-Only Protected1

Typical Transfer Time ( ms )4

Battery

Runtime at Half Load ( min )12

Runtime at Full Load ( min )4

Typical Recharge Time ( Hours )8

Start On BatteryYes

User-replaceableNo

Surge Protection & Filtering

Surge Suppression ( Joules )450

EMI/RFI FiltrationYes

Phone/Network Protection RJ11/RJ45 (Combo)1-in, 1-out

Management & Communications

LCD PanelYes

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information

LCD Setting & ControlMode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning

LED IndicatorsPower On

HID Compliant USB Port(s)1

Audible AlarmsBattery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )USB Cable x1

Ethernet Data Transmission SpeedUp to 1Gbps

Power Management SoftwarePowerPanel Personal (Recommended)

Physical

Enclosure ConstructionPlastic

ColorBlack

Physical Size - UPS Module

Dimensions (WxHxD) (in.)3.9 x 11 x 14

Dimensions (WxHxD) (mm.)100 x 281 x 355

Weight (lbs.)21.2

Weight (kg.)9.62

Shipping Dimensions

Dimensions (WxHxD) (in.)16.42 x 14.45 x 5.98

Dimensions (WxHxD) (mm.)417 x 367 x 152

Weight (lbs.)22.91

Weight (kg.)10.39

Environmental

Operating Temperature (°F)32 ~ 104

Operating Temperature (°C)0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )0 ~ 90

Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)-4 ~ 122

Storage Temperature (°C)-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )0 ~ 90

Storage Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )30.7

Audible Noise at 1.0M from Surface of Unit ( dBA )50

Certifications

CertificationsCE, RCM

RoHSYes

WARRANTY

Product Warranty Period ( Year )2

Battery Warranty Period ( Year )2

Connected Equipment Guarantee40,000 AUD ; 2 years

SKU	VP1200ELCD
Barcode #	4712856274653
Brand	CYBERPOWER
Shipping Weight	10.2000kg
Shipping Width	0.370m
Shipping Height	0.170m
Shipping Length	0.420m
