Eaton SKU 9E1000IAU

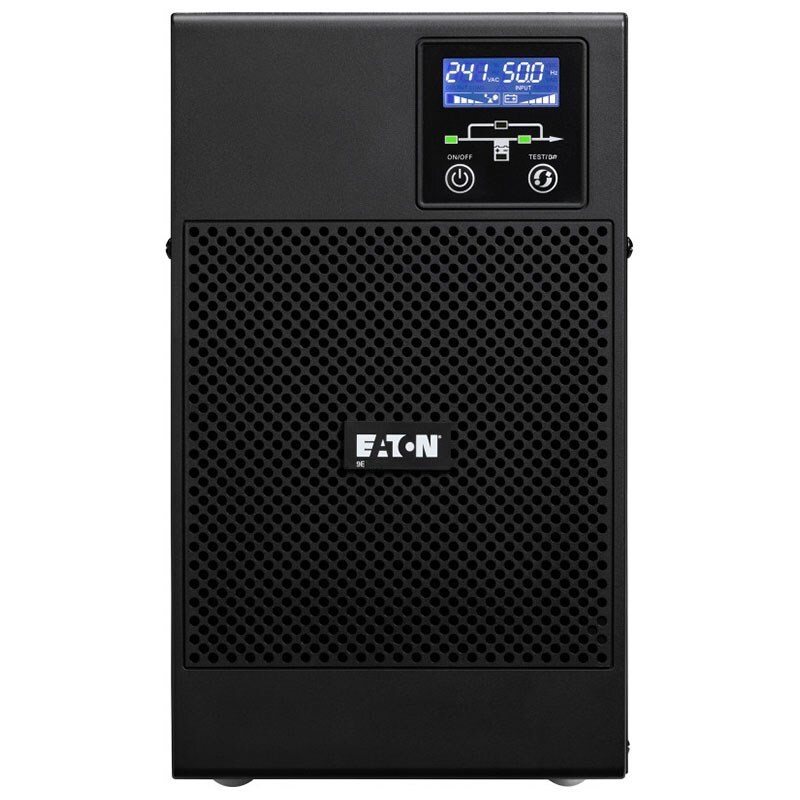

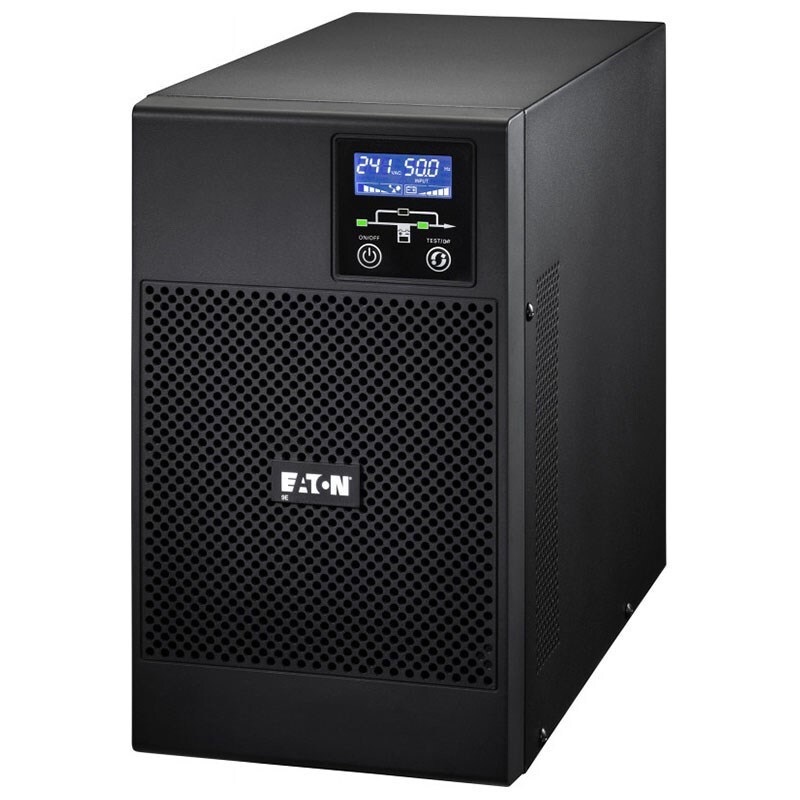

Eaton 9E1000IAU 1000VA/800W Online Double-Conversion UPS

The Eaton 9E1000IAU 9E is an online double-conversion, single-phase tower UPS identified as 1000VA / 800W in the supplied product name and description.

The source lists one IEC C14 10A input, 4 x IEC C13 10A outputs, 4070Hz input, autosensing 50/60Hz output, RS-232 serial, USB and a communication-card slot.

1000VA / 800WOnline double conversionTower1-year warrantyDeviceDeal authorised Eaton reseller

Product overview

Online double conversion

The source classifies this model as a double-conversion online UPS.

Power connections

The supplied description lists one IEC C14 10A input and 4 x IEC C13 10A outputs.

Communication options

RS-232 serial, USB and a communication-card slot are listed in the supplied description.

Source review: Confirm the connected load, runtime and communication-card requirements for the intended installation.

Frequently asked questions

What capacity is listed for the Eaton 9E1000IAU?

The supplied capacity is 1000VA / 800W.

Which output receptacles are listed?

The description lists 4 x IEC C13 10A outputs.

Which communication interfaces are listed?

The source lists RS-232 serial, USB and a communication-card slot.

What warranty is supplied?

The source lists a one-year Eaton manufacturer warranty.

(9E1000IAU)

Features

Eaton 9E1000IAU 1000VA/800W Online Double-Conversion UPS

Power protection

Online double-conversion topology
Single phase
Description rating: 1000VA / 800W
Structured rating: 1000VA / 800W

Connections and frequency

1 x IEC C14 10A input
4 x IEC C13 10A outputs
4070Hz input range
50/60Hz autosensing output

Management and installation

RS-232 serial
USB
Communication-card slot
Tower form factor
One-year manufacturer warranty

Confirm runtime and communication-card requirements for the target load.

Technical specifications

Eaton 9E1000IAU 1000VA/800W Online Double-Conversion UPS

Product details
Brand	Eaton
Model / SKU	9E1000IAU
Series	9E
Product type	Double-conversion online UPS
Phase	Single phase
Form factor	Tower
Product-name / description rating	1000VA / 800W
Structured load-capacity field	1000VA / 800W
Power and connections
Input	1 x IEC C14 10A
Outputs	4 x IEC C13 10A outputs
Nominal-voltage options stated	208V; 220V; 230V; 240V for 03kVA
Input frequency range	4070Hz
Output frequency	50/60Hz autosensing
Communication
RS-232 serial	Yes
USB	Yes
Communication-card slot	Yes
Physical properties
Height	228mm
Width	144mm
Depth	356mm
Approximate weight	9.50kg

SKU	9E1000IAU
Barcode #	786689166601
Brand	EATON
Shipping Weight	10.7000kg
Shipping Width	0.024m
Shipping Height	0.043m
Shipping Length	0.032m

Warranty information

Eaton 9E1000IAU 1000VA/800W Online Double-Conversion UPS

1-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a one-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
