Critical Power, Cooling and Racks > Uninterruptible Power Supply (UPS) > Computer and Peripheral > Back-UPS Pro > BR900MI

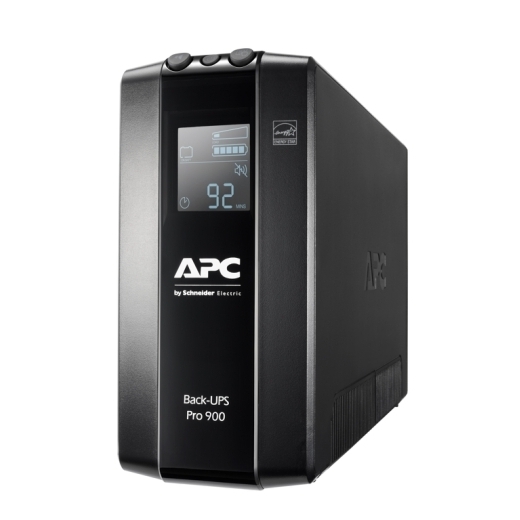

APC Back-UPS Pro, Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery

SKU: BR900MI | Brand: APC Brand

Key Features

<a>Replacement battery (1)</a> is available
AVR corrects voltage variations to provide reliable power
Data line protection ensures complete protection of your equipment from surges

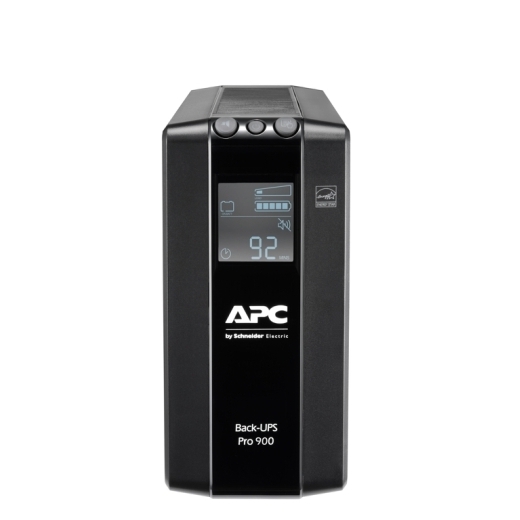

LCD display provides key UPS status at a glance with load and battery bar graphs
Audible alarms provide notification of changing utility power and UPS power conditions

Description

This product is part of the Back-UPS Pro range.
This 900VA UPS has 6 total that provide UPS power backup and surge protection.
It features a built-in AVR and a LCD interface with audible alarms.
Its runtime at 100 Watts is 42 minutes.
Its dimensions are 19 x 9.1 x 31 cm and 7.1 kg.
The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

Product Images

Downloads & Documents

Compatible Products & Accessories

Replacement battery

APCRBC164

APC Replacement Battery Cartridge #164 with 2 Year Warranty

(BR900MI)

Specifications - BR900MI

Overview

Lead time

Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Input Connection Type	IEC 60320 C13
Maximum input current	10 A
Switching current capacity	10 A
Input voltage limits	176...294 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Output voltage	230 V AC 1 phase
Rated power in W	540 W
rated power in VA	900 VA

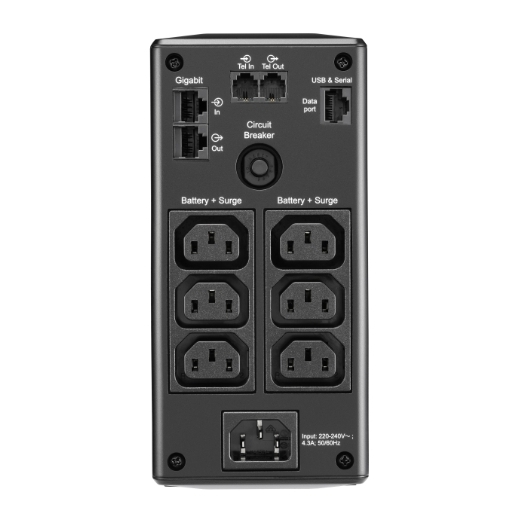

Output connection type	6 IEC 60320 C13
USB Charging Port	None
Maximum configurable power in VA	900 VA
Maximum configurable power in W	540 W
Transfer time	10 ms typical : 12 ms maximum
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Output frequency	50/60 Hz +/- 1 Hz sync to mains

Complementary

Battery capacity	9.4 Ah
Battery type	Lead-acid internal included
Control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity	USB port
Noise suppression	Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Height	190 mm
Width	91 mm
Depth	310 mm
Net weight	7.1 kg
Mounting preference	No preference
Mounting mode	Tower
Two post mountable	0
USB compatible	Yes
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Range of product	Back-UPS Pro
Product or component type	Uninterruptible power supply (UPS)

Environment

Product certifications	A-Tick C-Tick CE EAC RCM TISI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…15240 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %
Acoustic level	45 dBA
Heat dissipation	16.4 Btu/h
Operating altitude	0...10000 ft

Batteries & Runtime

Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery type	Lead-acid battery
Battery voltage	12 V
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	12 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC164
Battery charger power	11 W rated

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	14.500 cm
Package 1 Width	25.500 cm
Package 1 Length	43.000 cm
Package 1 Weight	8.072 kg
Unit Type of Package 2	S04
Number of Units in Package 2	2
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	16.817 kg
Unit Type of Package 3	P12
Number of Units in Package 3	24
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	213.804 kg
SCC14	10731304346941
