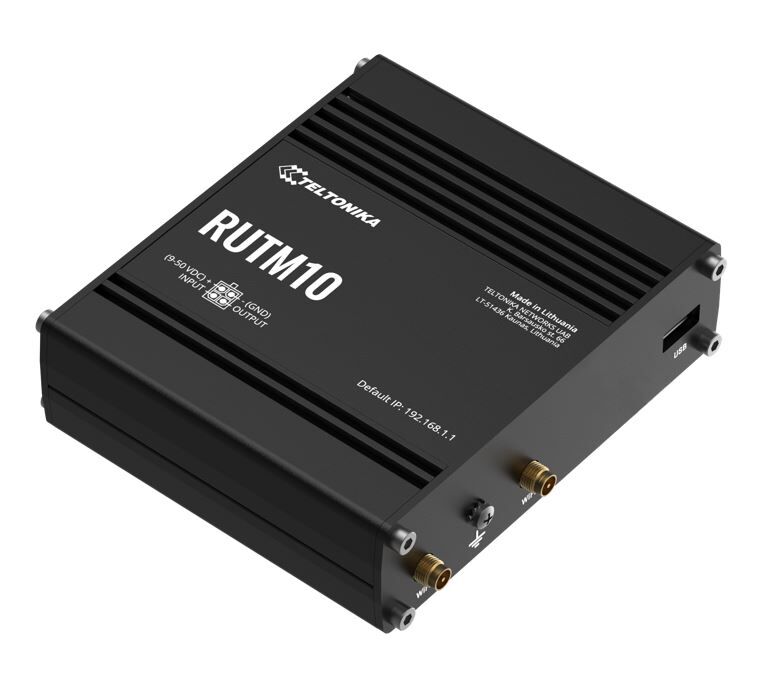

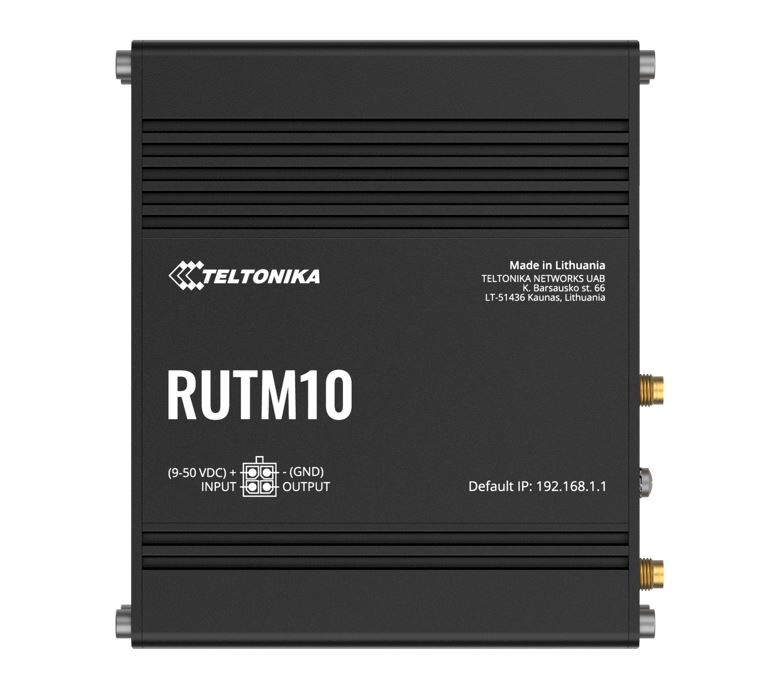

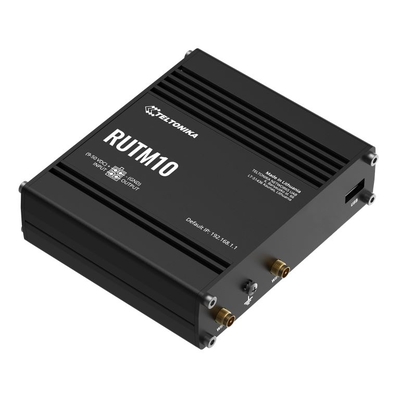

The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router's support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

INTERFACES
4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported

Wi-Fi 5
Dual-band Wi-Fi with mesh and fast-roaming functionalities

VPN
Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale

M2M PROTOCOLS
Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS

(RUTM10)

Wireless

Feature	Specification
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition
Wi-Fi Security	WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA3-SAE, WPA3-EAP, OWE, 802.11w Protected Management Frames (PMF)
SSID/ESSID	ESSID stealth mode
Max Users	Up to 150 simultaneous connections
Wireless Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), radio resource measurement (802.11k)
MAC Filter	Allowlist, blocklist
QR Code Login	Yes
TravelMate	Yes

Ethernet

Feature	Specification
WAN	1 x 10/100/1000 Mbps port, IEEE 802.3, 802.3u, 802.3az standards
LAN	3 x 10/100/1000 Mbps ports, IEEE 802.3, 802.3u, 802.3az

Network

Feature	Specification
Routing	Static, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based
Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, VXLAN
VoIP Passthrough	H.323, SIP-alg NAT helpers
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization
DHCP	Static/Dynamic allocation, DHCP relay/server

VPN

Feature	Specification
OpenVPN	Multiple clients/servers, 27 encryption methods
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods
WireGuard	Client and server support
Other VPNs	GRE, L2TP, PPTP, SSTP, DMVPN, Tinc, Tailscale

Security

Feature	Specification
Authentication	Pre-shared key, X.509 certificates, TACACS+, RADIUS
Attack Prevention	DDoS prevention, Port scan prevention
VLAN	Port & tag-based VLAN separation
Web Filter	Blacklist/Whitelist support

Hardware

Feature	Specification
CPU	MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM	256MB DDR3
Flash Storage	16MB NOR + 256MB NAND
USB	1 x USB-A (USB 2.0), supports external HDD, flash drives, printers
Input/Output	1 x Digital Input, 1 x Digital Output

Power

Feature	Specification
Power Connector	4-pin industrial DC
Input Voltage	9 – 50 VDC, Reverse polarity & surge protection
PoE (Passive)	9 - 50 VDC, Mode B (not IEEE 802.3af/at/bt compatible)
Power Consumption	Idle: <3.51W, Max: <8.65W

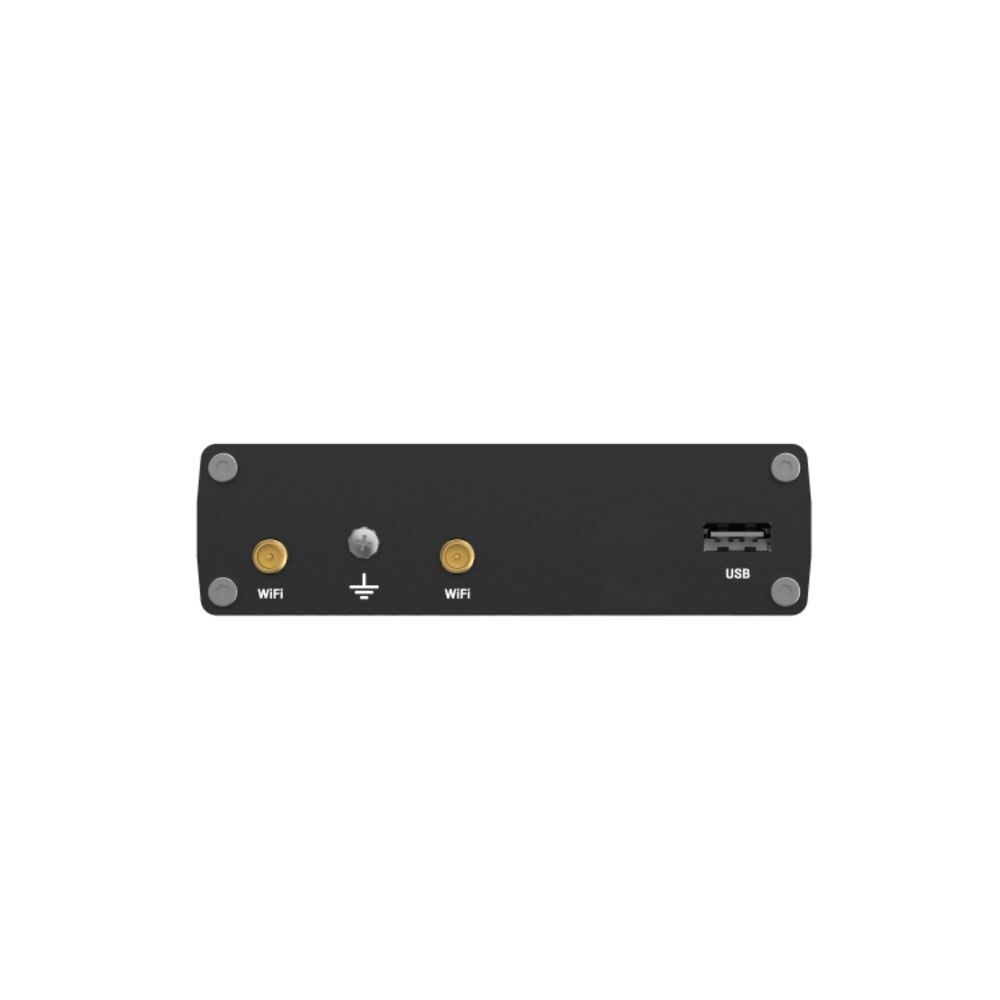

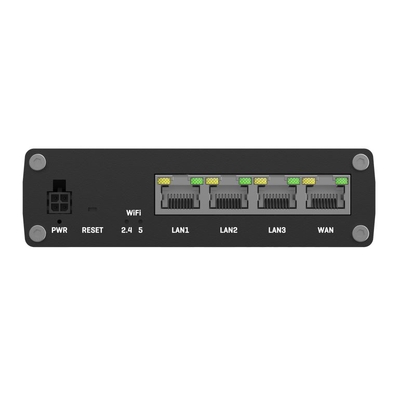

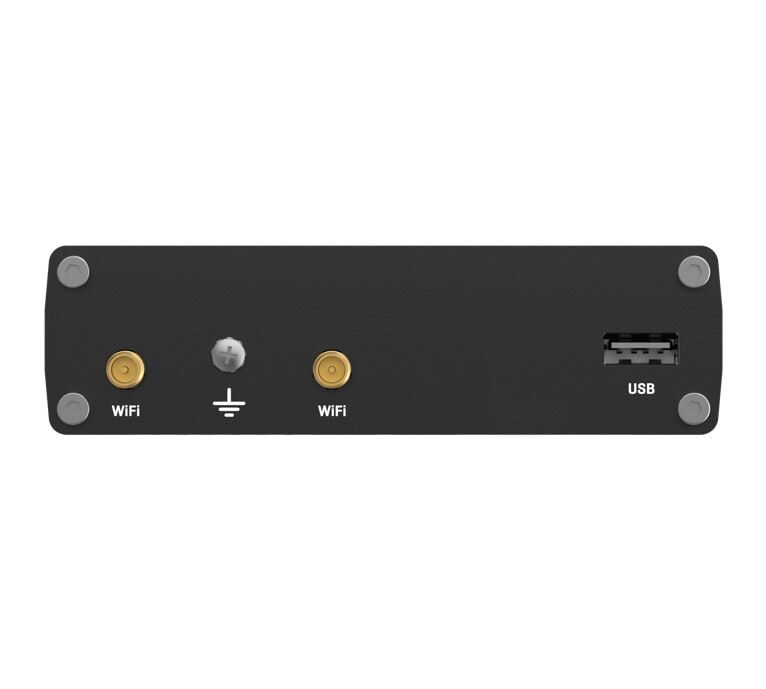

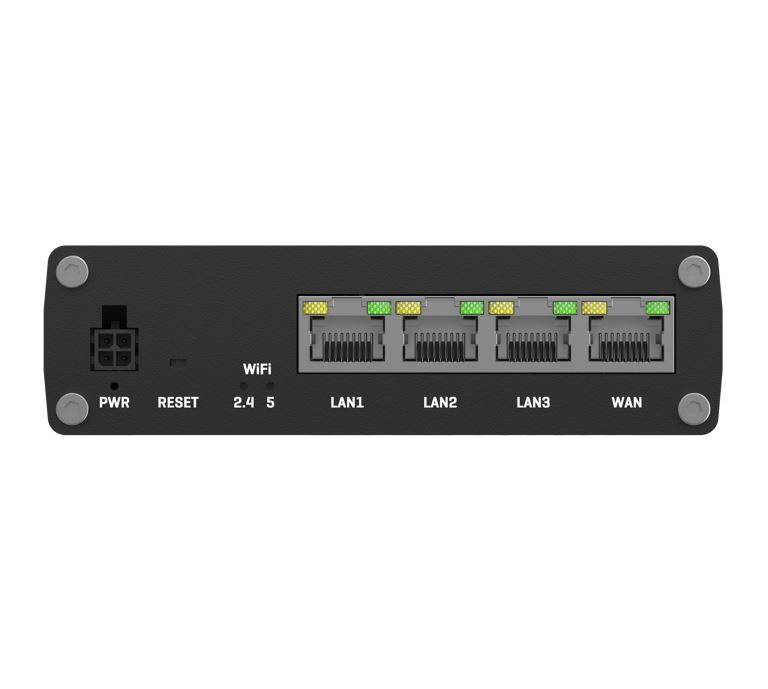

Physical Interfaces

Feature	Specification
Ethernet Ports	4 x RJ45 (10/100/1000 Mbps)
Antennas	2 x RP-SMA for Wi-Fi
Reset Button	Yes
Status LEDs	8 x LAN, 1 x Power, 2 x Wi-Fi
Grounding Screw	Yes

Physical Specifications

Feature	Specification
Casing Material	Anodized aluminum
Dimensions (W x H x D)	115 x 32.2 x 95.2 mm
Weight	359 g
Mounting	DIN rail, wall, flat surface (kit required)

Environmental

Feature	Specification
Operating Temp	-40°C to 75°C
Operating Humidity	10% to 90% non-condensing
Ingress Protection	IP30

Certifications

Feature	Specification
Regulatory	CE, UKCA, RCM, CB
EMC Standards	EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
RF Standards	EN 301 908, EN 300 328, EN 301 893, EN 300 440
Safety Standards	EN IEC 62368-1, EN IEC 62311
