BE19000 Tri-Band Wi-Fi 7 Router

Redefining Wi-Fi Routers: With powerful Wi-Fi 7 performance, lightning-fast wired connections, brand-new design.
Lightning-Fast 19 Gbps Tri-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads.^†‡
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
Dual 10 G Ports: 1× 10 Gbps WAN port + 1× 10 Gbps LAN port + 4× 1 Gbps LAN ports + 2× USB 3.0 ports, for faster large file transfers and downloads, seamless streaming, immersive gaming, and more.
Maximised Coverage: Proprietary Wi-Fi optimisation and 10× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
Great Compatibility: Supports all Wi-Fi generations and devices*** and all internet

(Archer-BE805)

WIRELESS
WiFi Speeds	BE19000 • 6 GHz: 11520 Mbps (802.11be) • 5 GHz: 5760 Mbps (802.11be) • 2.4 GHz: 1376 Mbps (802.11be)
Working Modes	• Router Mode • Access Point Mode
Advanced Features	• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network

SECURITY
Network Security	• SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	• 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server
VPN Client	• Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client
WiFi Encryption	• WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x)

HARDWARE

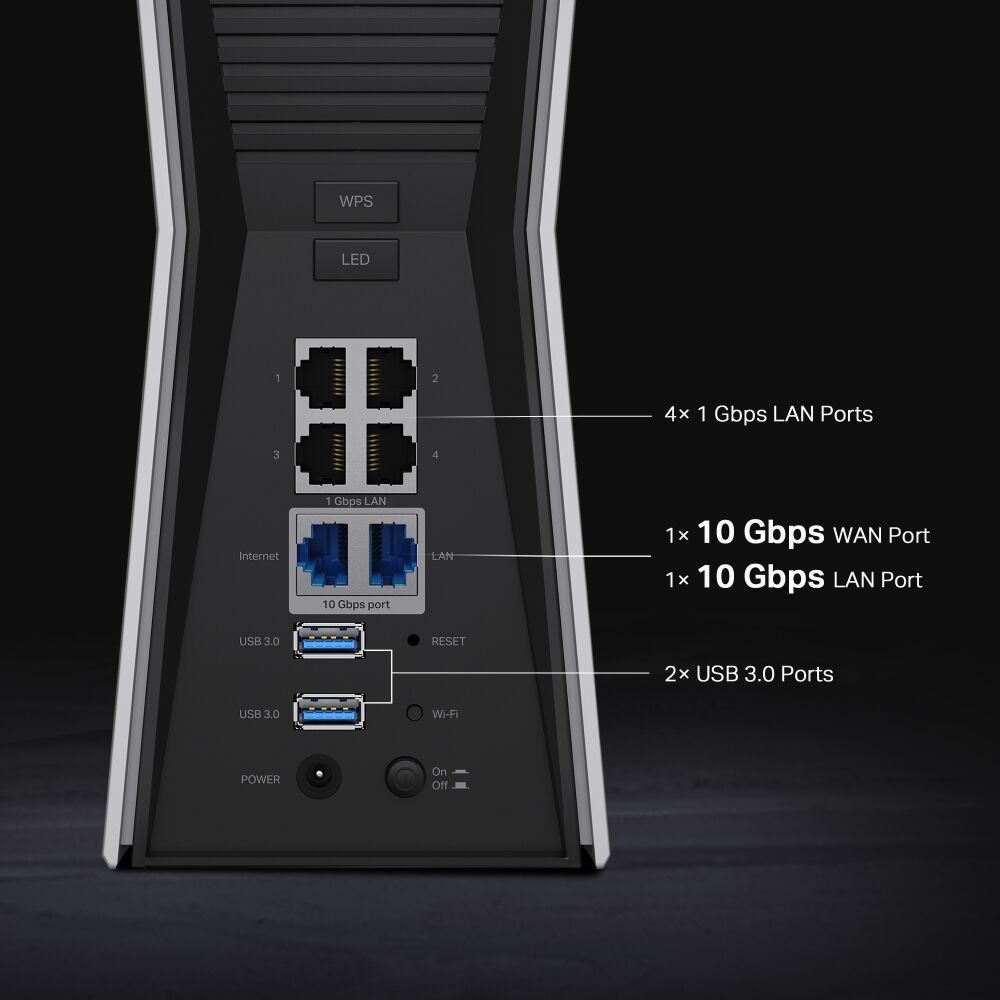

Ethernet Ports	• 1× 10 Gbps WAN • 1× 10 Gbps LAN • 4× 1 Gbps LAN
USB Support	2× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server

SOFTWARE
Protocols	• IPv4 • IPv6
Service Kit	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Type	• Dynamic IP • Static IP • PPPoE • PPTP • L2TP
Cloud Service	• Auto Firmware Upgrade • TP-Link ID • DDNS
NAT Forwarding	• Port Forwarding • Port Triggering • DMZ • UPnP
IPTV	• IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN
DHCP	• Address Reservation • DHCP Client List • Server
DDNS	• TP-Link • NO-IP • DynDNS
Management Features	• Tether App • Webpage

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

PHYSICAL
Dimensions (W×D×H)	4.1 × 11.7 × 10.4 in (104.3 × 297 × 264.5 mm)
Package Content	Wi-Fi 7 Router Archer BE805 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
