NTP001
NTP SERVER

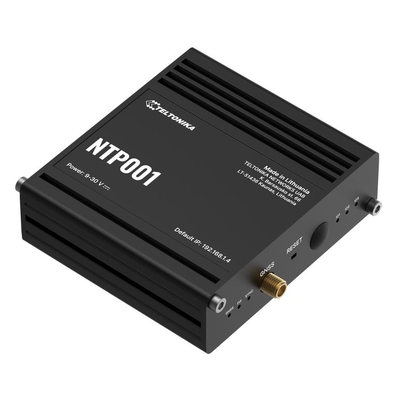

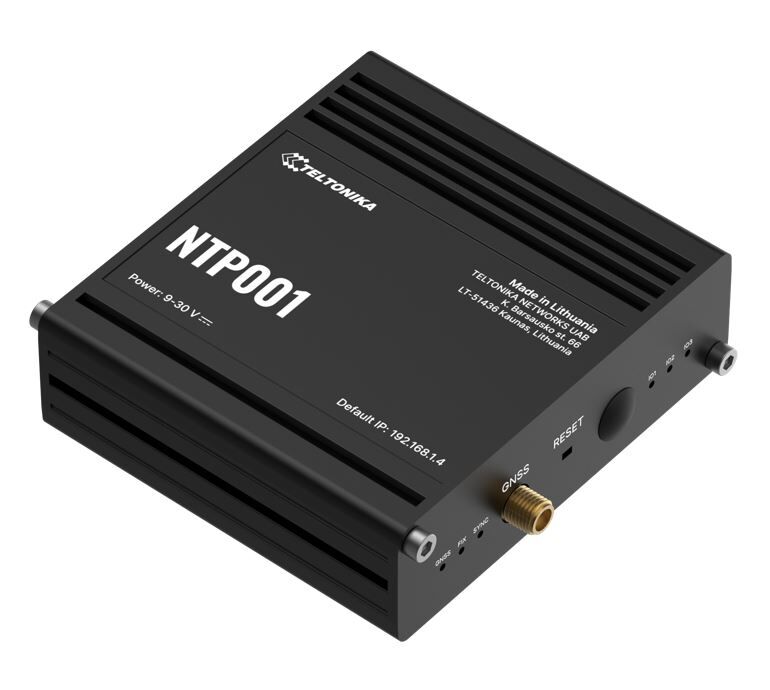

The NTP001 is a stratum-1 Teltonika NTP server designed for synchronizing accurate, UTC-traceable time in both public and private networks, without the need of Internet access. Utilising its GNSS capabilities, this low-cost NTP server maintains precise, UTC-traceable time. Plug-and-play functionality, a wide variety of interfaces including RS232 and RS485, and a robust security profile all make the NTP001 the perfect NTP server for your network.
| NETWORK TIME SYNCHRONIZATION Accurate & low-cost NTP server | MULTIPLE INTERFACES Featuring RJ45, RS232, RS485 & I/Os | SECURITY Authentication, access control & more | PLUG-AND-PLAY Simple installation & configuration at minimum effort |
(NTP001)
| Category | Feature | Description |
|---|---|---|
| Ethernet | LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot | |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices | |
| DDNS | Supported >25 service providers, others can be configured manually | |
| Security | Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only | |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet | |
| 802.1x | Port-based network access control client | |
| NTP | Supported modes | Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485) |
| Daytime Protocol | TCP/UDP | |
| Date over Serial | RS232/RS485 | |
| NTP | NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode | |
| Protocol | NTP Stratum 1 Time Server (NTPv4) | |
| NTP Accuracy | Ethernet NTP ±1ms overall | |
| NTP Performance | >300 NTP requests per second (wire speed) | |
| Synchronization Accuracy | LAN synchronization typically 1–10ms | |
| MODBUS | Supported modes | Server, Client |
| Supported connection types | RTU (RS232, RS485), TCP | |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality | |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII | |
| MQTT Gateway | Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| API | Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com |
| Monitoring & Management | WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| SSH | SSH (v1, v2) | |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection | |
| JSON-RPC | Management API over HTTP/HTTPS | |
| MODBUS | MODBUS TCP status/control | |
| System Characteristics | CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 | |
| FLASH storage | 16 MB, NOR Flash | |
| Firmware / Configuration | WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| Keep settings | Update FW without losing current configuration | |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration | |
| FIRMWARE CUSTOMISATION | Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell (ash), Lua 5.1, C, C++ | |
| Development tools | SDK package with build environment provided | |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs | |
| TIME SYNCHRONIZATION | Acquisition Sensitivity | Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm |
| Time Source | GPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz | |
| Startup | Cold GPS acquisition in <120 seconds | |
| Serial | RS232 | Terminal block connector: TX, RX, RTS, CTS |
| RS485 | Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface) | |
| Input / Output | Input | 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 3 x Digital Output, Open collector output, max output 30 V, 300 mA | |

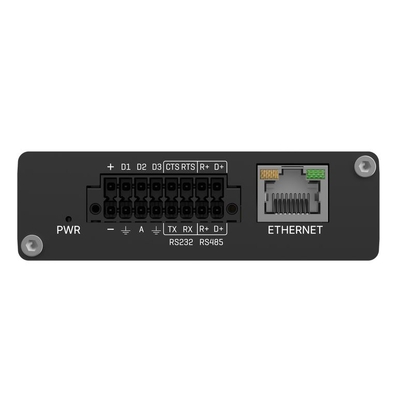

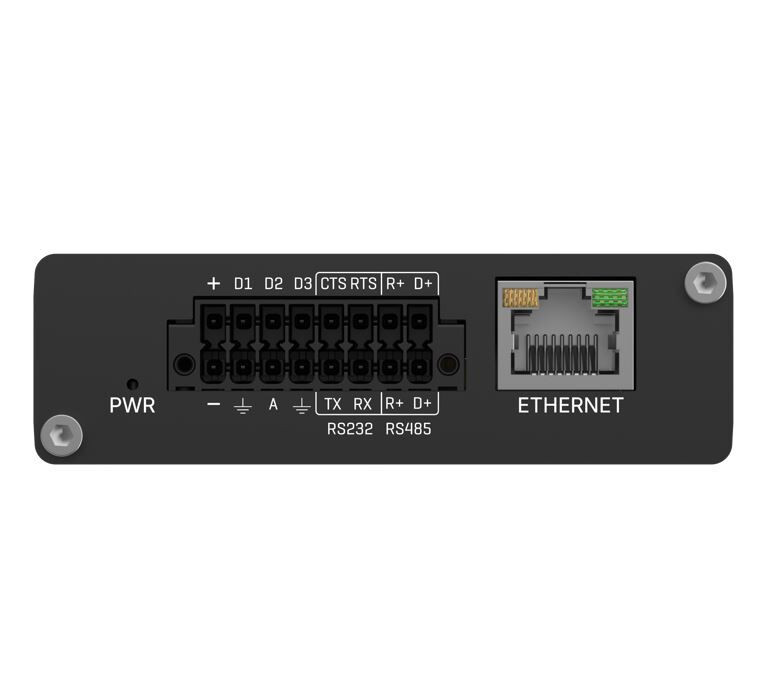

| Power | Connector | 2-pin in 16-pin industrial terminal block |
| Input voltage range | 9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max | |
| Power consumption | Idle: < 2 W, Max: < 3.5 W | |
| Physical Interfaces | Ethernet | 1 x RJ45 ports, 10/100 Mbps |
| I/O’s | 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block | |

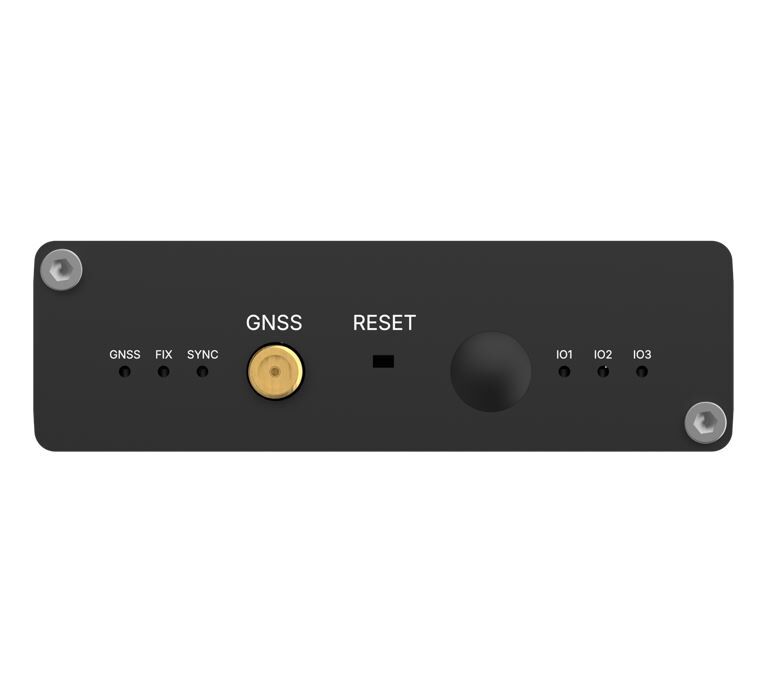

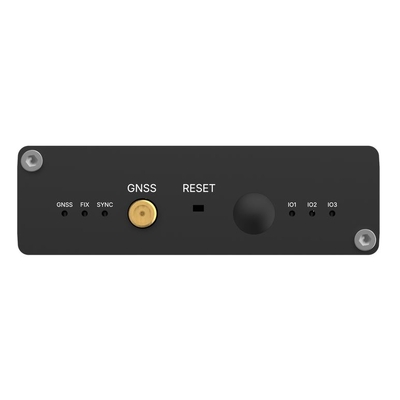

| Status LEDs | 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs | |
| Power | 1 x 16-pin terminal block | |
| Antennas | 1 x SMA for GNSS | |
| RS232 | 4-pin in 16-pin terminal block (TX, RX, RTS, CTS) | |
| RS485 | 4-pin in 16-pin terminal block (D+, D-, R+, R-) | |
| Reset | Reboot/User default reset/Factory reset button | |
| Physical Specification | Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 82.6 x 25 x 83 mm | |
| Weight | 180 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, CB, UCRF, EAC, WEEE |
| SKU | NTP001 |
| Barcode # | 4779051843275 |
| Brand | Teltonika |
| Shipping Weight | 0.0200kg |
Manufacturer Warranty : 2 years Manufacturer Warranty
