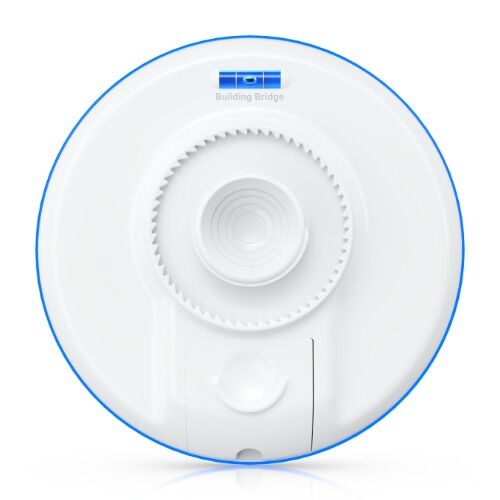

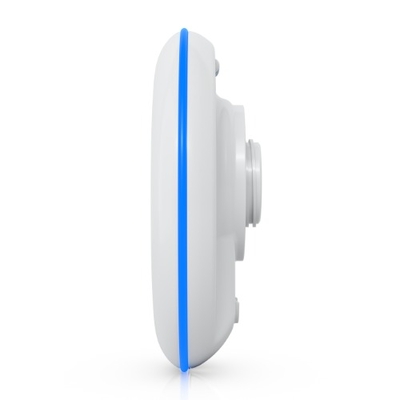

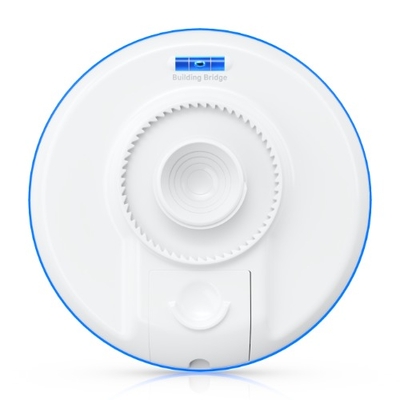

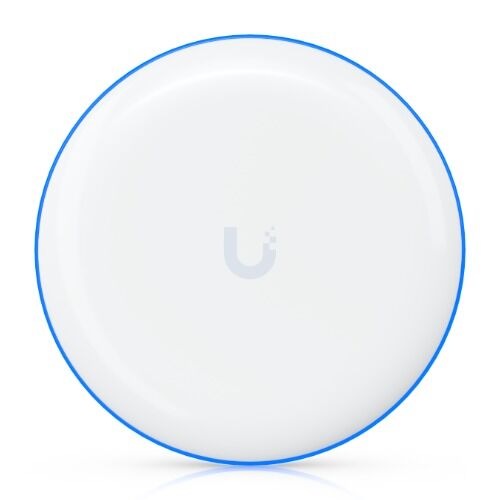

Ubiquiti UBB-Single Building Bridge, 60 GHz Wireless Point-ToPpointBbridge With 5 GHz Backup Radio.
Model # UBB-Single
-
SKU: UBB-Single
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ubiquiti Building Bridge, 60 GHz Wireless Point-ToPpointBbridge With 5 GHz Backup Radio.
Tech Specs: Click Here
Installation Guide: Click Here
Description:
60 GHz wireless point-to-point bridge with a 5 GHz backup radio.
Features:
• 500 m (1,640 ft) maximum range
• 60 GHz & 5 GHz dual-radio redundancy

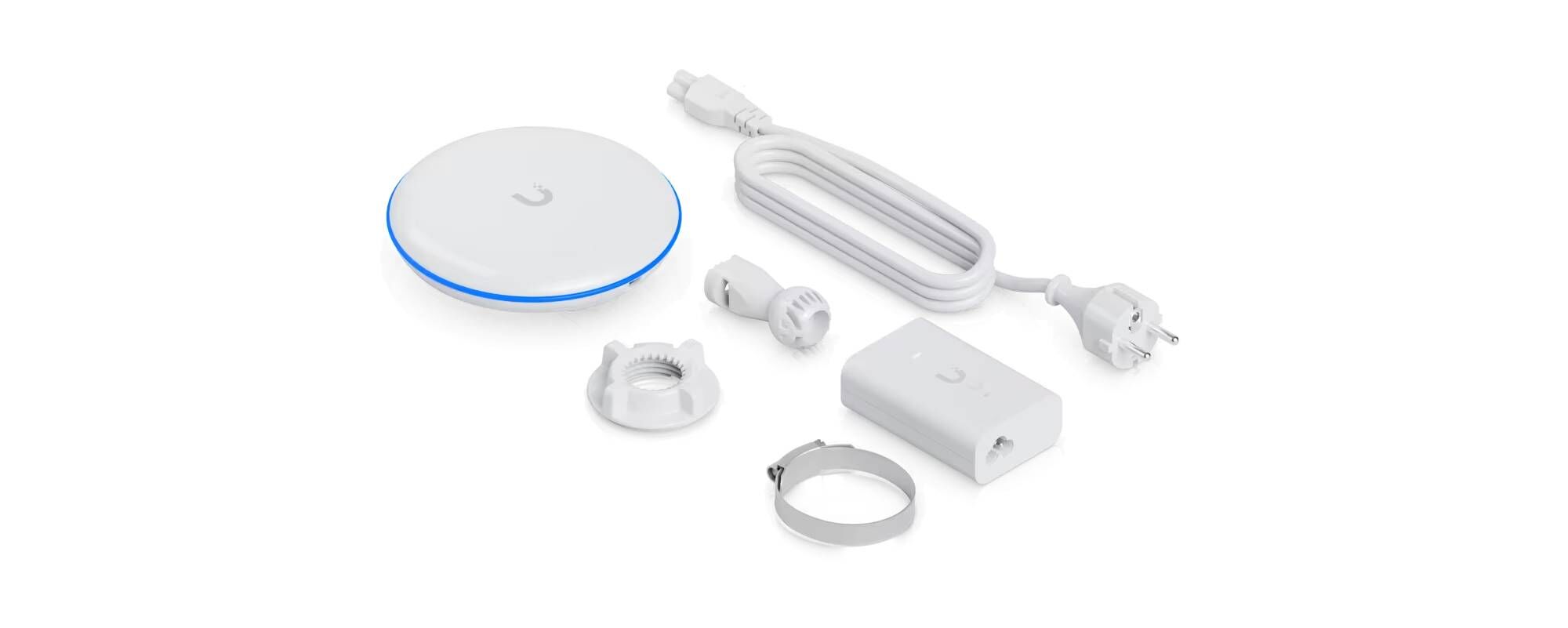

• Includes PoE power adapters
• Built-in LED alignment indicators
(UBB-Single)
Dimensions
⌀140 x 90 mm (⌀5.5 x 3.5")
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
500 m (1,640 ft)
Mounting Locations
Wall, pole
Weatherproofing
IPX6
Power Method
PoE
Performance
MIMO
5 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
60 GHz
1.7 Gbps
5 GHz
866.6 Mbps (BW80)
Antenna Gain
60 GHz
17.2 dBi
5 GHz
10 dBi
2.4 GHz
2 dBi (BLE)
Max. TX Power
60 GHz
19 dBm
5 GHz
25 dBm
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA2 AES
Hardware
Max. Power Consumption
11W
Includes PoE Adapter
✓
Supported Voltage Range
44–57V DC

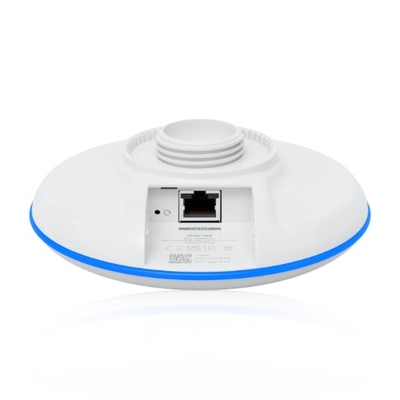

Networking Interface
(1) GbE RJ45 port
Weight
376 g (13.3 oz)
Operating Modes
PtP
Wind Loading
56 N at 200 km/h (12.6 lbf at 125 mph)
Management
Ethernet Bluetooth
Channel Bandwidth
Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure Material
UV-resistant polycarbonate
Button
(1) Factory reset
LEDs
System
R/G/B
Operating Frequency
Main radio (60 GHz): 57 - 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide 5150 - 5850 MHz
Bluetooth (MHz)
Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature
-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
| SKU | UBB-Single |
| Barcode # | 817882029674 |
| Brand | UBIQUITI |
| Shipping Weight | 0.9200kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.110m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.004356000m3 |
Manufacturer Warranty: 1 Year Manufacturer Warranty
