2.4GHz Dual-Stream 500m wireless Bridge,The maximum bridge rate is 300Mbps,Factory-free configuration, without complex alignment,including video recorder side and the camera side,Support Web/Ruiyi APP/MACC Cloud Computing Platform management. Support 12VDC and 12V non-standard PoE power supply methods. Support wall hanging/hoop installation.

Highlight Features

  • RG-EST100-E can easily transmit data from 500m away in real time
  • Factory-free configuration, without complex alignment
  • IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
  • Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
  • Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely

Model Mode Bridging Performance RSSI Recommended Number of Cameras
3 MP 4 to 5 MP 6 to 7 MP 7 to 8 MP
RG-EST100-E PTP
1 x RG-EST100-E + 1 x RG-EST100-E		 60 Mbps/100 meters (HT20)
30 Mbps/500 meters (HT20)		 –58 dBm/100 m
–68 dBm/500 m		 10/100 m
5/500 m		 6/100 m
3/500 m		 3/100 m
1/500 m		 3/100 m
1/500 m

(RG-EST100-E)

Radio Design
2.4 GHz Single-Band Dual-Stream
Transmission Protocol
IEEE 802.11b/g/n
Operating Band
802.11b/g/n: 2.400～2.483GHz
Antenna
Directional antennas, 8 dBi
Polarization
Horizontal: 70°, Vertical: 70°
Bridging Distance
500m (recommended)
Spatial Streams
2x2, MU-MIMO
Memory/Flash
64 MB/8 MB
Maximum Throughput
Up to 300 Mbps at 2.4 GHz
Max. Transmit Power
≤100 mW(20 dBm) (adjustable)
IP Rating
IP55
Lightning Protection
±6 KV(Common Mode)

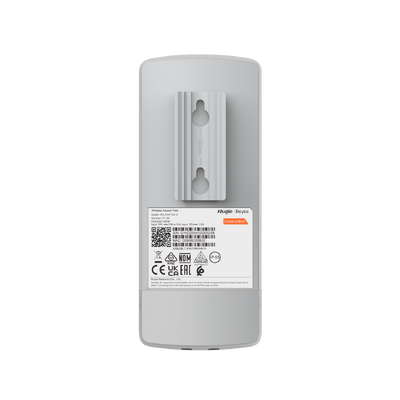

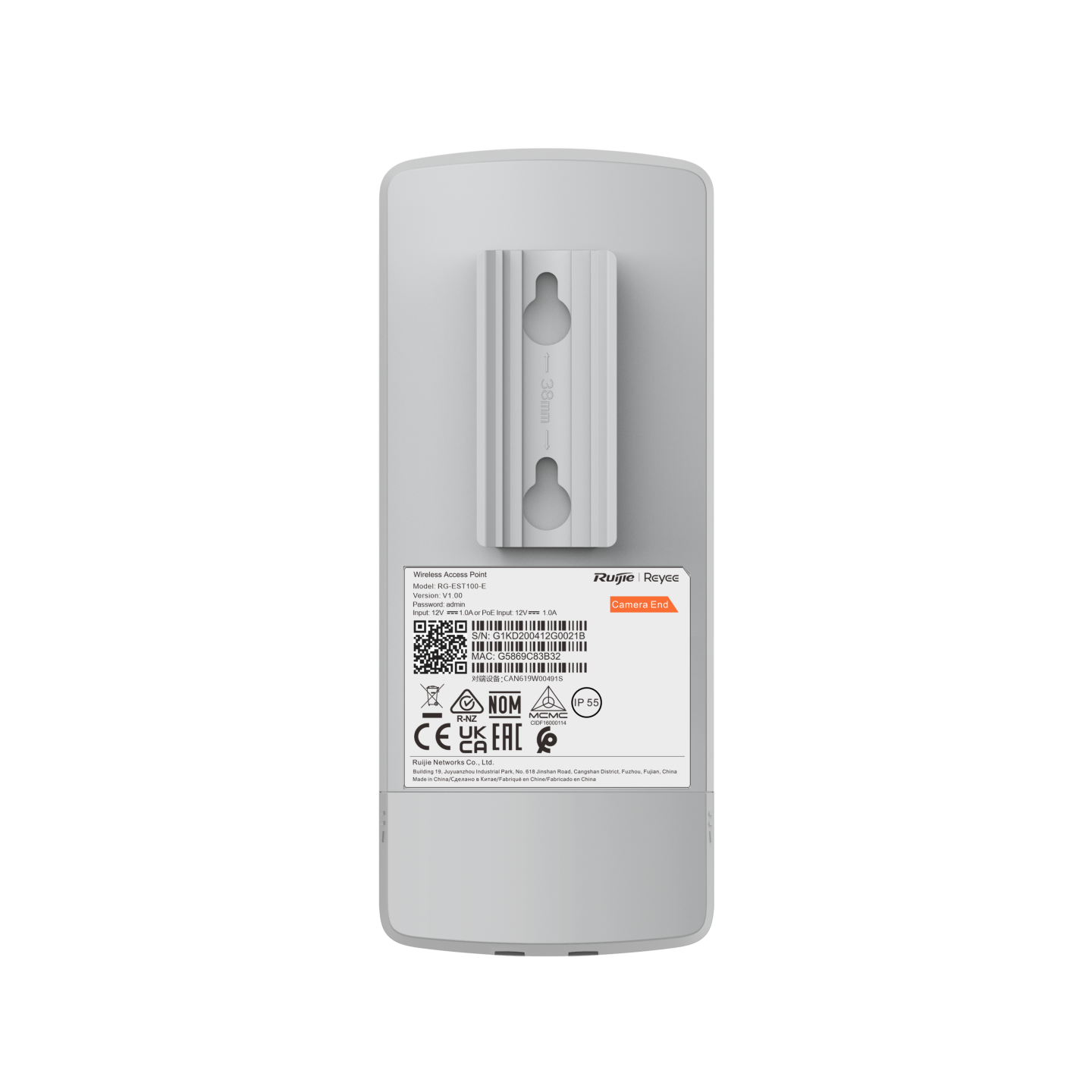

Installation
Wall-mounted/ Pole-mounted
Dimensions （D x W x H）
165.5mm×68.7mm×42mm
Weight
0.3 kg
Certification
CE
SKU RG-EST100-E
Brand REYEE
Shipping Weight 1.0000kg

Manuffacturer Warranty: 3 Years Manuffacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ruijie Reyee 2.4GHz Wireless Bridge - 2 Prepaired Units - 300Mbps 8dBi 500M 2x FE - 2 Pack

Model # RG-EST100-E

  • SKU: RG-EST100-E

$90.00
$99.00
SAVE $9.00 (9%)
In Stock
