StarTech.com · HDMIDVIMM6

StarTech HDMIDVIMM6 1.8m HDMI to DVI-D Cable

1.8m passive male-to-male cable for direct bidirectional digital video connection between HDMI and DVI-D equipment.

Quick answer: HDMIDVIMM6 connects an HDMI port to a DVI-D port with a single 1.8m cable and supports compatible video signals in either direction.

Best forDesktop displays, projectors, digital signage and AV equipment located within a 1.8m cable run.

Check before orderingThe DVI connection carries digital video only, so use a separate audio path. Check connector gender and cable routing before installation.

Answers before you buy

Frequently asked questions

What is HDMIDVIMM6?

It is a 1.8m male-to-male cable that directly connects compatible HDMI and DVI-D digital video equipment.

Can the cable work in either direction?

Yes. It supports compatible HDMI-to-DVI or DVI-to-HDMI digital video configurations.

What connectors does it use?

One end is HDMI 19-pin male and the other is DVI-D 19-pin male.

Does the cable carry audio through DVI?

No. The DVI connection is for digital video, so a separate audio connection is required when sound is needed.

How long is the cable?

The cable is 1.8m long, commonly described as 6ft.

Is it active or passive?

It is a passive cable and does not require external power.

What is included in the package?

The package contains one 1.8m HDMI male to DVI-D male cable.

What warranty applies?

HDMIDVIMM6 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(HDMIDVIMM6)

Features & highlights

Why choose HDMIDVIMM6?

?1.8m direct connectionConnect compatible HDMI and DVI-D equipment without a separate adapter.

?Bidirectional digital videoUse HDMI-to-DVI or DVI-to-HDMI according to the source and display ports.

?Male-to-male connectorsProvides one HDMI 19-pin male and one DVI-D 19-pin male connector.

?Shielded cable constructionAluminium-Mylar foil with braid helps protect the video signal from interference.

?28AWG PVC cableDurable straight-connector construction suits everyday workstation and AV installations.

?Lifetime warrantyBacked by StarTech.coms limited lifetime manufacturer warranty.

Compatibility reminder: The DVI connection carries digital video only, so use a separate audio path. Check connector gender and cable routing before installation.

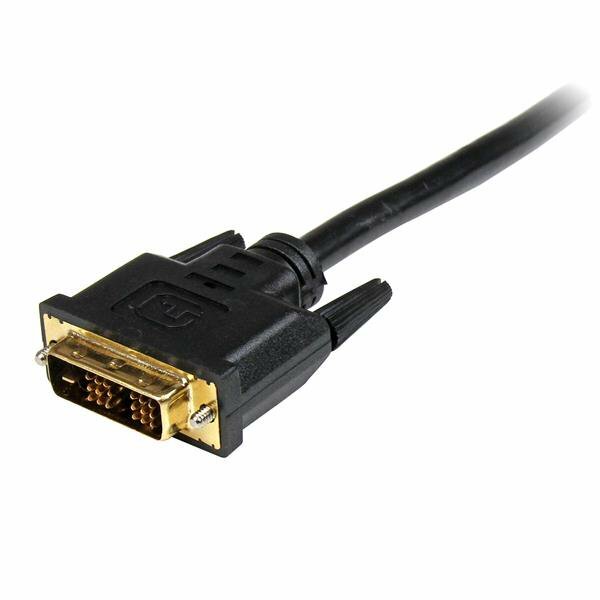

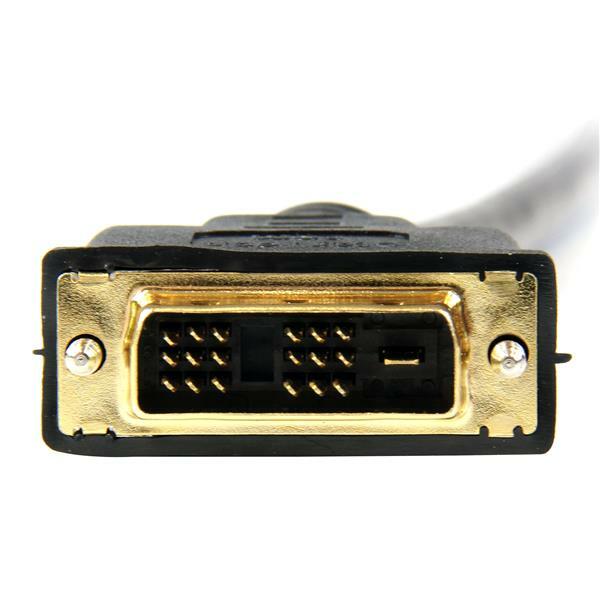

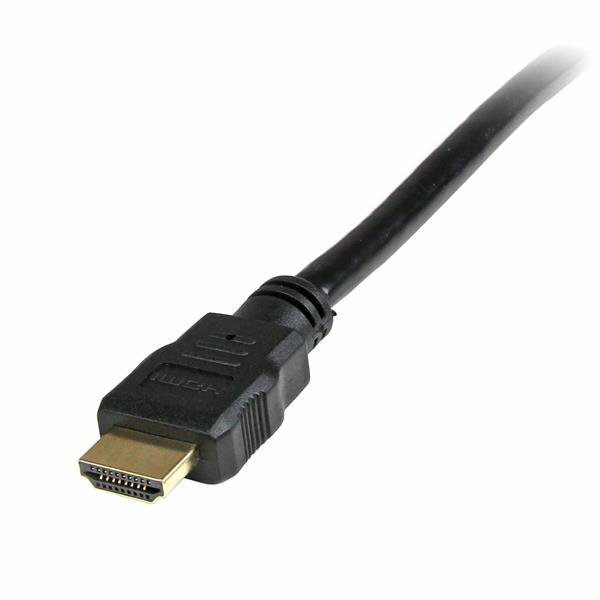

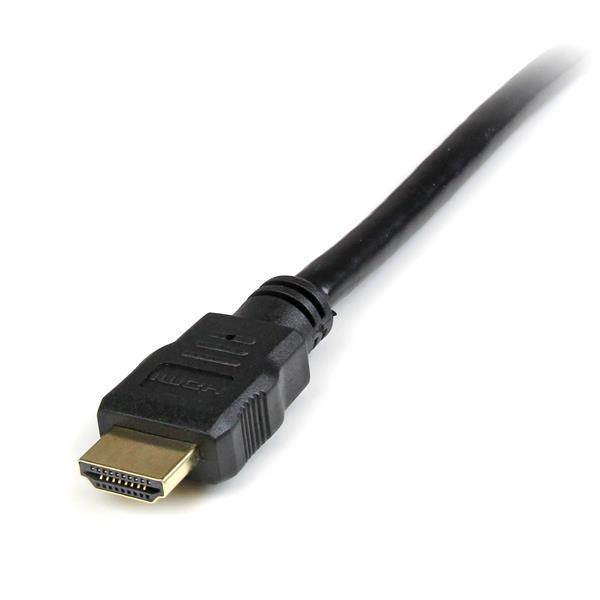

StarTech HDMIDVIMM6 1.8m HDMI to DVI-D Cable product image

Technical specifications

HDMIDVIMM6 specifications

Exact-model specifications for compatibility checking. Measurements are supplied by StarTech.com and may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Active or Passive	Passive
Cable Jacket	PVC
Cable Shield	Aluminium-Mylar foil with braid
Connector Plating	Nickel
Connectors
Connector A	1 - HDMI (19 pin) Male
Connector B	1 - DVI-D (19 pin) Male
Physical Characteristics
Cable Length	1.8m (5.7ft); product length 1.8m (6ft)
Colour	Black
Connector Style	Straight
Wire Gauge	28AWG
Width x Height	3.9 x 1.6cm
Weight	148g
Packaging Information
Package Dimensions	22.9 x 19.5 x 2.8cm
Shipping Weight	166g
What's in the Box
Included	1 - 1.8m (6ft) HDMI to DVI-D cable, M/M

Product appearance and specifications may change. Confirm critical deployment requirements before ordering.

SKU	HDMIDVIMM6
Barcode #	65030809597
Brand	Startech
Shipping Weight	0.1600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.190m
Shipping Cubic	0.000950000m3

Manufacturer warranty

Lifetime

This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com limited lifetime manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
