HDMI feature set
The source lists 3D, Deep Color, 4K, Ethernet and HDCP 2.2 compatibility.
ATEN 2L-7D02H-1 High Speed HDMI Cable with Ethernet -up to 4K UHD at 30Hz - 1.8m
Model # 2L-7D02H-1
-
SKU: 2L-7D02H-1
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU 2L-7D02H-1

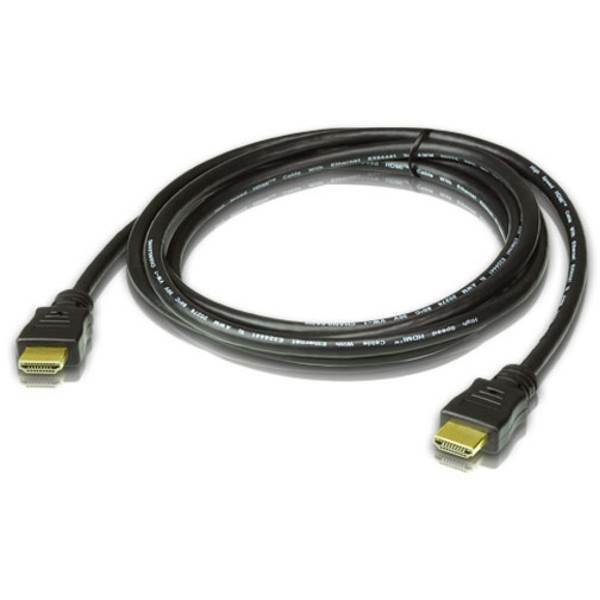

ATEN 2L-7D02H-1 1.8m High Speed HDMI Cable with Ethernet
The ATEN 2L-7D02H-1 is listed as a High Speed HDMI cable with Ethernet using HDMI 19-pin male connectors, tinned-copper conductors and gold-plated contacts.
The supplied fields conflict on both refresh rate and length: the product name states 30Hz, while the description and structured specifications state 60Hz; the description says 2m, while the structured specification lists 1.8m.
Structured length: 1.8mStructured maximum: 4096 x 2160 @ 60HzHDMI male to maleHDCP 2.2 compatibleDeviceDeal authorised ATEN reseller
Product overview
Structured specification
The structured field lists 4096 x 2160 at 60Hz and a 1.8-metre cable length.
Construction
The structured field lists 30AWG tinned copper, gold plating, aluminium-foil shielding and a PVC jacket.
Source review: Supplier confirmation required: the product name states up to 4K at 30Hz but the description and structured specification state 4096 x 2160 at 60Hz. The description calls the cable 2m, while the structured specification lists 1.8m. No value has been silently corrected.
Frequently asked questions
What resolution and refresh rate are supplied for the ATEN 2L-7D02H-1?
The product name states 30Hz, while the description and structured specification state 4096 x 2160 at 60Hz; supplier confirmation is required.
Is the cable 1.8m or 2m?
The structured specification lists 1.8m, while the plain-text description says 2m; supplier confirmation is required.
Which connectors are supplied?
The structured specification lists HDMI 19-pin male connectors at both ends.
What warranty is supplied?
The source lists a two-year limited ATEN manufacturer warranty.
(2L-7D02H-1)
Features
ATEN 2L-7D02H-1 1.8m High Speed HDMI Cable with Ethernet
HDMI features
- High Speed HDMI cable with Ethernet
- 3D, Deep Color and 4K support stated
- HDCP 2.2 compatible
Structured cable details
- Maximum listed: 4096 x 2160 @ 60Hz
- Length listed: 1.8m
- HDMI 19-pin male to male
- 30AWG
Construction and compliance
- Tinned-copper conductor
- Gold connector plating
- Aluminium-foil shielding
- PVC jacket
- UL VW-1 flame rate; CSA
The supplied length and refresh-rate conflicts must be confirmed before final publication.
Technical specifications
ATEN 2L-7D02H-1 1.8m High Speed HDMI Cable with Ethernet
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | 2L-7D02H-1 |
| Product type | High Speed HDMI cable with Ethernet |
| Structured cable length | 1.8m |
| Plain-text description length | 2m |
| Video and interfaces | |
| Structured maximum resolution | 4096 x 2160 @ 60Hz |
| Product-name refresh rate | Up to 4K UHD @ 30Hz |
| Connectors | HDMI 19-pin male to HDMI 19-pin male |
| HDMI features stated | 3D, Deep Color, 4K, Ethernet |
| HDCP compatibility | HDCP 2.2 |
| Construction and compliance | |
| Outer dimension | 6.0 ± 0.15mm |
| Conductor gauge | 30AWG |
| Conductor | Tinned copper |
| Connector plating | Gold |
| Shielding | Aluminium foil |
| Jacket | PVC |
| Operating temperature | 80°C |
| Rating stated | UL VW-1 flame rate; CSA |
| SKU | 2L-7D02H-1 |
| Barcode # | 672792005183 |
| Brand | Aten |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
Warranty information
ATEN 2L-7D02H-1 1.8m High Speed HDMI Cable with Ethernet
2-Year Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
