StarTech Allows an HDMI¨ connection to be mounted on a secure and easily accessible panel. HDMIPNLFM3
Model # HDMIPNLFM3
-
SKU: HDMIPNLFM3
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

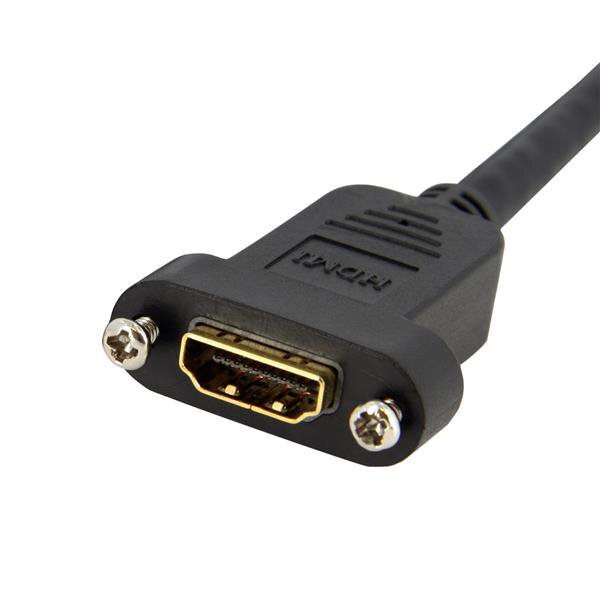

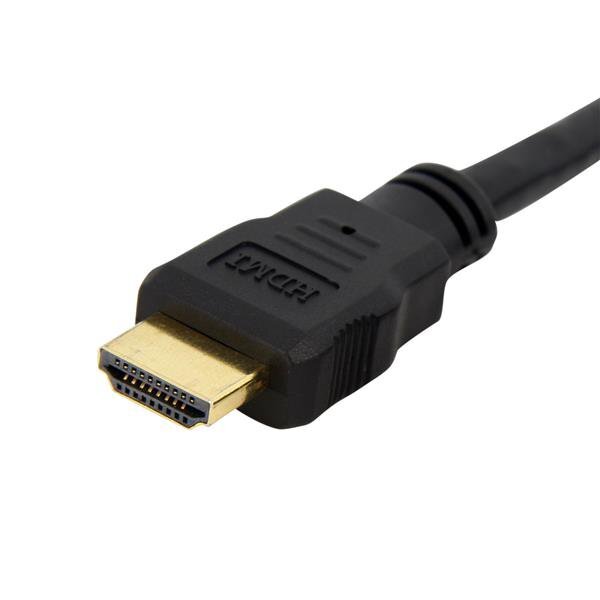

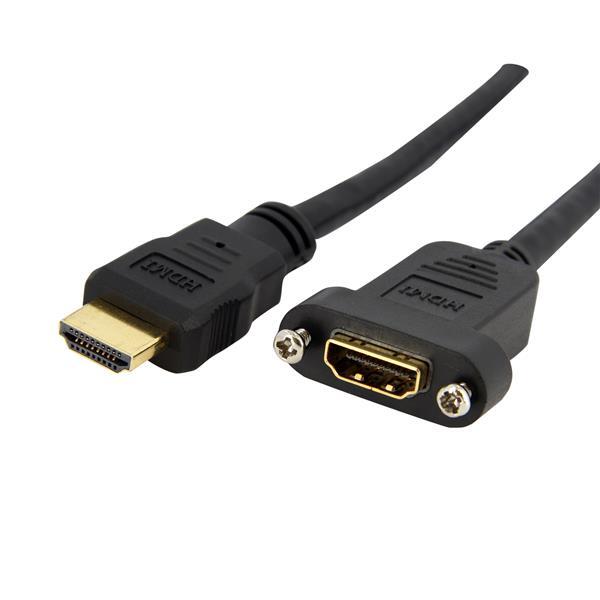

StarTech HDMIPNLFM3 0.9m HDMI Panel-Mount Cable
0.9m HDMI female panel-mount to HDMI male cable for creating a secure, accessible connection on a faceplate, kiosk or equipment panel.
Frequently asked questions
What does HDMIPNLFM3 do?
It extends an HDMI connection to a secure female socket mounted on a faceplate, kiosk or equipment panel.
Which connectors are fitted?
It has one HDMI female panel-mount connector and one HDMI male connector.
What maximum resolution is supported?
It supports compatible video up to 4K at 30Hz.
How long is the cable?
The cable is approximately 0.9m or 3ft long.
How is the female connector secured?
The panel connector uses two 4-40 screws for mounting to a suitable panel or faceplate.
Does it carry HDMI audio?
Yes. It supports compatible HDMI audio, including multi-channel formats, subject to the connected devices.
Is it suitable for general-purpose commercial installation?
It uses a CMG-rated PVC jacket; confirm the rating and local installation requirements for your specific project.
What warranty applies?
HDMIPNLFM3 carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(HDMIPNLFM3)
Why choose HDMIPNLFM3?
HDMIPNLFM3 specifications
Exact-model specifications for compatibility checking. Measurements are supplied by StarTech.com and may be rounded.
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Cable Jacket | PVC |
| Fire Rating | CMG |
| Cable Shield | Aluminium-Mylar foil with braid |
| Mounting | Two 4-40 screws on female panel connector |
| Performance | |
| Maximum Digital Resolution | 4K 30Hz |
| Bandwidth | 10.2Gbps |
| Additional Support | Full HD up to 120Hz; 3D video; 8-channel audio |
| Connectors | |
| Connector A | 1 - HDMI (19 pin) Female, panel mount |
| Connector B | 1 - HDMI (19 pin) Male |
| Environmental | |
| Operating Temperature | 5°C to 70°C |
| Storage Temperature | -10°C to 80°C |
| Humidity | 0% to 85% RH |
| Physical Characteristics | |
| Cable Length | 0.9m (3ft) |
| Cable Diameter | 6.5mm |
| Wire Gauge | 28AWG |
| Colour | Black |
| Weight | 70g |
| Packaging Information | |
| Package Quantity | 1 |
| What's in the Box | |
| Included | 1 - 0.9m HDMI panel-mount cable, F/M |
Product appearance and specifications may change. Confirm critical deployment requirements before ordering.
| SKU | HDMIPNLFM3 |
| Barcode # | 65030837033 |
| Brand | Startech |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000900000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com limited lifetime manufacturer warranty in Australia.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
