StarTech HDMM1MLS 1m HDMI 2.0 Cable with Locking Screw

Slim 1m HDMI 2.0 cable with one removable top-screw locking connector, 4K 60Hz, 18Gbps, HDR and a flexible TPE jacket.

Quick answer: HDMM1MLS helps prevent accidental HDMI disconnection by securing one connector to a compatible top-screw HDMI port while delivering up to 4K 60Hz.

Best forMeeting rooms, wall-mounted equipment, mobile carts and vibration-prone installations with a compatible top-screw HDMI port.

Check before orderingThe locking feature requires a compatible top-screw HDMI female port. The screw can be removed when a standard non-locking connection is needed.

Answers before you buy

Frequently asked questions

What is special about HDMM1MLS?

One HDMI connector has a removable top locking screw that secures it to a compatible HDMI port.

What maximum video format is supported?

It supports up to 4K at 60Hz with compatible HDMI 2.0 equipment.

What bandwidth does it support?

The cable supports bandwidth up to 18Gbps.

Does it support HDR and HDMI audio?

Yes. It supports HDR and compatible multi-channel HDMI audio, subject to the source and display.

Will the screw fit every HDMI port?

No. The locking feature requires a compatible top-screw HDMI female port.

Can it be used as a normal HDMI cable?

Yes. The locking screw can be removed when it is not needed.

How thick is the cable?

The slim TPE cable has an outer diameter of approximately 4.5mm.

What warranty applies?

HDMM1MLS carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(HDMM1MLS)

Features & highlights

Why choose HDMM1MLS?

?Removable locking screwOne HDMI connector includes an adjustable top screw to reduce accidental disconnection from compatible ports.

?4K 60Hz performanceSupports 3840 x 2160 at 60Hz with compatible HDMI 2.0 equipment.

?18Gbps and HDRCarries high-bandwidth video, HDR and compatible HDMI audio formats.

?Slim flexible construction4.5mm TPE jacket and 34AWG conductors simplify routing in compact spaces.

?Tool-free connectionKnurled thumbscrew can be tightened by hand and removed when not required.

?Backward compatibilityWorks with compatible earlier HDMI versions at the capabilities of the connected devices.

Compatibility reminder: The locking feature requires a compatible top-screw HDMI female port. The screw can be removed when a standard non-locking connection is needed.

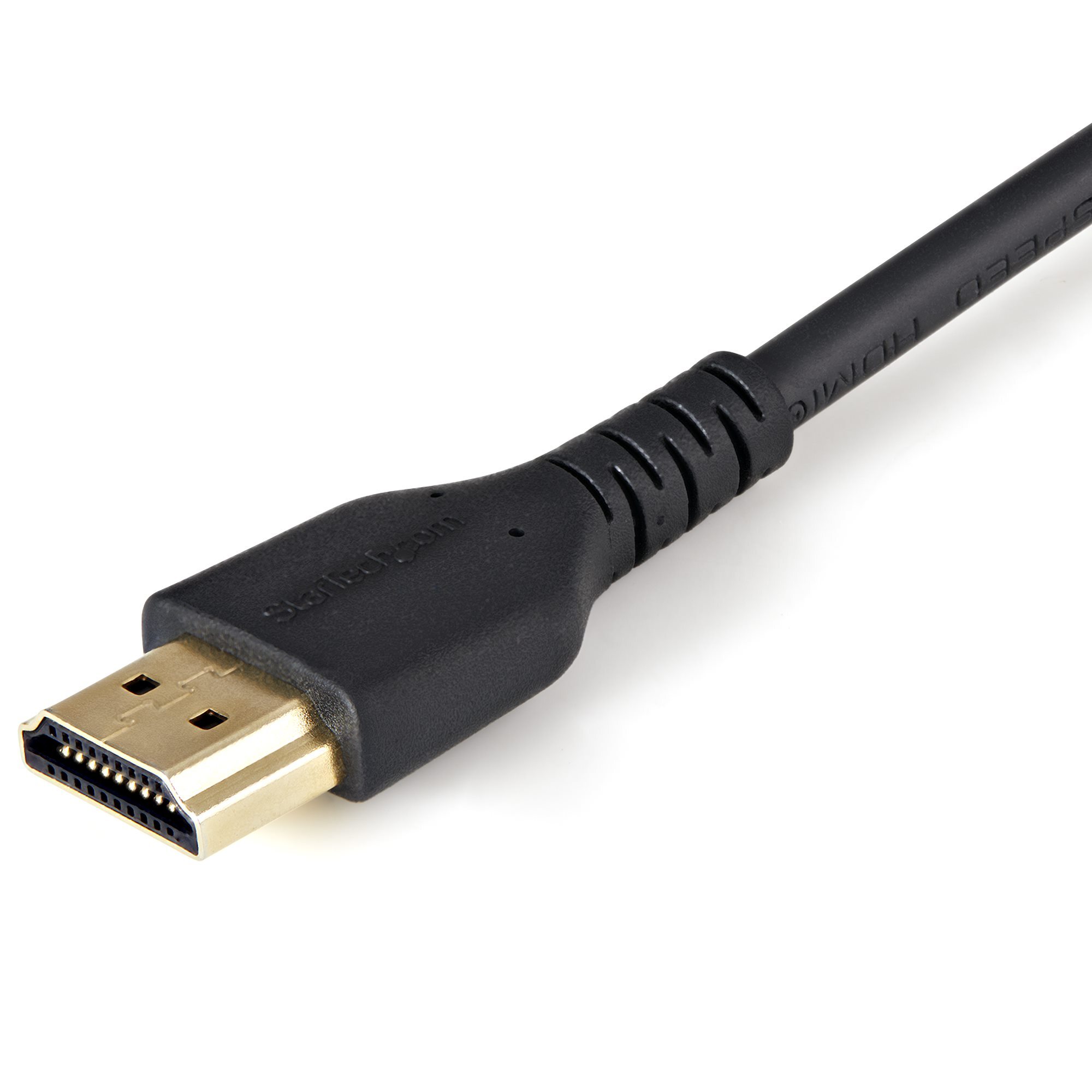

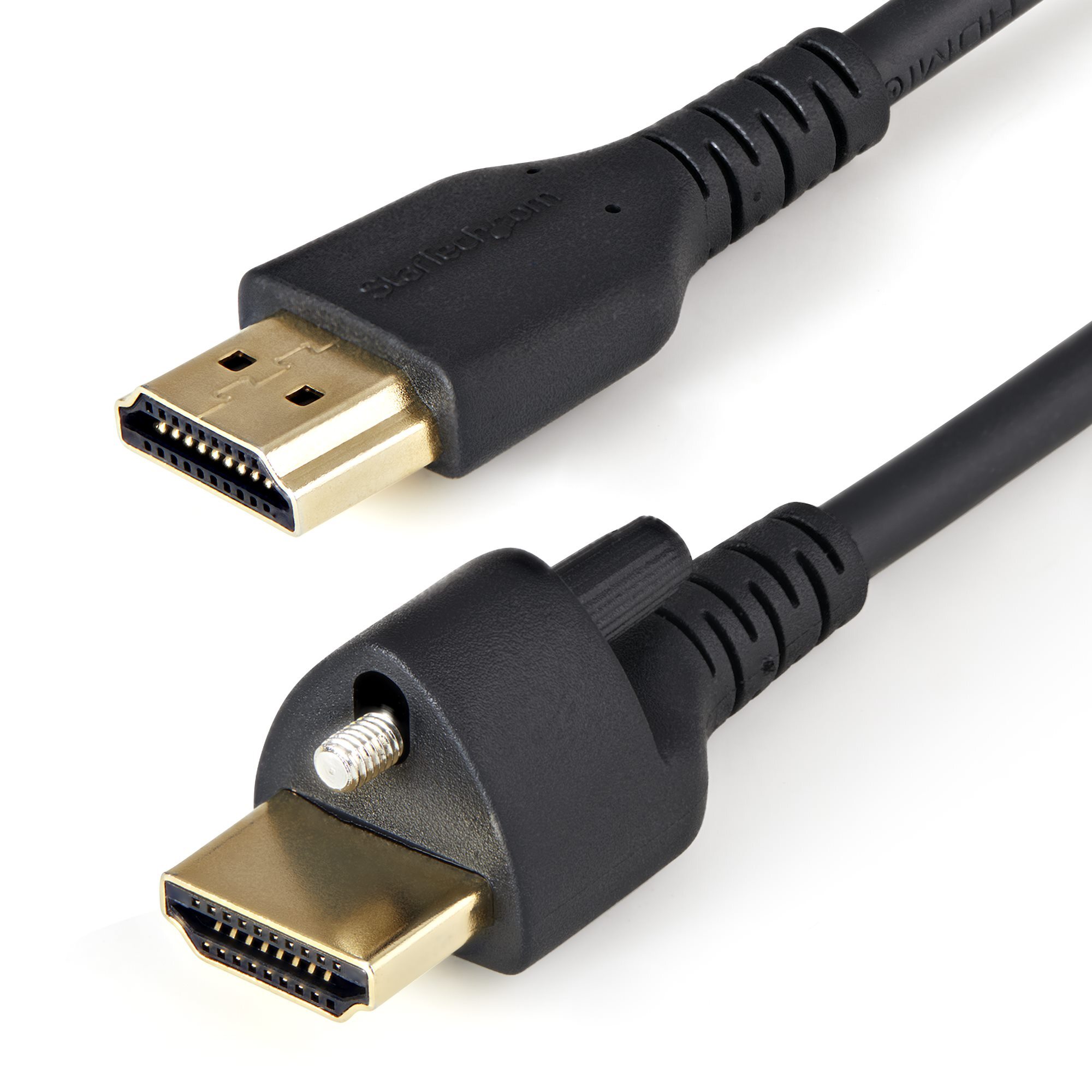

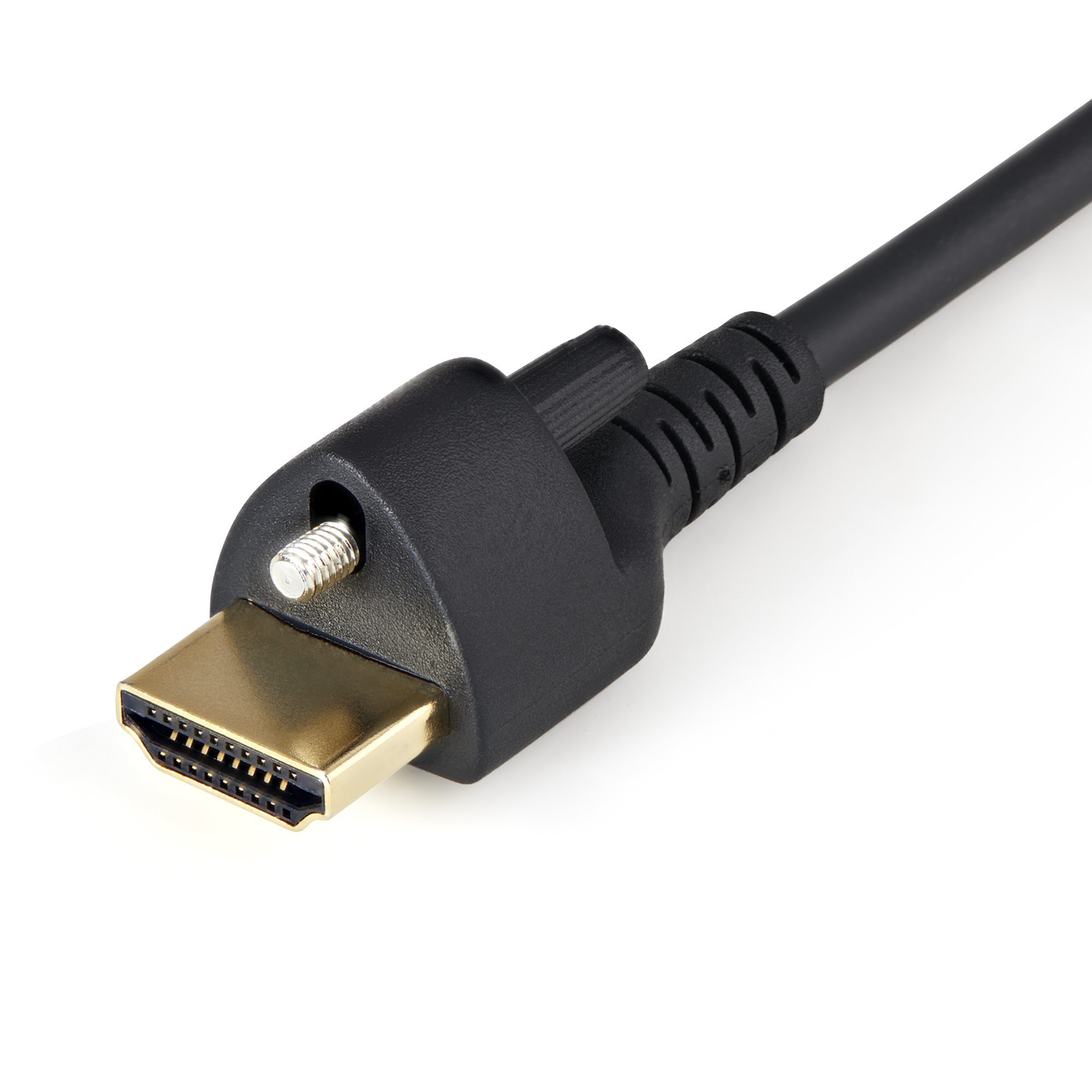

StarTech HDMM1MLS 1m HDMI 2.0 Cable with Locking Screw product image

Technical specifications

HDMM1MLS specifications

Exact-model specifications for compatibility checking. Measurements are supplied by StarTech.com and may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Cable Jacket	TPE
Cable Shield	Aluminium-Mylar foil with braid
Connector Plating	Gold
Locking Design	One removable top-screw connector
Performance
HDMI Revision	HDMI 2.0
Maximum Resolution	4K 60Hz
Bandwidth	18Gbps
Audio	Up to 32 channels with 1536Hz sampling
Connectors
Connector A	1 - HDMI (19 pin) Male, locking
Connector B	1 - HDMI (19 pin) Male
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	0°C to 50°C
Humidity	0% to 85% RH
Physical Characteristics
Cable Length	1m (3.3ft)
Cable Diameter	4.5mm
Wire Gauge	34AWG
Colour	Black
Weight	34g
What's in the Box
Included	1 - HDMI top-screw locking cable

Product appearance and specifications may change. Confirm critical deployment requirements before ordering.

SKU	HDMM1MLS
Barcode #	65030883740
Brand	Startech
Shipping Weight	0.0300kg
Shipping Width	0.001m
Shipping Height	0.013m
Shipping Length	0.011m
