Twenty-metre cable
The supplied product record lists a 20-metre cable length.
ATEN 2L-7D20H High Speed HDMI Cable with Ethernet - up to 4K UHD at 30Hz - 20m
Model # 2L-7D20H
-
SKU: 2L-7D20H
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU 2L-7D20H
ATEN 2L-7D20H 20m High Speed HDMI Cable with Ethernet

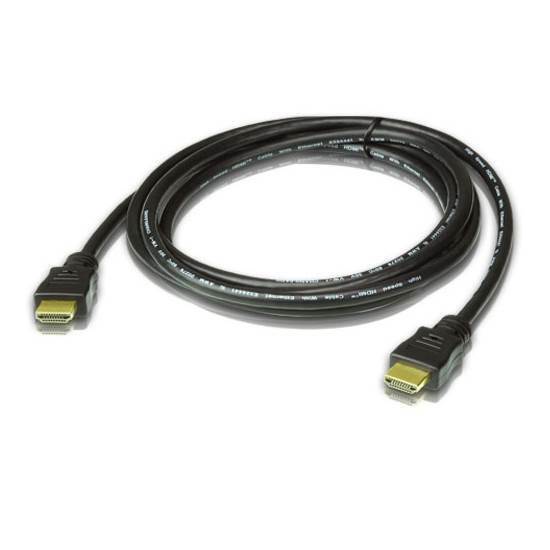

The ATEN 2L-7D20H is a 20-metre High Speed HDMI cable with Ethernet using HDMI 19-pin male connectors, tinned-copper conductors and gold-plated contacts.
The supplied fields conflict on maximum horizontal resolution: the product name, main description and specification state 4096 x 2160 at 30Hz, while one line in the description states 4960 x 2160 at 30Hz.
20-metre cableHDMI male to maleHDCP 2.2 compatibleResolution source conflictDeviceDeal authorised ATEN reseller
Product overview
HDMI feature support
The source lists 3D, Deep Color, 4K, Ethernet and HDCP 2.2 compatibility.
Cable construction
The source lists 26AWG tinned copper, gold plating, aluminium-foil shielding and a PVC jacket.
Source review: Supplier confirmation required: most supplied fields state up to 4096 x 2160 at 30Hz, while one description line states 4960 x 2160 at 30Hz. Both values are preserved below and no value has been silently corrected.
Frequently asked questions
What maximum resolution is listed for the ATEN 2L-7D20H?
Most supplied fields state 4096 x 2160 at 30Hz, while one description line states 4960 x 2160 at 30Hz; supplier confirmation is required.
How long is the cable?
The supplied cable length is 20 metres.
Which connectors are supplied?
The source lists HDMI 19-pin male connectors at both ends.
What warranty is supplied?
The source lists a two-year limited ATEN manufacturer warranty.
(2L-7D20H)
Features
ATEN 2L-7D20H 20m High Speed HDMI Cable with Ethernet
HDMI features
- High Speed HDMI cable with Ethernet
- HDMI 3D support
- Deep Color and 4K support
- HDCP 2.2 compatible
Cable details
- Length: 20m
- HDMI 19-pin male to male
- Black cable
- Outer dimension: 10.0 ± 0.20mm
- 26AWG
Source review
- Main source claim: 4096 x 2160 @ 30Hz
- One description line: 4960 x 2160 @ 30Hz
- Supplier confirmation required
- Two-year limited warranty
Confirm the required display mode with the supplier before final publication or purchase.
Technical specifications
ATEN 2L-7D20H 20m High Speed HDMI Cable with Ethernet
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | 2L-7D20H |
| Product type | High Speed HDMI cable with Ethernet |
| Length | 20m |
| Colour | Black |
| Video and interfaces | |
| Maximum stated in product name, main description and specification | 4096 x 2160 @ 30Hz |
| Conflicting description line | 4960 x 2160 @ 30Hz |
| Connectors | HDMI 19-pin male to HDMI 19-pin male |
| HDMI features stated | 3D, Deep Color, 4K, Ethernet |
| HDCP compatibility | HDCP 2.2 |
| Construction and compliance | |
| Outer dimension | 10.0 ± 0.20mm |
| Conductor gauge | 26AWG |
| Conductor | Tinned copper |
| Connector plating | Gold |
| Shielding | Aluminium foil |
| Jacket | PVC |
| Operating temperature | 80°C |
| Rating stated | UL VW-1 flame rate; CSA |
| SKU | 2L-7D20H |
| Barcode # | 672792005282 |
| Brand | Aten |
| Shipping Weight | 2.3300kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.000020000m3 |
Warranty information
ATEN 2L-7D20H 20m High Speed HDMI Cable with Ethernet
2-Year Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
