StarTech.com · HDADMM2M

2m Micro HDMI to HDMI Cable with Ethernet

Connect a Micro HDMI Type-D device directly to a standard HDMI display with a 2m High Speed HDMI cable supporting 4K 30Hz video and eight-channel audio.

2m cableMicro HDMI to HDMI4K 30Hz10.2Gbps

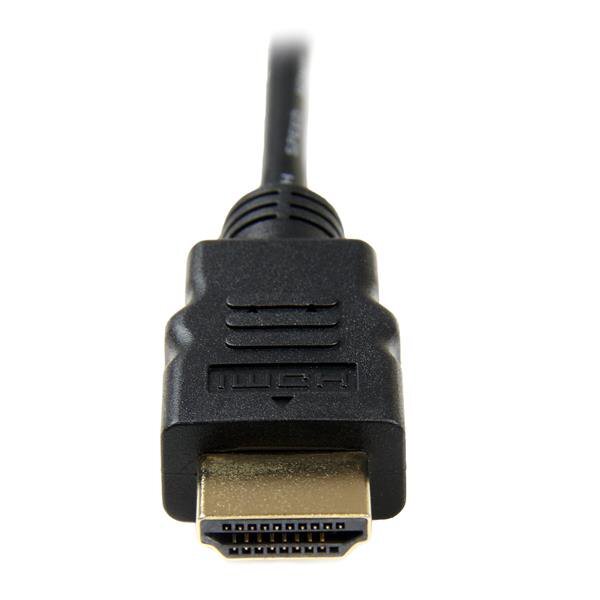

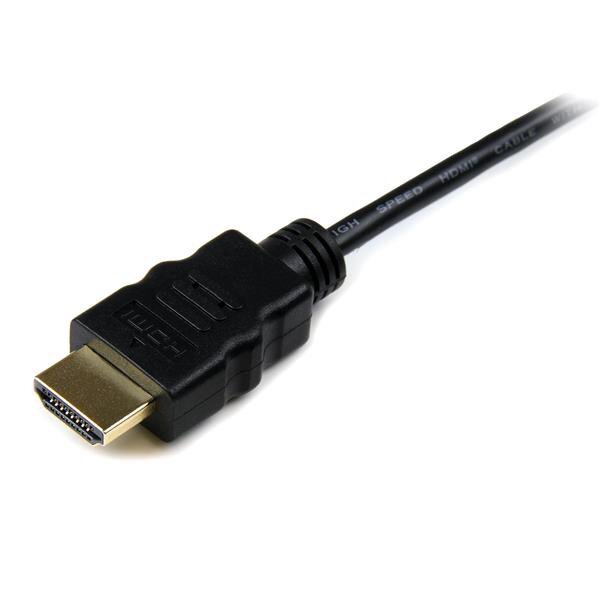

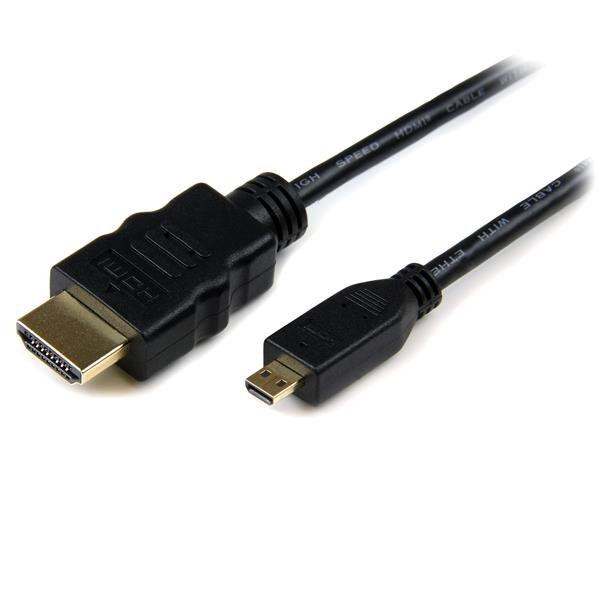

StarTech HDADMM2M 2m Micro HDMI to HDMI Cable with Ethernet

Built for dependable use

Direct display connection

Links a Micro HDMI Type-D source to a standard HDMI Type-A display without a separate adapter.

High Speed HDMI

Supports HDMI 1.4b bandwidth up to 10.2Gbps and compatible 4K 30Hz video.

Audio and video features

Carries 3D video, ARC, CEC, HDCP 1.4 and up to eight audio channels.

Shielded cable construction

34AWG copper conductors use aluminium-Mylar foil and braid shielding.

What to know before you connect

The source device must use Micro HDMI Type-D, not Mini HDMI Type-C.
Maximum performance depends on the complete source and display chain.
The cable is 2m long.
It is a passive HDMI cable and requires no external power.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com lifetime manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HDADMM2M do?

It connects a Micro HDMI Type-D source directly to a standard HDMI Type-A display.

What connections does the HDADMM2M provide?

It has one Micro HDMI Type-D male connector and one standard HDMI Type-A male connector.

What is the maximum verified performance?

It supports 3840 × 2160 at 30Hz or 4096 × 2160 at 24Hz, with bandwidth up to 10.2Gbps.

How is the HDADMM2M powered?

It is a passive HDMI cable and requires no external power.

What compatibility should I check?

It is intended for Micro HDMI Type-D devices and standard HDMI Type-A displays or equipment.

Will this cable fit a Mini HDMI port?

No. Micro HDMI Type-D and Mini HDMI Type-C are different connector sizes.

What is included in the package?

The package includes one 2m High Speed Micro HDMI-to-HDMI cable with Ethernet.

What warranty applies in Australia?

The Australian-version HDADMM2M supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HDADMM2M)

Features and highlights

Direct display connection

Links a Micro HDMI Type-D source to a standard HDMI Type-A display without a separate adapter.

High Speed HDMI

Supports HDMI 1.4b bandwidth up to 10.2Gbps and compatible 4K 30Hz video.

Audio and video features

Carries 3D video, ARC, CEC, HDCP 1.4 and up to eight audio channels.

Shielded cable construction

34AWG copper conductors use aluminium-Mylar foil and braid shielding.

Durable moulded ends

Gold-plated connectors and flexible PVC strain relief support regular handling.

Key highlights

HDMI Type-A male to Micro HDMI Type-D male
HDMI Ethernet Channel
Black PVC jacket
Straight connectors

Official StarTech.com lifetime manufacturer warranty in Australia.

Technical specifications

StarTech HDADMM2M · 2m Micro HDMI to HDMI Cable with Ethernet

Warranty Information

Warranty

Lifetime

Hardware

Cable Jacket Type

PVC - Polyvinyl Chloride

Number of Conductors

Connector(s)

Connector A

1 - HDMI (19 pin) Male

Connector B

1 - Micro HDMI (19 pin) Male

Physical Characteristics

Cable Length

6.6 ft [2 m]

Cable OD

4.2

Color

Black

Connector Style

Straight

Product Length

6.6 ft [2 m]

Weight of Product

2.6 oz [75 g]

Wire Gauge

34 AWG

Packaging Information

Package Height

0.8 in [20 mm]

Package Length

8.9 in [22.5 cm]

Package Quantity

Package Width

4.9 in [12.5 cm]

Shipping (Package) Weight

0.2 lb [0.1 kg]

What's in the Box

Included in Package

1 - 2 m High Speed HDMI Cable with Ethernet - HDMI to HDMI Micro M/M

Performance

HDMI Revision

HDMI 1.4b and earlier

Maximum Resolution

3840 × 2160 at 30Hz; 4096 × 2160 at 24Hz

Bandwidth

10.2Gbps

Audio

Up to 8 channels

Additional Support

Ethernet, ARC, 3D, HDCP 1.4 and CEC

Construction

Wire Gauge

34AWG

Cable Jacket

PVC

Shielding

Aluminium-Mylar foil with braid

Official Physical Details

Cable Length

2m [6.6ft]

Weight

60g

SKU	HDADMM2M
Barcode #	65030846967
Brand	Startech
Shipping Weight	0.0700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.120m
Shipping Cubic	0.000600000m3

Australian warranty confidence

Lifetime manufacturer warranty

This is the Australian version of StarTech HDADMM2M supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
