Fifteen-metre reach
The supplied structured specification lists a 15-metre cable length.
ATEN 2L-7D15H High Speed HDMI Cable with Ethernet - up to 4K UHD at 30Hz - 15m
Model # 2L-7D15H
-
SKU: 2L-7D15H
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU 2L-7D15H

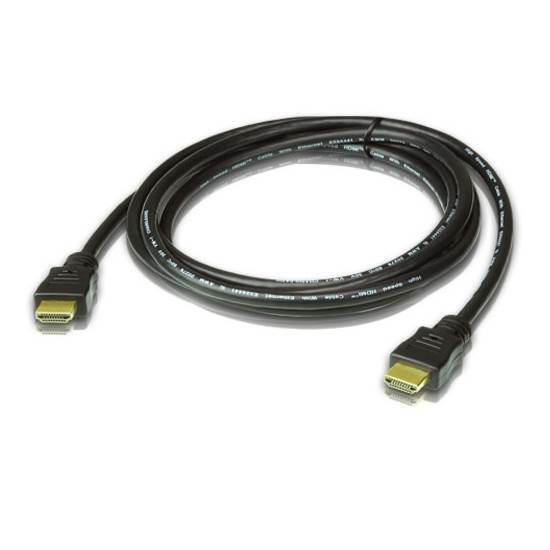

ATEN 2L-7D15H 15m High Speed HDMI Cable with Ethernet
The ATEN 2L-7D15H is a 15-metre High Speed HDMI cable with Ethernet supporting video up to 4096 x 2160 at 30Hz, as listed in the supplied specifications.
Its black cable construction uses 24AWG tinned-copper conductors, gold-plated HDMI connectors, aluminium-foil shielding and a PVC jacket.
15-metre cableUp to 4096 x 2160 @ 30Hz24AWG tinned copper2-year limited warrantyDeviceDeal authorised ATEN reseller
Product overview
4K at 30Hz
The supplied maximum video resolution is 4096 x 2160 at 30Hz.
24AWG construction
The source lists 24AWG tinned copper with gold-plated connectors and aluminium-foil shielding.
Source review: The supplied text includes a generic rack-mount dimension-order note that is unrelated to this cable and has been excluded from the customer-facing specifications.
Frequently asked questions
How long is the ATEN 2L-7D15H cable?
The supplied cable length is 15 metres.
What maximum resolution is listed?
The supplied specification lists up to 4096 x 2160 at 30Hz.
What conductor gauge is listed?
The structured specification lists 24AWG tinned copper.
What warranty is supplied?
The source lists a two-year limited ATEN manufacturer warranty.
(2L-7D15H)
Features
ATEN 2L-7D15H 15m High Speed HDMI Cable with Ethernet
Video and HDMI
- Up to 4096 x 2160 @ 30Hz
- HDMI 3D support
- Deep Color and 4K support
- HDCP 2.2 compatible
- Ethernet support
Cable details
- Length: 15m
- HDMI 19-pin male to male
- Black cable
- Outer dimension: 10.0 ± 0.20mm
- 24AWG
Construction and compliance
- Tinned-copper conductor
- Gold connector plating
- Aluminium-foil shielding
- PVC jacket
- UL VW-1 flame rate; CSA
Confirm that the connected source and display support the required HDMI display mode over the installation distance.
Technical specifications
ATEN 2L-7D15H 15m High Speed HDMI Cable with Ethernet
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | 2L-7D15H |
| Product type | High Speed HDMI cable with Ethernet |
| Length | 15m |
| Colour | Black |
| Video and interfaces | |
| Maximum video resolution | 4096 x 2160 @ 30Hz |
| Connectors | HDMI 19-pin male to HDMI 19-pin male |
| HDMI features stated | 3D, Deep Color, 4K, Ethernet |
| HDCP compatibility | HDCP 2.2 |
| Construction and compliance | |
| Outer dimension | 10.0 ± 0.20mm |
| Conductor gauge | 24AWG |
| Conductor | Tinned copper |
| Connector plating | Gold |
| Shielding | Aluminium foil |
| Jacket | PVC |
| Operating temperature | 80°C |
| Rating stated | UL VW-1 flame rate; CSA |
| SKU | 2L-7D15H |
| Barcode # | 672792005275 |
| Brand | Aten |
| Shipping Weight | 1.6300kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000015000m3 |
Warranty information
ATEN 2L-7D15H 15m High Speed HDMI Cable with Ethernet
2-Year Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
