StarTech.com · HD2MM10MA

10m Active HDMI 2.0 Cable, 4K 60Hz

Run HDMI 2.0 video up to 10 metres with an active, directional cable supporting 4K 60Hz, HDR and 18Gbps bandwidth without an external power adapter.

10m active cable4K 60Hz18GbpsCL2 rated

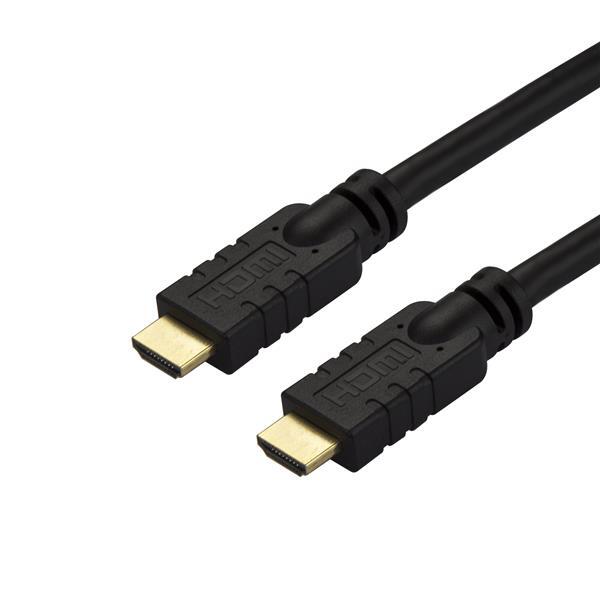

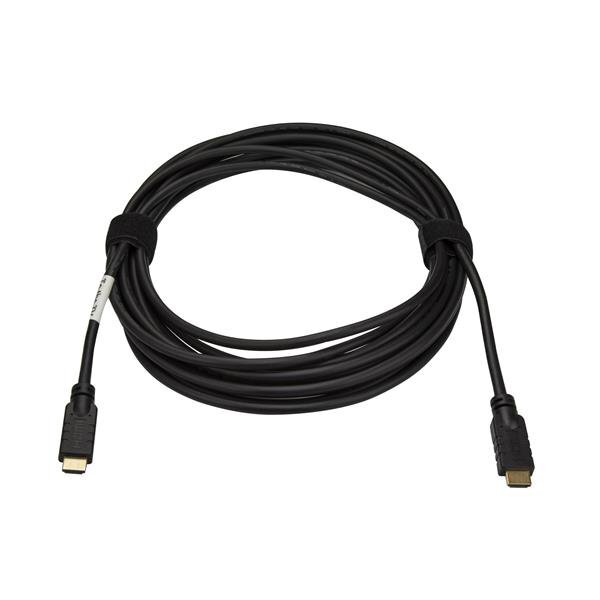

StarTech HD2MM10MA 10m Active HDMI 2.0 Cable, 4K 60Hz

Built for dependable use

Long-distance active HDMI

Integrated Spectra7 circuitry maintains HDMI performance across the 10m cable run.

4K 60Hz bandwidth

Supports 18Gbps video, HDR and compatible 4K 60Hz displays.

Rich audio support

Carries up to 32 HDMI audio channels with sampling rates up to 1536Hz.

In-wall CL2 rating

The CL2-rated PVC jacket supports appropriate in-wall installations subject to local requirements.

What to know before you connect

This active cable is unidirectional.
Connect the HDMI plug labelled TV to the display.
Maximum verified resolution is 3840 × 2160 at 60Hz.
Confirm local building and installation requirements before in-wall routing.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What does the StarTech HD2MM10MA do?

It carries HDMI video and audio over a 10m source-to-display run using integrated active signal technology.

What connections does the HD2MM10MA provide?

It has male HDMI Type-A connectors at both ends; the connector labelled TV goes to the display.

What is the maximum verified performance?

It supports HDMI 2.0 bandwidth up to 18Gbps and video up to 3840 × 2160 at 60Hz.

How is the HD2MM10MA powered?

Its active circuitry is powered through HDMI and does not require a separate power adapter.

What compatibility should I check?

Use it between compatible HDMI source and display devices, observing the marked source-to-display direction.

Can the HD2MM10MA be installed in either direction?

No. It is unidirectional, and the HDMI connector labelled TV must be connected to the display.

What is included in the package?

The package includes one 10m active HDMI cable.

What warranty applies in Australia?

The Australian-version HD2MM10MA supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HD2MM10MA)

Features and highlights

Long-distance active HDMI

Integrated Spectra7 circuitry maintains HDMI performance across the 10m cable run.

4K 60Hz bandwidth

Supports 18Gbps video, HDR and compatible 4K 60Hz displays.

Rich audio support

Carries up to 32 HDMI audio channels with sampling rates up to 1536Hz.

In-wall CL2 rating

The CL2-rated PVC jacket supports appropriate in-wall installations subject to local requirements.

No external adapter

Active electronics draw power through the HDMI connection.

Key highlights

Unidirectional HDMI male-to-male cable
Spectra7 HT8181 chipset
24AWG conductors
Gold-plated connectors

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HD2MM10MA · 10m Active HDMI 2.0 Cable, 4K 60Hz

Warranty Information

Warranty

2 Years

Performance

Maximum Resolution

3840 × 2160 at 60Hz

Bandwidth

18Gbps

Audio

Up to 32 channels at 1536Hz

Additional Support

HDR, ARC, 21:9 and 3D video

Hardware

Cable Type

Active, unidirectional

Chipset

Spectra7 HT8181

Fire Rating

CL2

Power

HDMI bus powered

Connectors

Connector A

1 × HDMI male

Connector B

1 × HDMI male

Plating

Gold

Physical Characteristics

Colour

Black

Cable Length

10m [32.8ft]

Wire Gauge

24AWG

Weight

1kg

Package Contents

Included

1 × HDMI cable

SKU	HD2MM10MA
Barcode #	65030875639
Brand	Startech
Shipping Weight	1.0000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.230m
Shipping Cubic	0.001150000m3

Australian warranty confidence

2 Years manufacturer warranty

This is the Australian version of StarTech HD2MM10MA supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
