Up to 4K 60Hz
DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.
StarTech USB Type-Cª Video Adapter Cable | Thunderboltª 3 Compatible CDP2DPMM3MB
Model # CDP2DPMM3MB
-
SKU: CDP2DPMM3MB
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2DPMM3MB

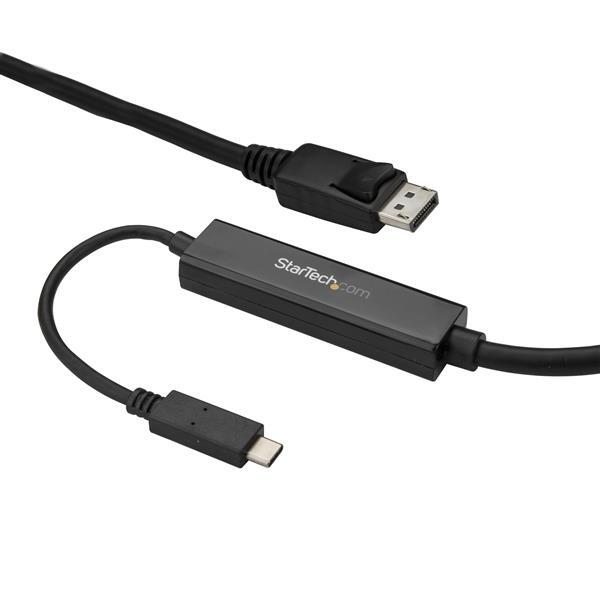

StarTech 3m USB-C to DisplayPort 1.2 Cable - 4K 60Hz
Connect a USB-C or Thunderbolt host to one DisplayPort monitor over 3m with an active cable supporting 4K 60Hz.
DisplayPort 1.2Up to 4K 60HzHBR2 · 21.6Gbps3-year warranty
Product overview
CDP2DPMM3MB uses an integrated signal booster to maintain HBR2 video over its longer 3m length. It supports HDCP and DisplayPort audio without extra drivers.
Features that matter
Integrated signal booster
An integrated signal booster supports reliable 4K video over the longer cable length.
Direct, driverless connection
The integrated design supports plug-and-play use without a separate converter or software driver.
Verified compatibility and limits
The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.
What to know before ordering
Host requirement
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.
Connection direction
Connect the USB-C end to the host and the DisplayPort end to one display; the cable is not bidirectional.
Power Delivery
This product does not provide USB-C Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2DPMM3MB?
CDP2DPMM3MB is a usb-c to displayport 1.2 adapter cable for connecting a USB-C DP Alt Mode host directly to one DisplayPort display.
What is the maximum resolution?
undefined
What must the USB-C port support?
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.
Is this cable bidirectional?
No. It carries video from a USB-C DP Alt Mode host to a DisplayPort display.
Does it carry audio?
Yes. The verified specification lists up to 5.1-channel audio over DisplayPort.
Does it support Power Delivery?
No. It does not provide USB-C Power Delivery pass-through.
What is included in the package?
The package contains one 3m (9.8ft) USB-C to DisplayPort cable.
What warranty applies in Australia?
CDP2DPMM3MB is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2DPMM3MB)
Features and highlights
CDP2DPMM3MB key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Up to 4K 60Hz
DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.
Integrated signal booster
An integrated signal booster supports reliable 4K video over the longer cable length.
Direct, driverless connection
The integrated design supports plug-and-play use without a separate converter or software driver.
Verified compatibility and limits
The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.
Key highlights
- 3m (9.8ft)
- HBR2 · 21.6Gbps
- Up to 4K 60Hz
- 5.1-channel DP audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2DPMM3MB
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to DisplayPort 1.2 adapter cable
Cable length
3m (9.8ft)
Connectors
USB-C male to DisplayPort male
Displays supported
1
Warranty
3 Years
UPC
065030873901
Video and Audio
Maximum resolution
3840 x 2160 at 60Hz
Bandwidth
HBR2, 21.6Gbps
Content protection
HDCP 2.2/1.4
HDR support
No
Audio
DisplayPort 5.1-channel audio
Power Delivery
No PD pass-through
Hardware and Requirements
AV input
USB-C
AV output
DisplayPort 1.2
Signal booster
Integrated
Chipsets
STMicroelectronics STM32F072CBU6; Pericom PI3DPX1203
Host requirement
USB-C DisplayPort Alt Mode
Driver requirement
No additional driver or software
Physical and Environmental
Colour
Black
Dimensions (L x W x H)
3000 x 20 x 15mm
Product weight
222g
Operating temperature
040°C
Storage temperature
-4080°C
Humidity
2070% RH
Packaging and In the Box
Package dimensions (W x D x H)
172 x 160 x 37mm
Shipping weight
214g
Package contents
1 x USB-C to DisplayPort cable
| SKU | CDP2DPMM3MB |
| Barcode # | 65030873901 |
| Brand | STARTECH |
| Shipping Weight | 0.2200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.000750000m3 |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2DPMM3MB.
