StarTech DVI-D to VGA Active Adapter Converter - DVI2VGAE
Model # DVI2VGAE
-
SKU: DVI2VGAE
- Pick Up Available
- Australian Warranty
- Checkout Securely
Active DVI-D to VGA Adapter Converter
Connect a digital DVI-D computer output to a VGA monitor or projector with active conversion up to 1920 × 1200.
Digital-to-analogue conversion
Actively converts a DVI-D source signal to analogue VGA for a legacy monitor or projector.
Up to 1920 × 1200
Supports analogue output up to 1920 × 1200, including 1080p, with compatible equipment.
Optional USB power
Normally powered through the DVI bus; the included USB cable can provide power for a low-powered DVI port.
What to know
This adapter works only from DVI-D source to VGA display and does not convert VGA output to DVI input. VGA carries video only. Use the included USB power cable when the DVI port cannot provide sufficient power.
Frequently asked questions
What does the DVI2VGAE connect?
It connects a digital DVI-D output on a computer to a VGA monitor or projector.
Which direction does the DVI2VGAE work?
It converts from a DVI-D source to a VGA display and cannot operate in reverse.
What maximum resolution does the DVI2VGAE support?
It supports analogue output up to 1920 × 1200, including 1080p, with compatible equipment.
Is the DVI2VGAE active or passive?
It is an active converter that changes digital DVI-D video into an analogue VGA signal.
Does the DVI2VGAE require USB power?
A standard powered DVI bus can power it; use the included USB cable when the DVI port provides insufficient power.
Does the DVI2VGAE carry audio?
No. VGA carries video only, so audio requires a separate connection.
Does the DVI2VGAE require drivers?
No. It is plug and play and does not require driver installation.
What warranty applies to the DVI2VGAE?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DVI2VGAE)
Features and highlights
- Active DVI-D male to VGA female video converter
- Directional digital-to-analogue conversion
- Supports up to 1920 × 1200, including 1080p
- Normally powered by a standard powered DVI bus
- Micro-USB power input for low-powered DVI ports
- No external AC power adapter required
- Plug-and-play operation with no drivers
- No audio support over VGA
- Includes a 610mm USB-A to Micro-USB power cable
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DVI-D to VGA converter |
|---|---|
| Video input | 1 × DVI-D male, 25-pin |
| Video output | 1 × VGA female, 15-pin high-density D-Sub |
| Power input | 1 × Micro-USB female, 5-pin |
| Attached cable length | 190mm; supplied catalogue lists 19.05cm |
| Maximum analogue resolution | 1920 × 1200; supports 1080p |
| Adapter type | Active and directional |
| Audio | No |
| Power consumption | 1.3W |
| Power method | DVI-bus powered; USB power available for low-powered DVI ports |
| Software | Plug and play; no drivers required |
| Operating environment | 0°C to 60°C; 40% to 85% relative humidity |
| Product weight | 84g in the current official specification; supplied catalogue lists 77.1g |

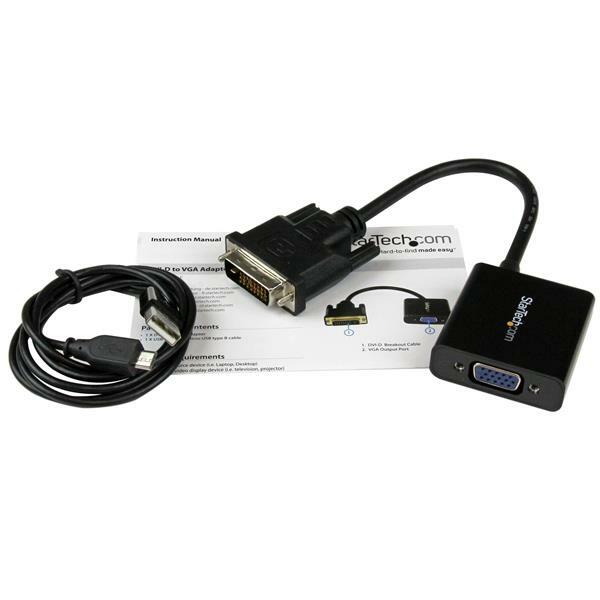

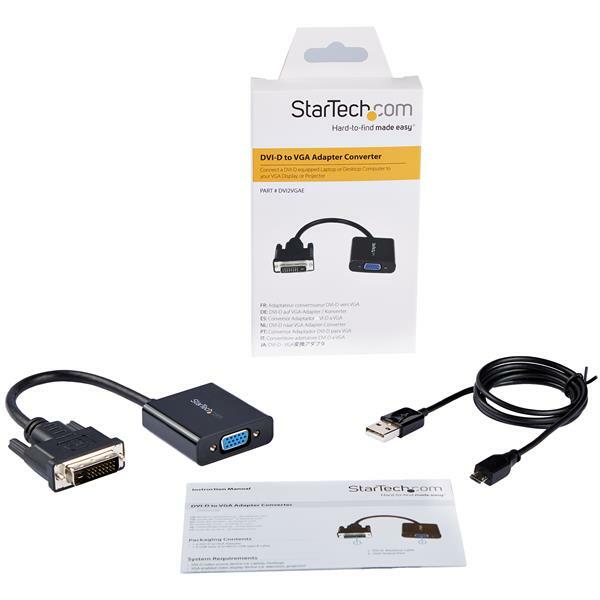

| In the box | DVI-D to VGA converter; 610mm USB-A to Micro-USB power cable |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DVI2VGAE |
| Barcode # | 65030850834 |
| Brand | STARTECH |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
