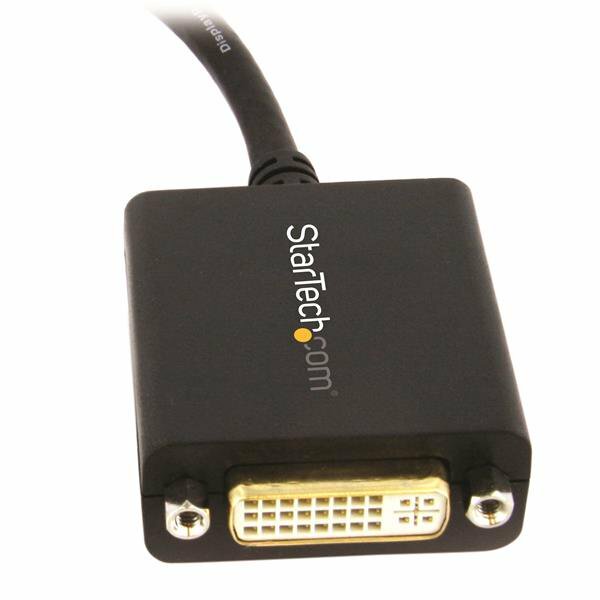

StarTech DisplayPort to DVI Adapter - DP2DVI2
Model # DP2DVI2
-
SKU: DP2DVI2
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
15cm Passive DisplayPort to Single-Link DVI Adapter
Connect a DP++ DisplayPort computer to a DVI display with a 15cm passive compact adapter supporting up to 1920 × 1200 at 60Hz.
DisplayPort to DVI
Connects a full-size DisplayPort source to a single-link DVI monitor, projector or display.
Up to 1920 × 1200
Supports 1920 × 1200 or 1080p at 60Hz with compatible source and display equipment.
DP++ source required
Passive conversion requires a dual-mode DisplayPort output; it is not suitable for a single-mode-only DisplayPort source.
What to know
This is a one-way passive DisplayPort-source to DVI-display connection and requires a DP++ dual-mode DisplayPort output. DVI carries video only, so use a separate audio path if sound is required. It does not convert DVI output to DisplayPort input.
Frequently asked questions
What does the DP2DVI2 connect?
It connects a full-size DisplayPort output on a computer to a single-link digital DVI input on a monitor, projector or display.
What maximum resolution does the DP2DVI2 support?
It supports up to 1920 × 1200 at 60Hz, including 1920 × 1080 at 60Hz, with compatible equipment.
Does the DP2DVI2 require DP++?
Yes. It is a passive converter and requires a DP++ dual-mode DisplayPort source.
How long is the DP2DVI2?
It is 15cm (short attached lead) long.
Can the DP2DVI2 carry audio?
No. The DVI connection carries video only, so audio needs a separate path.
Can the DP2DVI2 convert DVI output to DisplayPort input?
No. It works in one direction from a DisplayPort source to a DVI display.
Does the DP2DVI2 require drivers or external power?
No. It is plug and play and does not use drivers or a separate power adapter.
What warranty applies to the DP2DVI2?
It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2DVI2)
Features and highlights
- 15cm (short attached lead) passive DisplayPort to single-link DVI compact adapter
- Supports up to 1920 × 1200 or 1920 × 1080 at 60Hz with compatible equipment
- Requires a DP++ dual-mode DisplayPort source
- DisplayPort male to DVI-I female, 29-pin, carrying a single-link digital DVI signal
- HDCP 1.4 and EDID/DDC support for compatible protected-content and display-identification workflows
- One-way conversion from DisplayPort source to DVI display
- Video only; DVI does not carry audio
- nickel-plated connector contacts
- Plug-and-play operation with no drivers or external power adapter
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Passive DisplayPort to single-link DVI compact adapter |
|---|---|
| Source connector | 1 × DisplayPort male, 20-pin, latching |
| Display connector | 1 × DVI-I female, 29-pin, carrying a single-link digital DVI signal |
| Cable length | 15cm (short attached lead) |
| Maximum resolution | 1920 × 1200 at 60Hz; supports 1080p at 60Hz |
| Source requirement | DP++ dual-mode DisplayPort output |
| Direction | DisplayPort source to DVI display only |
| Displays supported | 1 |
| Audio | Video only; DVI does not carry audio |
| Content and display data | HDCP 1.4; EDID/DDC support |
| Connector plating | nickel-plated |
| Jacket and colour | Black PVC attached lead and housing |
| Power and software | No external power adapter or drivers required |
| In the box | 1 × DisplayPort to DVI compact adapter |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2DVI2 |
| Barcode # | 65030836869 |
| Brand | Startech |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.040m |
| Shipping Height | 0.020m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.000200000m3 |
