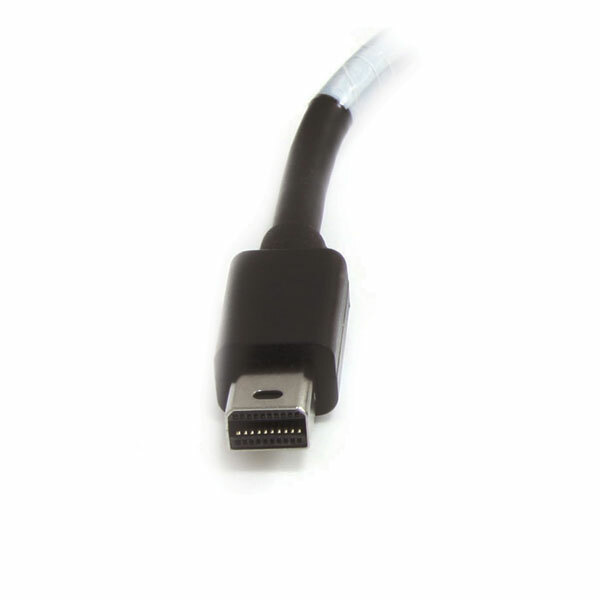

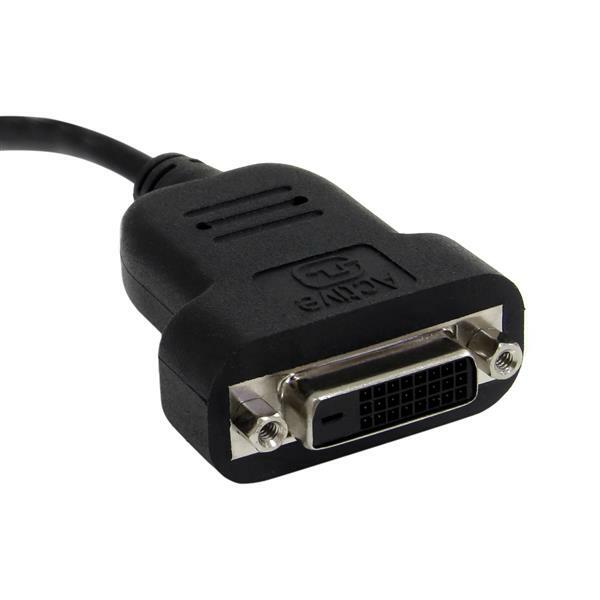

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.


Applications

  • Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
  • Keep your existing DVI monitor to be used with your new Mini DisplayPort device
  • Perfect for larger format screens that use high DVI resolutions
+ More- Less

(MDP2DVIS)

Warranty Information
Warranty 3 Years
Hardware
Active or Passive Adapter Active
Adapter Style Adapters
Audio No
AV Input Mini-DisplayPort
AV Output DVI
Fire Rating LSZH Rated (Low Smoke Zero Halogen)
Industry Standards HDCP 1.3
DisplayPort 1.1
DDWG 1.0
Performance
Maximum Digital Resolutions 1920x1200
Wide Screen Supported Yes
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - DVI-D (25 pin) Female
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 70°C (32°F to 158°F)
Physical Characteristics
Cable Length 4.7 in [12 cm]
Color Black
Product Height 0.8 in [2 cm]
Product Length 7.9 in [20 cm]
Product Width 1.7 in [44 mm]
Weight of Product 1.3 oz [38 g]
Packaging Information
Package Height 0.7 in [19 mm]
Package Length 8.7 in [22 cm]
Package Width 7.9 in [20 cm]
Shipping (Package) Weight 1.7 oz [47 g]
What's in the Box
Included in Package 1 - Mini-DisplayPort to DVI Adapter
SKU MDP2DVIS
Barcode # 65030842334
Brand Startech
Shipping Weight 0.5000kg
Manufacturer Warranty: 2 Years Limited Warranty
