StarTech.com · MDP2DVI

StarTech MDP2DVI Mini DisplayPort to DVI Passive Adapter

Mini DisplayPort to DVI Passive Adapter designed for professional IT, electronics, security or workstation use.

Quick answer: MDP2DVI connects a DP++ Mini DisplayPort source to a DVI display at up to 1920 × 1200 or 1080p.

Best forReusing a DVI monitor or projector with a Mini DisplayPort laptop, desktop or compatible DisplayPort-over-Thunderbolt source.

Check before orderingA DP++ Mini DisplayPort source is required for passive DVI signal pass-through; the adapter does not carry audio.

Answers before you buy

What is StarTech MDP2DVI?

It is a passive Mini DisplayPort-to-DVI display adapter that connects a DP++ Mini DisplayPort source to a DVI display at up to 1920 × 1200 or 1080p.

Which connections or mounting method are provided?

Mini DisplayPort 20-pin male to DVI-I 29-pin female

What performance is specified?

Up to 1920 × 1200 or 1080p; passive conversion; no audio

How is the product constructed?

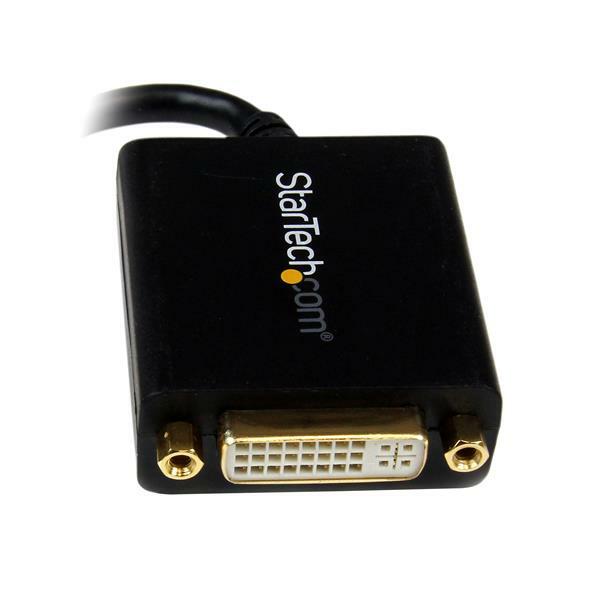

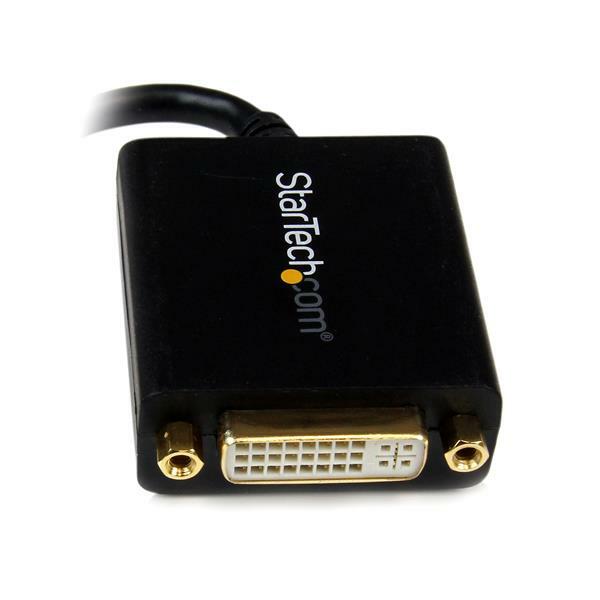

Compact black adapter with a 13cm attached cable and plug-and-play operation

Does this adapter require DP++?

Yes. The video source must provide a DP++ Mini DisplayPort output for passive DVI signal pass-through.

Does it support audio?

No. The supplied specification lists audio support as no.

What should be checked before ordering?

A DP++ Mini DisplayPort source is required for passive DVI signal pass-through; the adapter does not carry audio.

What warranty applies?

MDP2DVI carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDP2DVI)

Features & highlights

Why choose MDP2DVI?

?Purpose-built designMini DisplayPort 20-pin male to DVI-I 29-pin female

?Specified performanceUp to 1920 × 1200 or 1080p; passive conversion; no audio

?Professional constructionCompact black adapter with a 13cm attached cable and plug-and-play operation

?Key capabilityPassive, driver-free design provides a simple connection to an existing DVI display.

?Deployment advantageThe exact DeviceDeal page includes a product video for this adapter.

?Order with confidenceA DP++ Mini DisplayPort source is required for passive DVI signal pass-through; the adapter does not carry audio.

Compatibility reminder: A DP++ Mini DisplayPort source is required for passive DVI signal pass-through; the adapter does not carry audio.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Active or Passive Adapter	Passive
Adapter Style	Adapters
Audio	No
AV Input	DisplayPort
AV Output	DVI
Performance
Maximum Digital Resolutions	1920x1200 / 1080p
Connector(s)

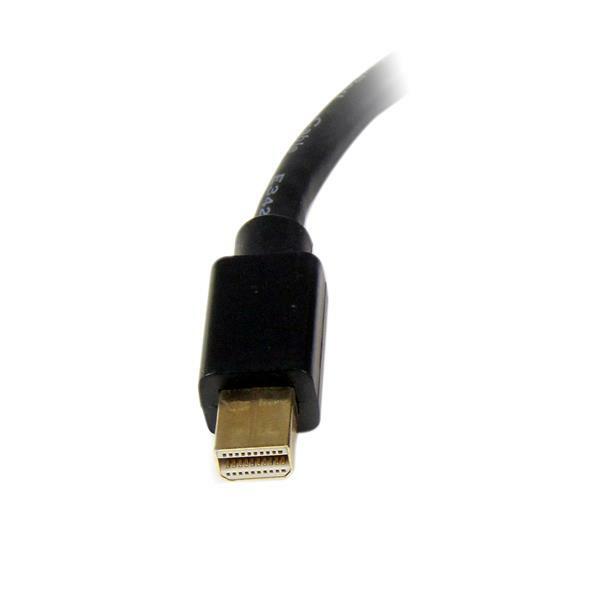

Connector A	1 - Mini-DisplayPort (20 pin) Male
Connector B	1 - DVI-I (29 pin) Female
Special Notes / Requirements
System and Cable Requirements	DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI signal pass-through
Physical Characteristics
Cable Length	5.1 in [13 cm]
Color	Black
Product Height	0.4 in [1.1 cm]
Product Length	7.3 in [18.5 cm]
Product Width	1.4 in [35 mm]
Weight of Product	1.1 oz [31 g]
Packaging Information
Package Height	0.7 in [18 mm]
Package Length	8.7 in [22 cm]
Package Width	7.9 in [20 cm]
Shipping (Package) Weight	1.4 oz [40 g]
What's in the Box
Included in Package	1 - Mini-DisplayPort to DVI Converter

Sources: https://www.devicedeal.com.au/startech-mini-displayport-to-dvi-video-adapter-con and https://www.startech.com/

Manufacturer warranty

3 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 3-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
