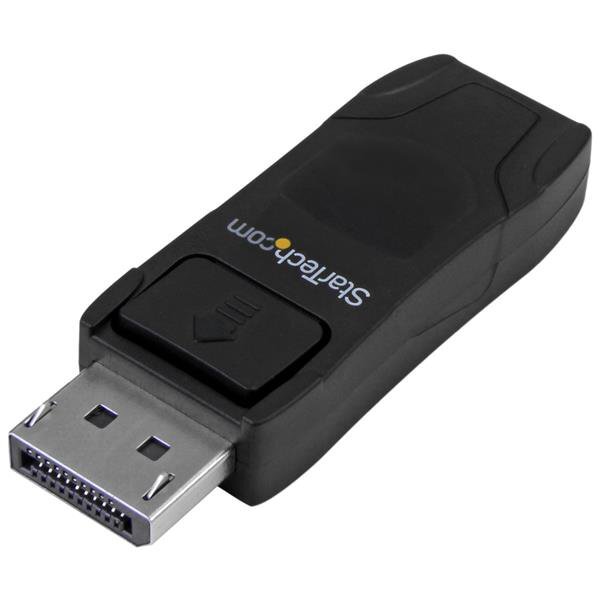

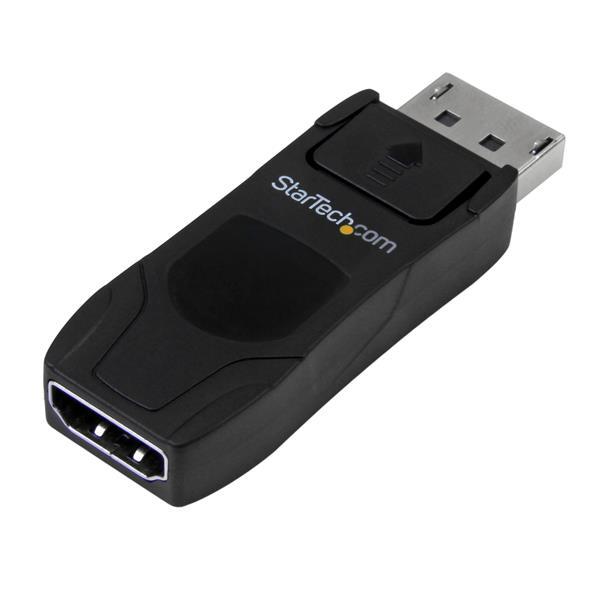

STARTECH.COM | DP2HD4KADAP

Passive DisplayPort to HDMI Adapter for 4K 30Hz

Connect a DisplayPort computer to an HDMI monitor, TV or projector with a compact passive adapter supporting up to 4K 30Hz.

4K 30Hz HDMI output

Supports one HDMI display at up to 4K 30Hz, plus compatible lower-resolution modes.

DP++ source required

Passive conversion requires a DP++ dual-mode DisplayPort output.

Compact cable-free design

Connects directly to an HDMI cable for a small permanent or travel setup.

What to know

This is a one-way DisplayPort-source to HDMI-display adapter. The source must provide DP++ dual-mode DisplayPort. Audio pass-through depends on the source and display.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 3-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP2HD4KADAP connect?

It connects a full-size DisplayPort output on a computer to an HDMI cable and display, television or projector.

What maximum resolution does the DP2HD4KADAP support?

It supports up to 4K 30Hz, plus compatible lower-resolution modes.

Does the DP2HD4KADAP require DP++?

Yes. It is a passive adapter and requires a DP++ dual-mode DisplayPort source.

Does the DP2HD4KADAP carry audio?

Yes. It supports up to 7.1-channel HDMI audio when the source and display support audio over their video connection.

Does the DP2HD4KADAP require drivers?

No. It is operating-system independent and does not require software or drivers.

Does the DP2HD4KADAP require external power?

No. It does not use a separate power adapter.

Can the DP2HD4KADAP convert HDMI output to DisplayPort input?

No. It works in one direction from a DisplayPort source to an HDMI display.

What warranty applies to the DP2HD4KADAP?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2HD4KADAP)

Features and highlights

Passive DisplayPort 1.2 male to HDMI 1.4 female adapter
Supports up to 4K 30Hz
Requires a DP++ dual-mode DisplayPort source
Supports one HDMI display and lower-resolution modes
Up to 7.1-channel HDMI audio with compatible source and display
HDCP 1.4 support
Compact cable-free form factor
No drivers or external power adapter required
One-way conversion from DisplayPort source to HDMI display
3-year StarTech.com manufacturer warranty

Compatibility check: Connect from DisplayPort source to HDMI display only. Confirm that the source port supports DP++ before purchase. Maximum resolution and audio depend on the connected source, HDMI cable and display.

Specifications

Product type	Passive DisplayPort to HDMI adapter
Source connector	1 × DisplayPort 1.2 male, 20-pin
Display connector	1 × HDMI 1.4 female, 19-pin
Maximum resolution	4K 30Hz
Source requirement	DP++ dual-mode DisplayPort output
Displays supported	1
Audio	Up to 7.1-channel HDMI audio with compatible source and display
Content protection	HDCP 1.4
Physical design	Compact cable-free adapter
Direction	DisplayPort source to HDMI display only
Power and software	No external power adapter or drivers required
Product weight	Approximately 7.5g; 63.5 × 20.3 × 10.2mm
In the box	1 × DisplayPort to HDMI adapter
Warranty	3-year StarTech.com manufacturer warranty

SKU	DP2HD4KADAP
Barcode #	65030861908
Brand	Startech
Shipping Weight	0.3000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.140m
Shipping Cubic	0.000700000m3

Warranty and Australian supply

DP2HD4KADAP is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
