StarTech.com · CDP2DP14UCPB

StarTech USB-C to DisplayPort 1.4 Adapter with 60W PD

Connect one DisplayPort 1.4 display and charge a compatible USB-C host through the same adapter with up to 60W PD.

DisplayPort 1.4Up to 8K 60HzHBR3 · 32.4Gbps60W PD

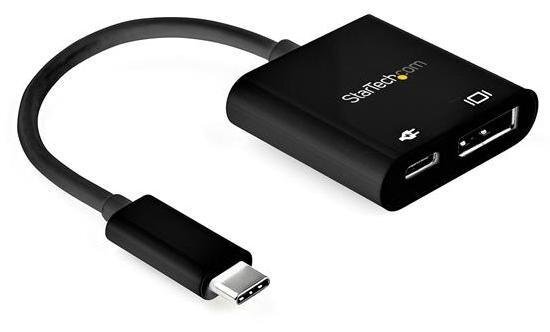

StarTech CDP2DP14UCPB usb-c to displayport 1.4 adapter with power delivery

Product overview

CDP2DP14UCPB combines up to 8K 60Hz video, HBR3, HDR, DSC and a signal booster with a separate USB-C charging input. The host must support DP Alt Mode.

Features that matter

Up to 8K 60Hz

DisplayPort 1.4 video supports 8K 60Hz, plus 4K 120Hz support with compatible source and display hardware.

Direct USB-C to DisplayPort output

Connect a USB-C DisplayPort Alt Mode host directly to one DisplayPort display through the DisplayPort female port.

Active signal booster

An integrated video signal booster supports reliable high-resolution output across the complete cable or adapter connection.

Video with pass-through charging

A separate USB-C power input supports up to 60W pass-through charging while video is connected.

What to know before ordering

Host and display requirements

The USB-C host must support DisplayPort Alt Mode. DisplayPort 1.4 support is required end to end for 8K output.

Resolution depends on the full setup

Maximum resolution and refresh rate require the source, display and DisplayPort 1.4 link to support the stated mode.

Charging equipment required

Pass-through charging requires a compatible USB-C charger and host. The adapter supports up to 60W even though the charging connector is physically rated for higher input.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2DP14UCPB?

CDP2DP14UCPB is a usb-c to displayport 1.4 adapter with power delivery for connecting a USB-C DisplayPort Alt Mode host to one DisplayPort display.

What is the maximum resolution?

The verified maximum is 8K 60Hz, with 4K 120Hz support. Actual output depends on the source, display and connection mode.

What must the USB-C port support?

The USB-C host must support DisplayPort Alt Mode. Both source and display must support DisplayPort 1.4 for the highest 8K mode.

Is the connection bidirectional?

No. It is designed for video from a USB-C DP Alt Mode host to a DisplayPort display.

Does it require drivers?

No. It is designed for plug-and-play use with compatible Windows, macOS, iPadOS, ChromeOS and Linux systems.

Does it support Power Delivery?

Yes. A separate USB-C input supports up to 60W pass-through charging with a compatible charger and host.

What is included in the package?

The package contains one USB-C to DisplayPort adapter.

What warranty applies in Australia?

CDP2DP14UCPB is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
