StarTech Mini DisplayPort 1.2 to VGA Adapter - MDP2VGA2
Model # MDP2VGA2
-
SKU: MDP2VGA2
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

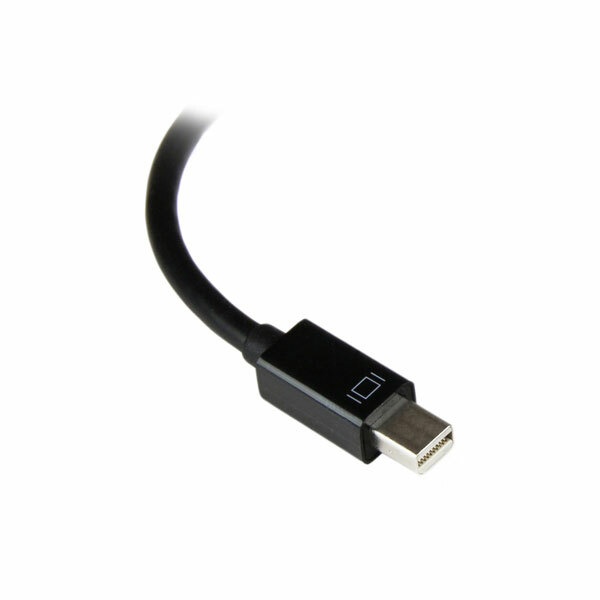

StarTech MDP2VGA2 Active Mini DisplayPort 1.2 to VGA Adapter
Active Mini DisplayPort 1.2 to VGA Adapter designed for professional IT, electronics, security or workstation use.
Frequently asked questions
What is StarTech MDP2VGA2?
It is a active Mini DisplayPort-to-VGA video adapter that connects a Mini DisplayPort source to a VGA display at up to 1920 × 1200 without requiring DP++.
Which connections or mounting method are provided?
Mini DisplayPort 20-pin male input to VGA 15-pin female output
What performance is specified?
Active conversion; analog output up to 1920 × 1200 or 1080p; no audio
How is the product constructed?
Compact black adapter with a 180mm attached lead and Analogix ANX9833 chipset
What maximum resolution is supported?
The supplied specification lists analog output up to 1920 × 1200 or 1080p.
Does the adapter support audio?
No. VGA carries video only and the supplied specification lists audio support as no.
What should be checked before ordering?
The adapter carries video only and requires a separate VGA cable; confirm the display supports the requested resolution.
What warranty applies?
MDP2VGA2 carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(MDP2VGA2)
Why choose MDP2VGA2?
MDP2VGA2 specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | 3 Years |
| Hardware | |
| Active or Passive Adapter | Active |
| Adapter Style | Adapters |
| Audio | No |
| AV Input | DisplayPort |
| AV Output | VGA |
| Chipset ID | Analogix - ANX9833 |
| Performance | |
| Maximum Analog Resolutions | 1920x1200 / 1080p (output) |
| Maximum Digital Resolutions | 1920x1200 / 1080p (input) |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female |
| Environmental | |
| Humidity | 10%-85%RH |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Physical Characteristics | |
| Cable Length | 7.1 in [180 mm] |
| Color | Black |
| Product Height | 0.3 in [0.8 cm] |
| Product Length | 8.7 in [22 cm] |
| Product Width | 1.4 in [35 mm] |
| Weight of Product | 1 oz [27 g] |
| Packaging Information | |
| Package Height | 0.7 in [18 mm] |
| Package Length | 8.7 in [22 cm] |
| Package Width | 7.9 in [20 cm] |
| Shipping (Package) Weight | 1.3 oz [36 g] |
| What's in the Box | |
| Included in Package | 1 - Mini DisplayPort 1.2 to VGA Adapter |
Sources: https://www.devicedeal.com.au/startech-mini-displayport-1.2-to-vga-adapter and https://www.startech.com/
| SKU | MDP2VGA2 |
| Barcode # | 65030854283 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001100000m3 |
