4K 60Hz HDR10
Supports 4096 x 2160 and 3840 x 2160 at 60Hz, HDR10, 18Gbps bandwidth and 4:4:4 chroma with compatible equipment.
StarTech USB-C to HDMI Adapter, HDR 4K 60Hz, USB C to HDMI Converter - CDP2HD4K60H
Model # CDP2HD4K60H
-
SKU: CDP2HD4K60H
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2HD4K60H

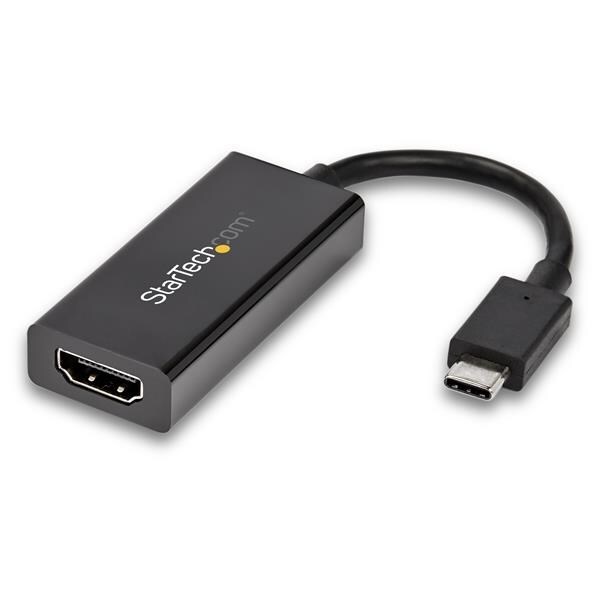

StarTech USB-C to HDMI 2.0b Adapter - 4K 60Hz HDR10
Connect a compatible USB-C host to an HDMI 2.0b display with 4K 60Hz, HDR10, 18Gbps bandwidth and 4:4:4 chroma support.
67mm attached cable4K 60Hz HDR10HDMI 2.0b3-year warranty
Product overview
CDP2HD4K60H is an active USB-C to HDMI 2.0b adapter for HDR workflows, digital signage and high-detail presentations. It supports one display and requires DP Alt Mode.
Features that matter
HDR-ready HDMI 2.0b output
The active adapter supports HDR10, HDCP 2.2 and HDMI 2.0b for compatible monitors, projectors and televisions.
Driverless connection
The adapter is designed for plug-and-play operation with a compatible USB-C DP Alt Mode host.
Colour and audio capability
Supports RGB and YCbCr 4:4:4 colour formats plus up to 7.1-channel HDMI audio, subject to host GPU capability.
What to know before ordering
Host requirement
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output. A USB-C connector alone does not confirm video support.
HDR and GPU requirements
HDR requires a host with DisplayPort 1.4 over USB-C and an HDMI 2.0b HDR display. NVIDIA graphics may limit 4:4:4 chroma and 5.1/7.1 audio with this adapter.
Power Delivery
This product does not provide USB-C Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2HD4K60H?
CDP2HD4K60H is a usb-c to hdmi 2.0b hdr adapter for connecting a compatible USB-C DP Alt Mode host to one HDMI display.
What resolution does it support?
The verified maximum is 4096 x 2160 at 60Hz, with 3840 x 2160 at 60Hz also supported.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
What is required for HDR?
The host USB-C port must carry DisplayPort 1.4 video and the destination display must support HDMI 2.0b HDR.
Does it carry audio?
Yes. The official specification lists HDMI 7.1-channel audio, although some NVIDIA graphics configurations may limit 5.1/7.1 output with this adapter.
Does it support Power Delivery?
No. It does not provide USB-C Power Delivery pass-through.
What is included in the package?
The package contains one USB-C to HDMI adapter.
What warranty applies in Australia?
CDP2HD4K60H is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2HD4K60H)
Features and highlights
CDP2HD4K60H key capabilities
Product-specific highlights verified for this exact StarTech.com model.
4K 60Hz HDR10
Supports 4096 x 2160 and 3840 x 2160 at 60Hz, HDR10, 18Gbps bandwidth and 4:4:4 chroma with compatible equipment.
HDR-ready HDMI 2.0b output
The active adapter supports HDR10, HDCP 2.2 and HDMI 2.0b for compatible monitors, projectors and televisions.
Driverless connection
The adapter is designed for plug-and-play operation with a compatible USB-C DP Alt Mode host.
Colour and audio capability
Supports RGB and YCbCr 4:4:4 colour formats plus up to 7.1-channel HDMI audio, subject to host GPU capability.
Key highlights
- Portable adapter with 67mm attached cable
- USB-C DP Alt Mode to HDMI 2.0b
- Up to 4096 x 2160 at 60Hz
- HDMI 7.1-channel audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2HD4K60H
Verified specifications and package details for the exact model.
General and Connectivity
Product type
Active USB-C to HDMI 2.0b HDR adapter
Host connector
USB-C DP Alt Mode male
Display connector
HDMI 2.0 female
Displays supported
1
Attached cable length
67mm
Warranty
3 Years
UPC
065030879712
Video and Audio
Maximum resolutions
4096 x 2160 at 60Hz; 3840 x 2160 at 60Hz
Video revision
HDMI 2.0b
Bandwidth
18Gbps
HDR support
HDR10
Colour support
RGB 8/10-bit; YCbCr 4:4:4 8/10-bit
Content protection
HDCP 2.2
Audio
HDMI 7.1-channel audio
Maximum HDMI cable distance
7m
Power Delivery
No PD pass-through
Hardware and Requirements
Chipset
MegaChips MCDP2900
Host requirement
USB-C DisplayPort Alt Mode
HDR host requirement
DisplayPort 1.4 over USB-C
NVIDIA note
Some NVIDIA graphics adapters may not support 4:4:4 chroma and 5.1/7.1 audio with this adapter
Physical and Environmental
Colour
Black
Material
Plastic
Product dimensions (L x W x H)
150 x 25 x 11mm
Product weight
25g
Operating temperature
535°C
Storage temperature
-2060°C
Humidity
2560% RH
Packaging and In the Box
Package dimensions (W x D x H)
199 x 106 x 16mm
Package contents
1 x USB-C to HDMI adapter
| SKU | CDP2HD4K60H |
| Barcode # | 65030879712 |
| Brand | STARTECH |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.001m |
| Shipping Height | 0.019m |
| Shipping Length | 0.007m |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2HD4K60H.
