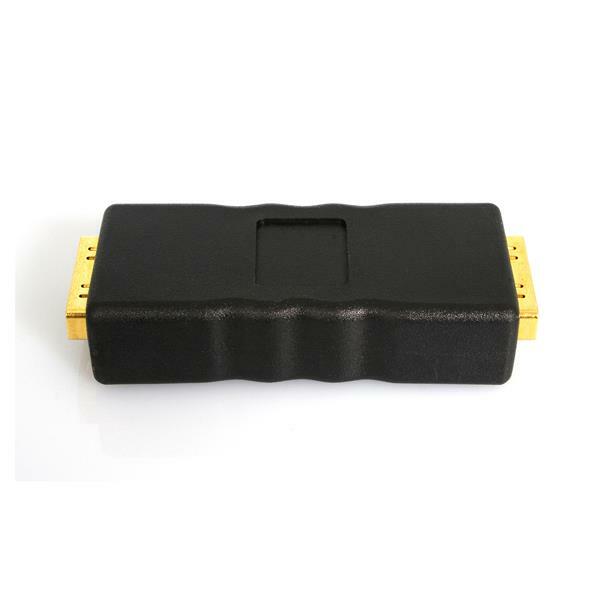

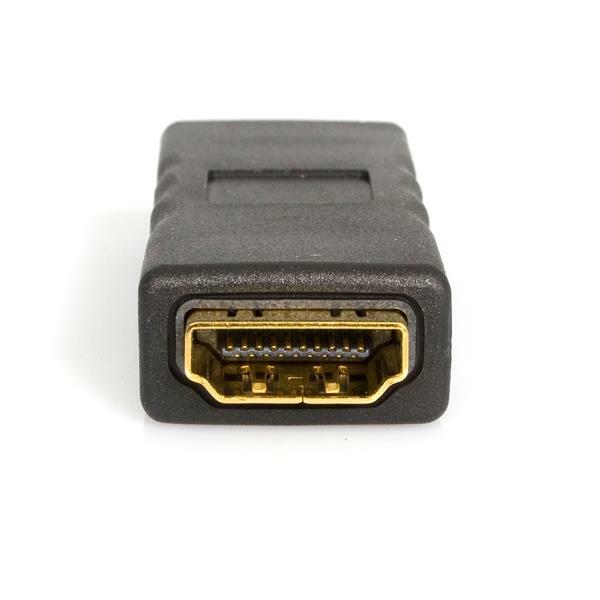

STARTECH.COM | GCHDMIFF

HDMI Female to Female Coupler

Join two male-ended HDMI cables with a compact female-to-female coupler supporting HDMI 1.4b features and verified 4K video modes.

Female-to-female HDMI coupling

Connects two standard male-ended HDMI cables to extend an existing cable run or bridge an installation point.

HDMI 1.4b capability

Supports up to 10.2Gbps bandwidth, 3D video and verified 4K modes when the complete link supports them.

Audio and control support

Passes compatible multichannel audio, ARC, CEC and HDCP 1.4 signals through the joined link.

Passive installation

No power, drivers or software are required; performance depends on the total cable run and connected equipment.

Why this model fits the job

Join two male-ended HDMI cables with a compact female-to-female coupler supporting HDMI 1.4b features and verified 4K video modes. The design focuses on the exact connector, signalling and compatibility requirements shown in the current StarTech.com specification, helping buyers select the right part without relying on broad compatibility claims.

Compatibility checklist

Use two male-ended HDMI cables and ensure every device and cable supports the required resolution, refresh rate and HDMI feature.
Treat the two cables and coupler as one total link; longer runs can reduce the achievable bandwidth or resolution.
This coupler extends a physical HDMI connection and does not convert HDMI to another interface.

Common applications

Join two existing HDMI cables
Bridge an HDMI wall plate or equipment relocation
Keep a compact HDMI extension coupler in an AV service kit

DeviceDeal purchase confidence

Supplied by DeviceDeal for Australian customers with local purchasing support, a tax invoice and the verified Lifetime StarTech.com manufacturer warranty.

Frequently asked questions

What connectors does GCHDMIFF provide?

It has one HDMI female connector at each end for joining two male-ended HDMI cables.

What is the highest verified 4K mode?

It supports 3840 × 2160 at up to 30Hz and 4096 × 2160 at 24Hz when the complete HDMI link supports those modes.

What bandwidth does it support?

The verified maximum HDMI bandwidth is 10.2Gbps.

Does it support audio and ARC?

Yes. It supports up to 8-channel audio plus compatible Audio Return Channel signals.

Does it support CEC and HDCP?

It supports CEC and HDCP 1.4 as part of an otherwise compatible HDMI link.

Does it need power or drivers?

No. The coupler is passive and needs no drivers or external power.

Will two long HDMI cables always maintain 4K?

Not necessarily. Performance depends on the total cable length, cable quality and source/display capabilities.

What warranty applies?

StarTech.com backs GCHDMIFF with a lifetime manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(GCHDMIFF)

Features and highlights

Two HDMI female connectors
HDMI 1.4b compliant passive coupler
Maximum bandwidth up to 10.2Gbps
Supports 3840 × 2160 at 24/25/30Hz and 4096 × 2160 at 24Hz
Supports 1080p at up to 120Hz and 3D video
Supports up to 8-channel audio, ARC and CEC
HDCP 1.4 support
Gold-plated connectors and black PVC housing
No power supply, software or drivers required
Product dimensions: 46 × 22 × 11mm
One coupler supplied
Lifetime StarTech.com manufacturer warranty

Compatibility check: Use two male-ended HDMI cables and ensure every device and cable supports the required resolution, refresh rate and HDMI feature.

Specifications

Product type	HDMI female-to-female coupler
Connector A	1 × HDMI female
Connector B	1 × HDMI female
HDMI version	HDMI 1.4b
Maximum bandwidth	10.2Gbps
Maximum verified resolutions	3840 × 2160 at 24/25/30Hz; 4096 × 2160 at 24Hz
Other video support	1080p up to 120Hz; 3D video
Audio support	Up to 8 channels
Supported features	ARC, CEC and HDCP 1.4
Connector plating	Gold
Housing	Black PVC
Dimensions	46 × 22 × 11mm
Power / drivers	Not required
Package quantity	1 coupler
Warranty	Lifetime

SKU	GCHDMIFF
Barcode #	65030824057
Brand	STARTECH
Shipping Weight	0.0200kg
Shipping Width	0.020m
Shipping Height	0.010m
Shipping Length	0.050m
Shipping Cubic	0.000010000m3

Warranty and Australian supply

GCHDMIFF is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
