Portable VGA expansion
Add a legacy VGA display without opening the computer or carrying an external power supply.
StarTech Slim USB 3.0 to VGA External Video Card - USB32VGAES
Model # USB32VGAES
-
SKU: USB32VGAES
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB32VGAES
StarTech Slim USB 3.0 to VGA Adapter
Add one VGA monitor or projector at up to 1920x1200 from a compatible Windows computer using a slim, USB-powered external graphics adapter.
1920x1200 VGASlim travel designWindows only
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
1920x1200 output
Extend or mirror the Windows desktop at resolutions up to 1920x1200 or 1080p.
USB 5Gbps host link
USB 3.2 Gen 1 bandwidth supports office, presentation, browser and spreadsheet workflows.
Scalable Windows setup
Use up to five compatible adapters on one computer, subject to available system resources.
Australian version with official 3 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Still comparing options? Visit the DeviceDeal Buying Guides for practical product-selection help.
Product videos
Verified videos shown on this exact DeviceDeal product page.
USB32VGAES product overview
USB32VGAES product video
Trigger driver installation
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB32VGAES do?
It adds one VGA display at up to 1920x1200 to a compatible Windows computer through USB-A.
How many displays does it support?
It supports one additional VGA display in extended or mirrored mode.
What is the maximum supported resolution?
It supports up to 1920x1200 or 1080p with compatible VGA displays.
Which connectors does it use?
It has one USB Type-A male 5Gbps host connector and one VGA female output.
Which operating systems are supported?
The current official list includes Windows 11, Windows 11 ARM, Windows 10, Windows 8/8.1, Windows 7, Windows Vista and Windows XP. macOS, ChromeOS and Linux are not supported.
Does it need an external power supply?
No. It is USB bus-powered.
What should I check before purchase?
Confirm a compatible Windows system, administrator rights for driver installation and that VGA 1920x1200 meets the requirement. It is not intended for gaming.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a 3 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB32VGAES)
Features and highlights
StarTech USB32VGAES
Portable VGA expansion
Add a legacy VGA display without opening the computer or carrying an external power supply.
1920x1200 output
Extend or mirror the Windows desktop at resolutions up to 1920x1200 or 1080p.
USB 5Gbps host link
USB 3.2 Gen 1 bandwidth supports office, presentation, browser and spreadsheet workflows.
Scalable Windows setup
Use up to five compatible adapters on one computer, subject to available system resources.
- Trigger T5-302 chipset
- 16MB memory
- 2.4in attached cable
- Current official warranty is three years
Warranty confidence: Australian-version product with a 3 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB32VGAES specifications organised from the supplied product data.
Warranty Information
| Warranty | 3 Years |
|---|
Hardware
| Displays Supported | 1 |
|---|---|
| AV Input | USB 3.2 Gen 1 (5Gbps) |
| AV Output | VGA |
| Memory | 16MB |
| Chipset ID | Trigger T5-302 |
| USB Pass-Through | No |
Performance
| Maximum Analog Resolution | 1920x1200 / 1080p |
|---|---|
| Wide Screen Supported | Yes |
Connector(s)

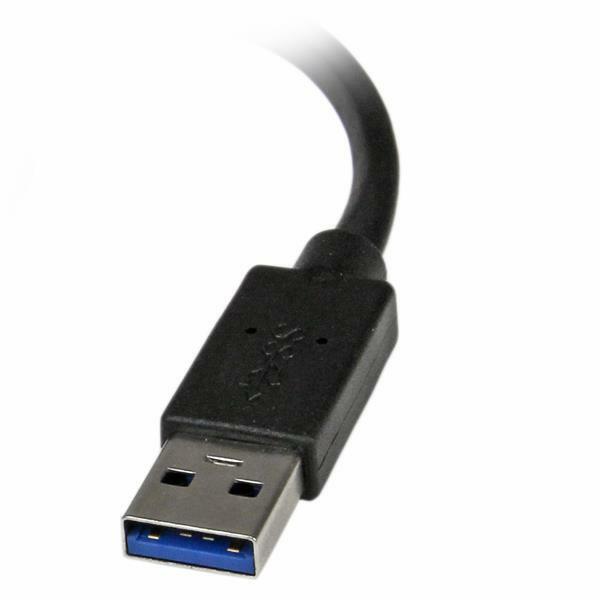

| Host Connector | 1 × USB Type-A male (9 pin, 5Gbps) |
|---|---|

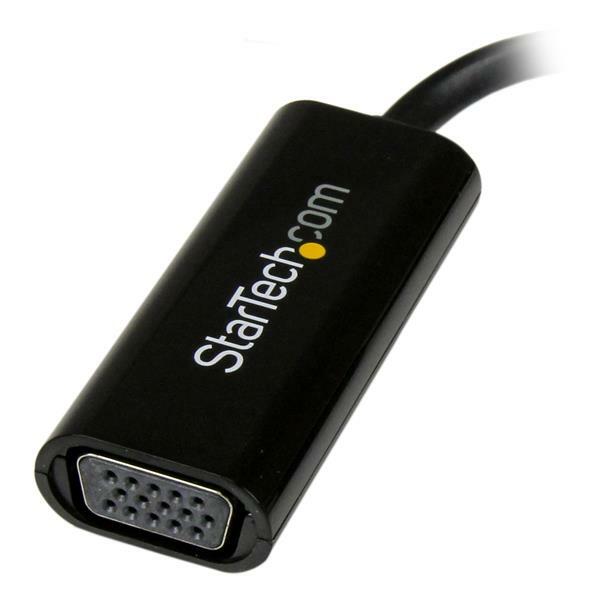

| Display Connector | 1 × VGA female (15 pin) |
Software
| OS Compatibility | Windows 11, Windows 11 ARM, Windows 10, Windows 8/8.1, Windows 7, Windows Vista and Windows XP |
|---|---|
| Microsoft WHQL Certified | Yes |
Special Notes / Requirements
| System Requirements | Quad-core 2.4GHz processor (Core i5 recommended); 4GB RAM |
|---|---|
| Adapter Limit | Up to five compatible USB video adapters, subject to system resources |
| Use Limitation | Not intended for gaming or graphics-intensive applications |
Power
| Power Source | USB-powered |
|---|
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -10°C to 75°C (14°F to 167°F) |
| Humidity | Less than 85% non-condensing |
Physical Characteristics
| Color / Material | Black / Plastic |
|---|---|
| Cable Length | 2.4 in [62mm] |
| Product Size | 7.5 × 1.0 × 0.5 in [19.0 × 2.5 × 1.2cm] |
| Weight | 0.9 oz [25g] |

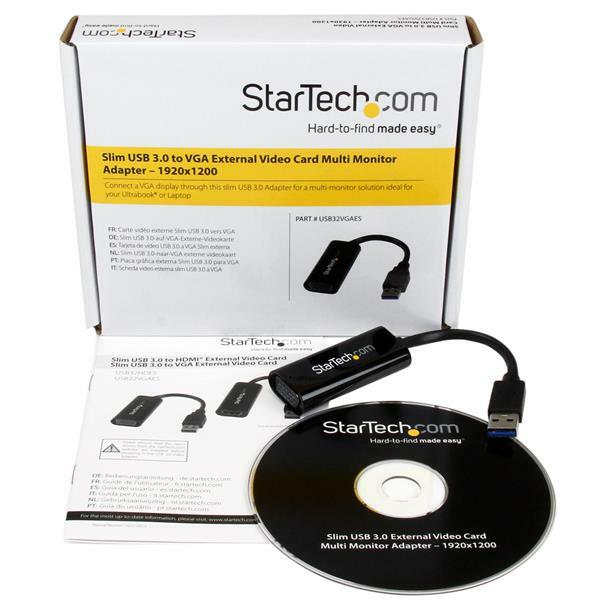

What's in the Box
| Included | 1 × slim USB 3.0 video adapter; 1 × driver CD; 1 × instruction manual |
|---|
| SKU | USB32VGAES |
| Barcode # | 65030854870 |
| Brand | STARTECH |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 3 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
