StarTech DP to DVI Dual Link Active Adapter - DP2DVID2
Model # DP2DVID2
-
SKU: DP2DVID2
- Pick Up Available
- Australian Warranty
- Checkout Securely
Active DisplayPort to Dual-Link DVI Adapter for 2560 × 1600
Connect a DisplayPort computer to a dual-link DVI display at up to 2560 × 1600 with an active adapter powered through its attached USB-A lead.
Active signal conversion
Works with standard DisplayPort and DP++ sources because the adapter performs active DisplayPort-to-DVI conversion.
Dual-link DVI resolution
Supports one compatible dual-link DVI display at up to 2560 × 1600 at 60Hz.
USB-powered operation
An attached USB-A lead supplies the power required by the active conversion electronics.
What to know
For 2560 × 1600, use a dual-link DVI display and dual-link DVI cable. Connect the attached USB-A power lead to a powered USB port. DVI carries video only, so audio requires a separate connection. The adapter works from DisplayPort source to DVI display, not in reverse.
Frequently asked questions
What does the DP2DVID2 connect?
It connects a full-size DisplayPort output on a computer to a dual-link DVI-D input on a monitor or other compatible display.
What maximum resolution does the DP2DVID2 support?
It supports up to 2560 × 1600 at 60Hz when used with a compatible dual-link DVI display and cable.
Does the DP2DVID2 require DP++?
No. Its active conversion works with either a standard DisplayPort output or a DP++ dual-mode DisplayPort output.
Why does the DP2DVID2 have a USB cable?
The attached USB-A lead supplies power to the active conversion electronics and must be connected to a powered USB port.
Does the DP2DVID2 require a dual-link DVI cable?
Yes, a dual-link DVI cable and compatible dual-link DVI display are required for the maximum 2560 × 1600 resolution.
Can the DP2DVID2 carry audio?
No. The DVI connection carries video only, so audio needs a separate path.
Does the DP2DVID2 require drivers?
No. It is a hardware adapter and does not require drivers or software.
What warranty applies to the DP2DVID2?
It is backed by a 3-year StarTech.com manufacturer warranty.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2DVID2)
Features and highlights

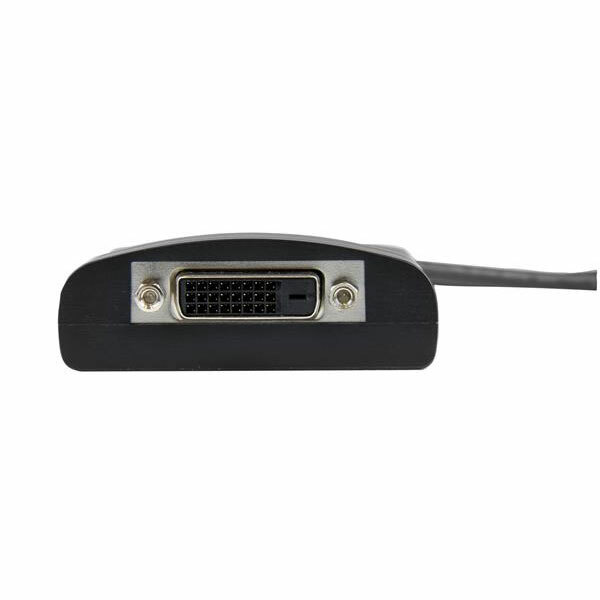

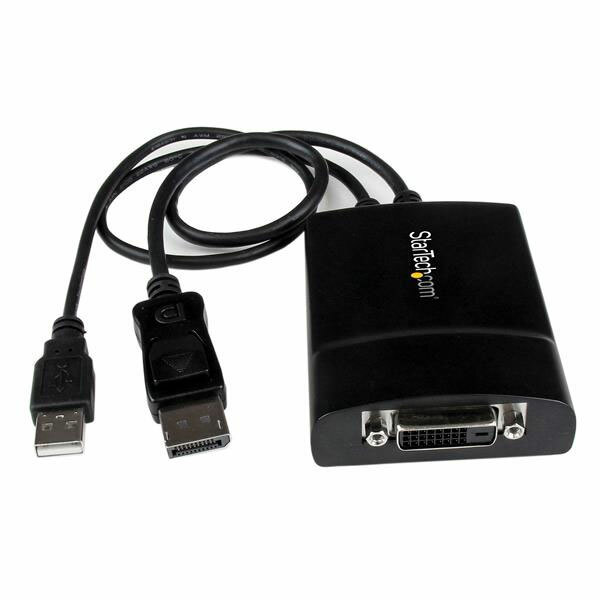

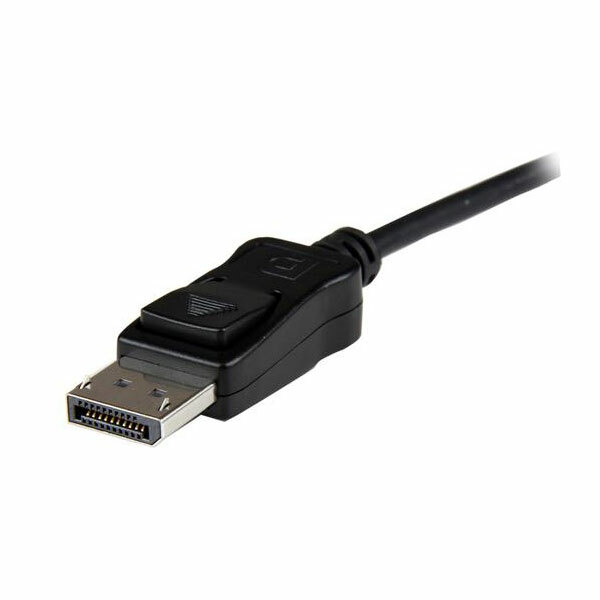

- Active DisplayPort male to dual-link DVI-D female adapter
- Supports up to 2560 × 1600 at 60Hz with a compatible dual-link DVI display
- Works with either standard DisplayPort or DP++ dual-mode DisplayPort sources
- Attached USB-A power lead supports the active conversion electronics
- Supports one display and does not require drivers or software
- Use a dual-link DVI cable and display for the maximum resolution
- Supports a DVI cable run up to 7.6m under the specified conditions
- Video only; DVI does not carry audio
- One-way conversion from DisplayPort source to DVI display
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to dual-link DVI-D adapter |
|---|---|
| Source connections | 1 × DisplayPort male, 20-pin; 1 × USB-A male for power |
| Display connector | 1 × dual-link DVI-D female, 25-pin |
| Maximum resolution | 2560 × 1600 at 60Hz with compatible dual-link DVI equipment |
| DisplayPort source support | Standard DisplayPort or DP++ dual-mode DisplayPort |
| Displays supported | 1 |
| Direction | DisplayPort source to DVI display only |
| Power | USB bus powered through attached USB-A lead |
| USB cable length | Approximately 46cm |
| Maximum DVI cable length | Up to 7.6m under the specified conditions |
| Audio | Video only; DVI does not carry audio |
| Software | No drivers or software required |
| In the box | 1 × active DisplayPort to dual-link DVI adapter |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2DVID2 |
| Barcode # | 65030848749 |
| Brand | STARTECH |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
