StarTech.com SVID2USB232

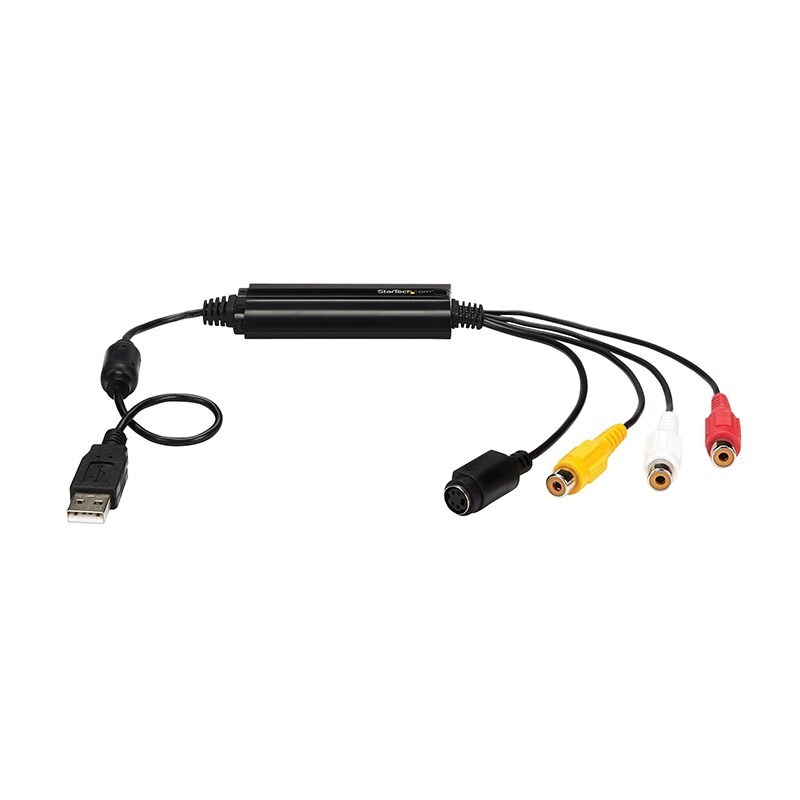

StarTech SVID2USB232 USB Video Capture Adapter Cable

Capture composite or S-Video sources with stereo audio to a Windows computer over USB 2.0, with support for NTSC, PAL and SECAM analog video.

USB 2.0Composite + S-VideoStereo RCA audio2-year warranty

StarTech SVID2USB232 USB analog video capture adapter

Analog video to USB

Captures composite or S-Video plus stereo RCA audio to a Windows computer through USB 2.0.

NTSC, PAL and SECAM

Supports common analog video standards for legacy video sources.

Up to 720×576 PAL

Supports up to 720×480 for NTSC and 720×576 for PAL capture.

TWAIN and DirectShow

TWAIN support and DirectShow compatibility help it work with supported Windows capture software.

MPEG encoding support

Supports MPEG-1, MPEG-2 and MPEG-4 video encoding.

Portable cable design

Compact bus-powered capture hardware with a 26 cm attached cable.

What to know before you buy

Windows onlyThis converter is for Windows-based devices and is not compatible with macOS.

Typical sourcesSuitable for capturing video from devices such as VCRs and camcorders with composite or S-Video output.

Software requirementUse supported Windows capture software and the appropriate StarTech driver/software package for the device.

Australian version with official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What does the StarTech SVID2USB232 do?

It converts analog composite or S-Video, together with stereo RCA audio, into a USB 2.0 capture source for a Windows computer.

What video inputs does it support?

It supports composite video and S-Video, plus stereo audio through two RCA connectors.

What is the maximum analog capture resolution?

The maximum listed analog resolutions are 720×480 for NTSC and 720×576 for PAL.

Which analog video standards are supported?

The SVID2USB232 supports NTSC, PAL and SECAM.

Does it support MPEG encoding?

Yes. The supplied specifications list MPEG-1, MPEG-2 and MPEG-4 video encoding support.

Can I use the SVID2USB232 with a Mac?

No. StarTech specifies this converter for Windows-based devices and states that it is not compatible with macOS.

What is included in the package?

The package includes the USB 2.0 capture device, user guide, software CD and driver CD.

What warranty applies in Australia?

The Australian-version SVID2USB232 supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

(SVID2USB232)

Features and highlights

Analog video to USB

Captures composite or S-Video plus stereo RCA audio to a Windows computer through USB 2.0.

NTSC, PAL and SECAM

Supports common analog video standards for legacy video sources.

Up to 720×576 PAL

Supports up to 720×480 for NTSC and 720×576 for PAL capture.

TWAIN and DirectShow

TWAIN support and DirectShow compatibility help it work with supported Windows capture software.

MPEG encoding support

Supports MPEG-1, MPEG-2 and MPEG-4 video encoding.

Portable cable design

Compact bus-powered capture hardware with a 26 cm attached cable.

Key highlights

USB 2.0
Composite + S-Video
Stereo RCA audio
2 Years warranty

Warranty confidence

Official StarTech.com 2 years manufacturer warranty in Australia for this Australian-version product, subject to StarTech.com terms and assessment.

Specifications

StarTech SVID2USB232

Warranty Information

Warranty	2 Years

Hardware

AV Input	Composite Audio RCA S-Video
AV Output	USB
Audio	Yes
Industry Standards	NTSC, PAL, SECAM Video Encoding: MPEG 1, MPEG 2, and MPEG 4 DirectShow Compatible
Chipset ID	EM28281

Performance

Maximum Data Transfer Rate	480Mbps
Maximum Analog Resolutions	720x480 (NTSC) / 720x576 (PAL)

Connector(s)

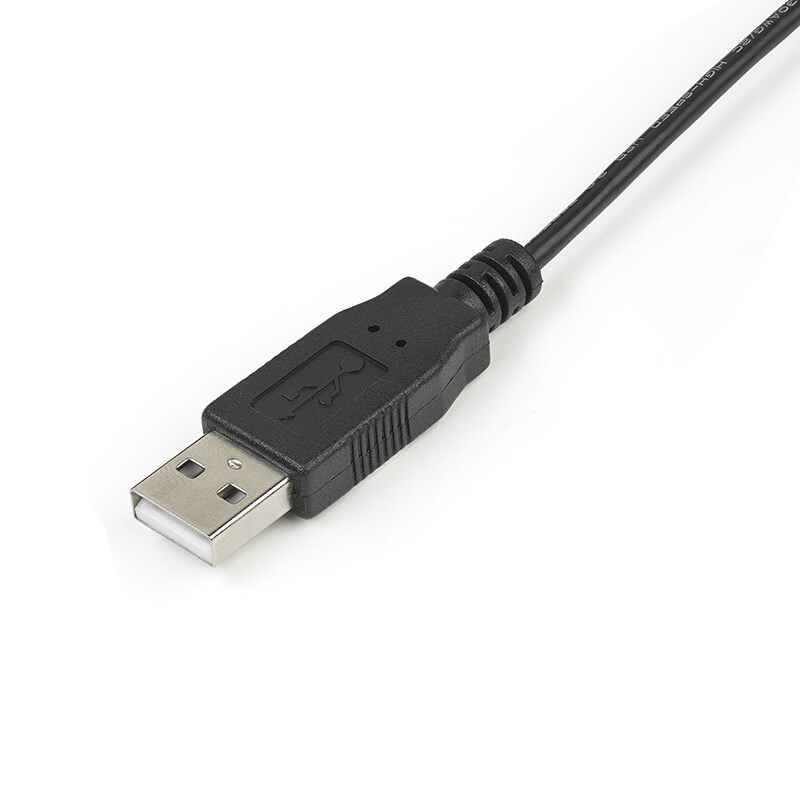

Connector A	1 - USB Type-A (4 pin) USB 2.0

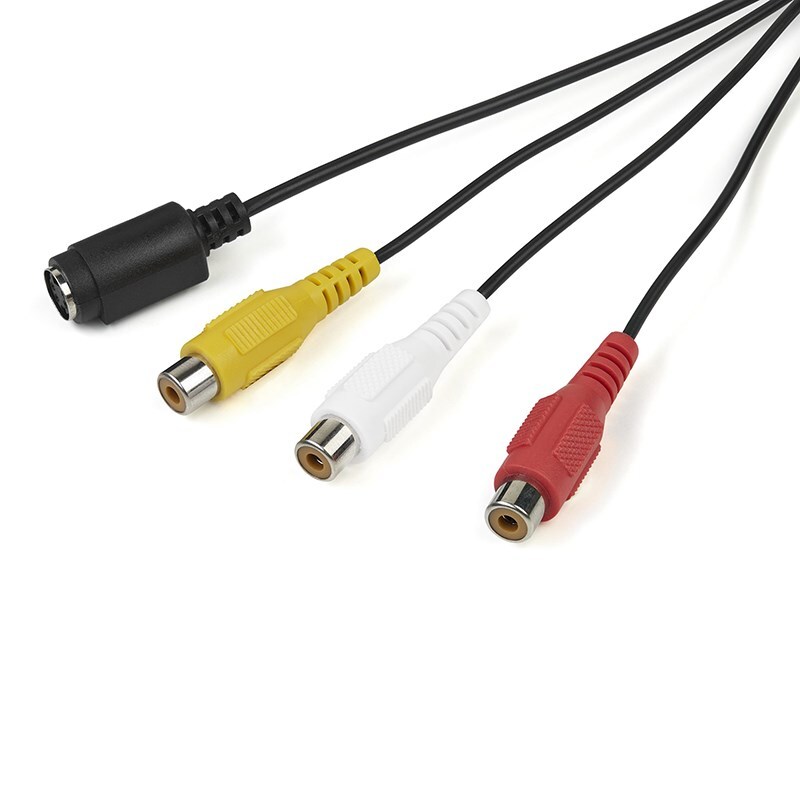

Connector B	1 - Composite Video (1 x RCA) 1 - S-Video (4 pin, Mini-DIN) 1 - Stereo Audio (2 x RCA)

Software

OS Compatibility	Windows 7, 8, 10, 11

Special Notes / Requirements

Note	This converter is for use with Windows-based devices only and is not compatible with macOS.

Environmental

Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	5~85% RH Non-condensing

Physical Characteristics

Color	Black
Material	Plastic
Cable Length	10.2 in [26 cm]
Product Length	3.9 in [100 mm]
Product Width	1.4 in [35 mm]
Product Height	0.6 in [14 mm]
Weight of Product	2.5 oz [70 g]

Packaging Information

Package Height	1.6 in [40 mm]
Package Length	8.3 in [21 cm]
Package Width	5.7 in [14.5 cm]
Shipping (Package) Weight	6.1 oz [174 g]

What's in the Box

Included in Package	1 - USB 2.0 Capture Device 1 - User Guide 1 - Software CD 1 - Driver CD

SKU	SVID2USB232
Barcode #	65030875547
Brand	Startech
Shipping Weight	0.2000kg
Shipping Width	0.150m
Shipping Height	0.040m
Shipping Length	0.210m
