4K 60Hz Mini DisplayPort
Connect one compatible Mini DisplayPort display at up to 3840 x 2160 at 60Hz, with lower resolutions also supported.
Startech CDP2MDPEC USB C TO MINI DISPLAYPORT ADAPTER 4K60HZ
Model # CDP2MDPEC
-
SKU: CDP2MDPEC
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2MDPEC

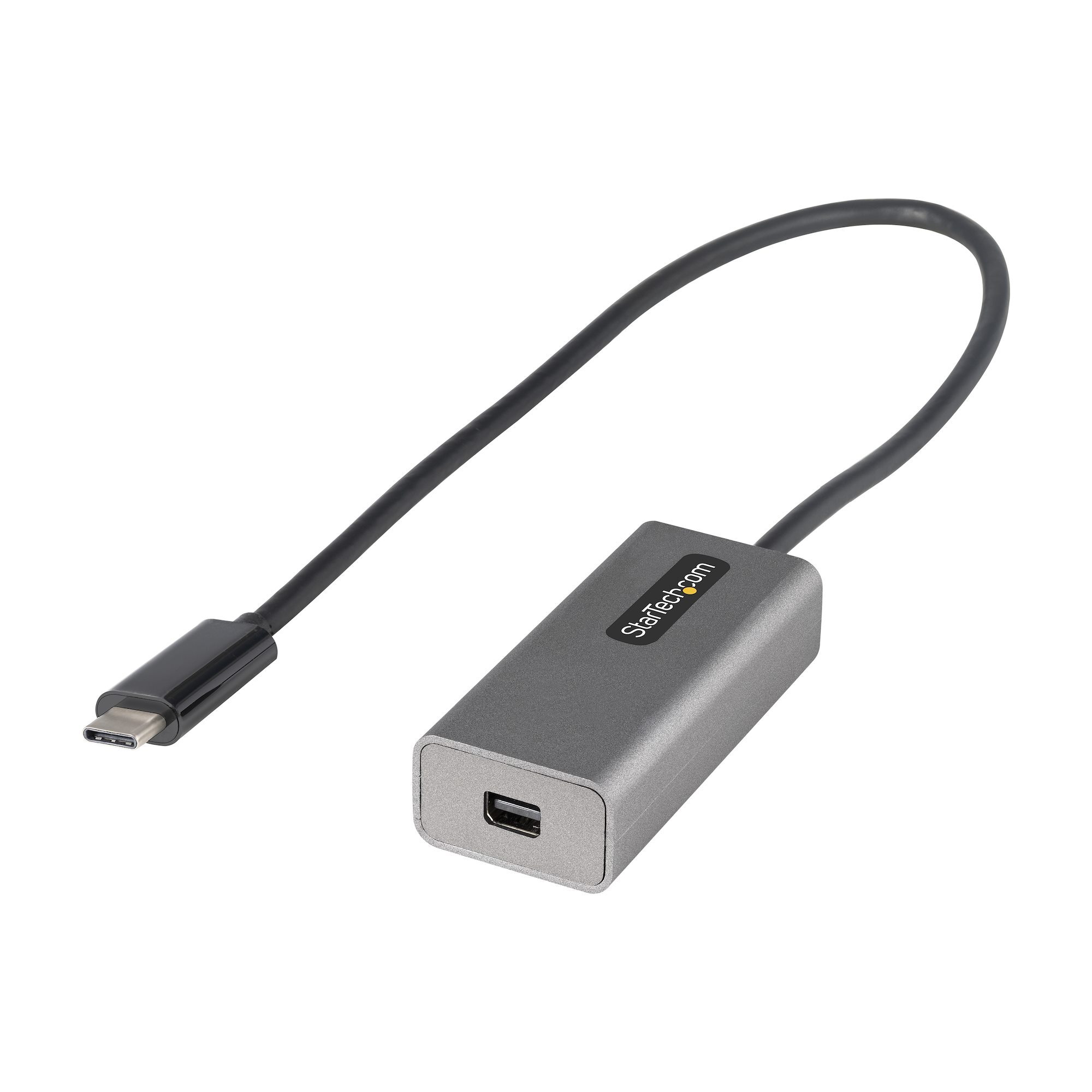

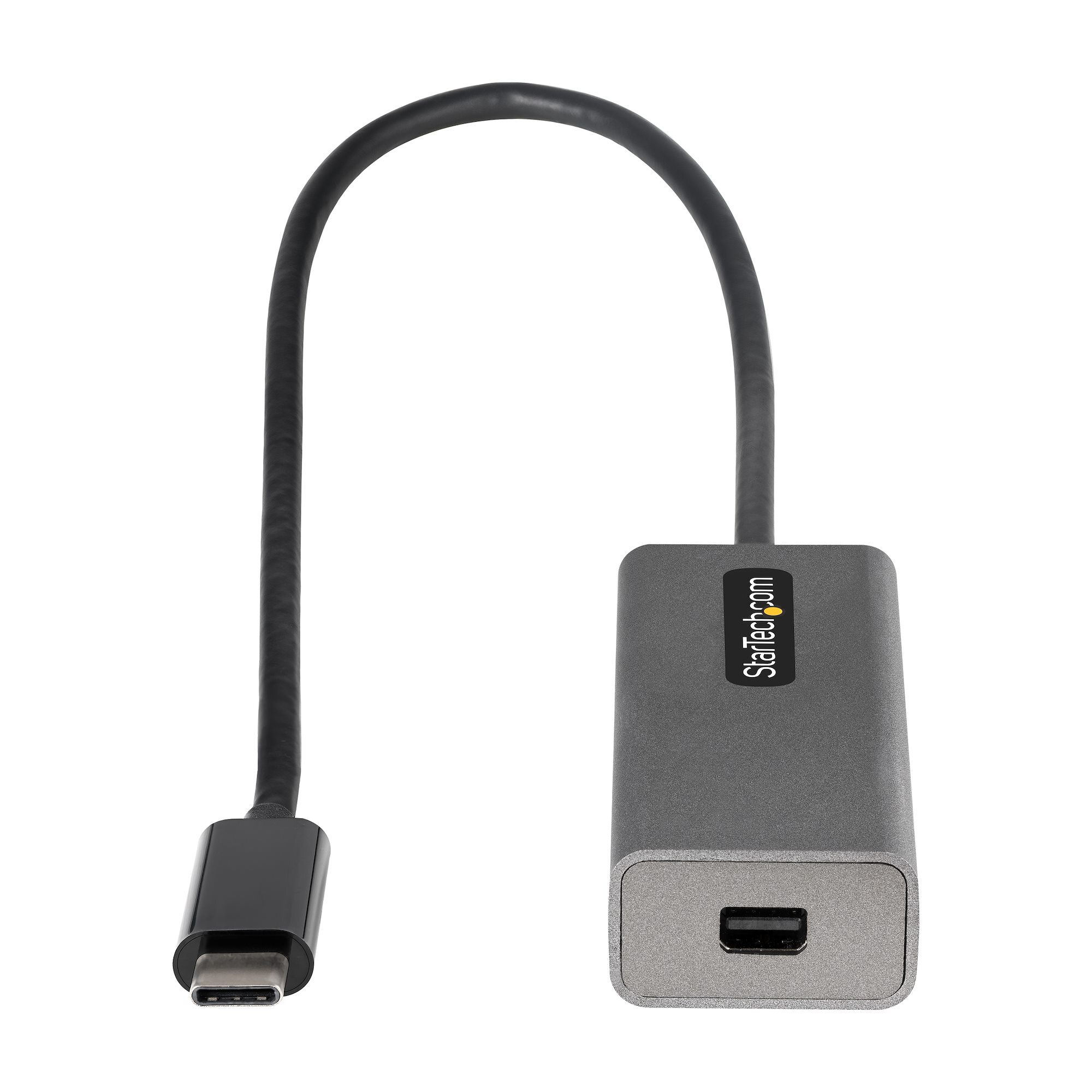

StarTech USB-C to Mini DisplayPort Adapter - 4K 60Hz - 30cm
Connect one Mini DisplayPort monitor to a USB-C DP Alt Mode host with a 306mm attached cable supporting 4K 60Hz.
Mini DisplayPort 1.24K 60Hz306mm cable3-year warranty
Product overview
CDP2MDPEC is the longer-cable upgrade to CDP2MDP. It provides Mini DisplayPort 1.2 HBR2 video and two-channel audio without a separate driver.
Features that matter
Attached host cable
306mm cable attached USB-C cable provides extra reach for 2-in-1 devices and laptops positioned on stands.
Direct single-mode output
Provides a direct Mini DisplayPort signal for one display with HDCP support and no Power Delivery pass-through.
Driverless, OS-independent design
Works without an additional display driver when the USB-C or Thunderbolt host supports DisplayPort Alt Mode.
What to know before ordering
Host requirement
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.
Display and adapter limitation
The Mini DisplayPort output is single-mode and cannot be converted again with Mini DisplayPort-to-HDMI, VGA or DVI adapters.
Thunderbolt display warning
This is a Mini DisplayPort video adapter, not a Thunderbolt display adapter. It does not support Thunderbolt monitors such as Apple Thunderbolt Display A1407.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2MDPEC?
CDP2MDPEC is a USB-C to Mini DisplayPort adapter for connecting one DP Alt Mode host to a Mini DisplayPort display.
What is the maximum resolution?
The verified maximum is 3840 x 2160 at 60Hz. Lower resolutions and refresh rates may also be supported.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
Can another video adapter be connected to its Mini DisplayPort output?
No. The single-mode output does not support Mini DisplayPort-to-HDMI, VGA or DVI adapters.
Does it support Thunderbolt displays?
No. It supports Mini DisplayPort displays, but not Thunderbolt monitors such as Apple Thunderbolt Display A1407.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one USB-C to Mini DisplayPort adapter.
What warranty applies in Australia?
CDP2MDPEC is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2MDPEC)
Features and highlights
CDP2MDPEC key capabilities
Product-specific highlights verified for this exact StarTech.com model.
4K 60Hz Mini DisplayPort
Connect one compatible Mini DisplayPort display at up to 3840 x 2160 at 60Hz, with lower resolutions also supported.
Attached host cable
306mm cable attached USB-C cable provides extra reach for 2-in-1 devices and laptops positioned on stands.
Direct single-mode output
Provides a direct Mini DisplayPort signal for one display with HDCP support and no Power Delivery pass-through.
Driverless, OS-independent design
Works without an additional display driver when the USB-C or Thunderbolt host supports DisplayPort Alt Mode.
Key highlights
- 306mm cable
- Mini DisplayPort 1.2 HBR2
- Up to 4K 60Hz
- Mini DisplayPort 2-channel audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2MDPEC
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to Mini DisplayPort 1.2 adapter
Host connector
USB-C DP Alt Mode male
Display connector
Mini DisplayPort female
Attached cable length
306mm
Displays supported
1
Colour / material
Grey plastic
Warranty
3 Years
UPC
065030888967
Video and Audio
Maximum resolution
3840 x 2160 at 60Hz
Video revision
Mini DisplayPort 1.2 HBR2
Audio
Mini DisplayPort 2-channel audio
Content protection
HDCP 2.2/1.4
HDR
No
Maximum Mini DisplayPort cable distance
2m
Power Delivery
No PD pass-through
Requirements and Compatibility
Chipset
VIA/VLI VL103
Host requirement
USB-C DisplayPort Alt Mode
Output type
Single-mode Mini DisplayPort; no further HDMI/VGA/DVI adapter conversion
Supported Apple displays
30-inch Apple Cinema Display A1083; 27/24-inch Apple LED Cinema Display A1316/A1267
Not supported
Thunderbolt displays including Apple Thunderbolt Display A1407
Physical and Packaging
Product dimensions (L x W x H)
392 x 27 x 16mm
Product weight
28g
Operating temperature
045°C
Storage temperature
-1070°C
Humidity
1085% RH
Package dimensions (W x D x H)
176 x 122 x 23mm
Shipping weight
34g
Package contents
1 x USB-C to Mini DisplayPort adapter
| SKU | CDP2MDPEC |
| Barcode # | 65030888967 |
| Brand | STARTECH |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.020m |
| Shipping Length | 0.011m |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2MDPEC.
