STARTECH.COM | DVIVGAFM

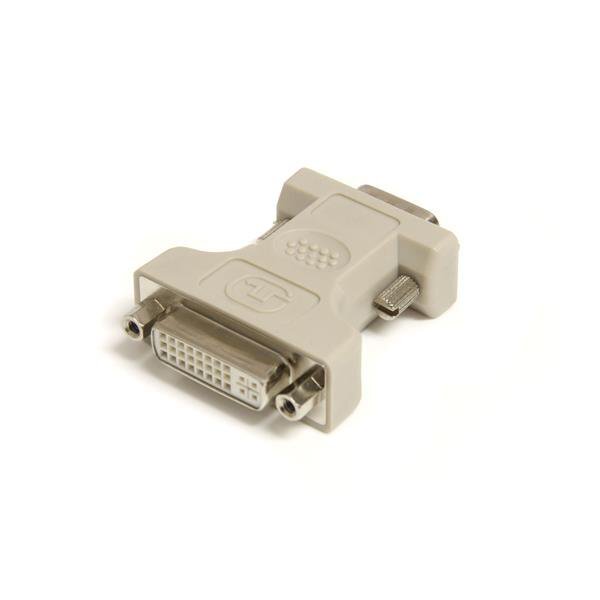

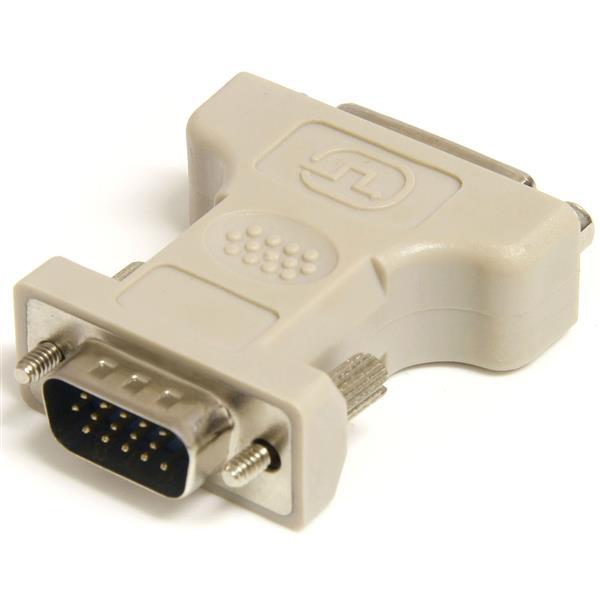

Passive DVI-I Female to VGA Male Analogue Adapter

Connect an analogue-capable DVI-I display cable to a VGA video-card output using a compact passive adapter.

DVI-I female to VGA male

Accepts a DVI-I male display connection and plugs into a 15-pin VGA output.

Analogue signal only

Passes an existing analogue signal; it does not convert digital DVI-D video to VGA.

Compact screw-lock design

Moulded construction and screw-lock hardware help keep the connection secure.

What to know

This passive adapter works only when the DVI-I device supports an analogue signal. It is not compatible with DVI-D digital-only connections and does not perform digital-to-analogue conversion.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVIVGAFM connect?

It connects an analogue-capable DVI-I display connection to a VGA output on a video card.

Which connectors are on the DVIVGAFM?

It has one 29-pin DVI-I female connector and one 15-pin VGA male connector.

Is the DVIVGAFM active or passive?

It is a passive adapter that passes an existing analogue signal.

Does the DVIVGAFM convert digital DVI to VGA?

No. It does not convert digital video to analogue video.

Can the DVIVGAFM be used with DVI-D?

No. DVI-D is digital-only and requires an active converter for connection to VGA.

Does the DVI-I device need analogue support?

Yes. The DVI-I connection must support analogue video for this passive adapter to work.

How large is the DVIVGAFM?

The supplied specification lists approximately 61 × 40.6 × 15.2mm.

What warranty applies to the DVIVGAFM?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVIVGAFM)

Features and highlights

DVI-I female to VGA male passive adapter
Connects an analogue-capable DVI-I display to a VGA video output
Passes analogue video without signal conversion
Not compatible with DVI-D digital-only devices
29-pin DVI-I female connector
15-pin high-density VGA male connector
Nickel-plated connectors
Moulded construction with screw-lock support
Compact beige enclosure
Lifetime StarTech.com manufacturer warranty

Compatibility check: The DVI-I device must accept an analogue signal. This adapter cannot convert digital DVI-D to analogue VGA; use an active converter when the source or destination is digital-only.

Specifications

Product type	Passive DVI-I to VGA analogue adapter
DVI connector	1 × DVI-I female, 29-pin
VGA connector	1 × VGA male, 15-pin high-density D-Sub
Signal type	Analogue video pass-through
Active conversion	No
Direction and application	DVI-I display connection to VGA video-card output
DVI-D compatibility	Not compatible with digital-only DVI-D signals
Connector plating	Nickel
Construction	Moulded adapter with screw-lock hardware
Colour	Beige
Length	61mm
Width	40.6mm
Height	15.2mm
In the box	1 × DVI-I female to VGA male adapter
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVIVGAFM
Barcode #	65030820820
Brand	STARTECH
Shipping Weight	0.0400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.120m
Shipping Cubic	0.000600000m3

Warranty and Australian supply

DVIVGAFM is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
