STARTECH.COM | DVIVGAMF8IN

20cm DVI-I Male to VGA Female Adapter Cable

Connect a VGA monitor cable to an analogue-capable DVI-I output with a short dongle that helps reduce strain and adjacent-port obstruction.

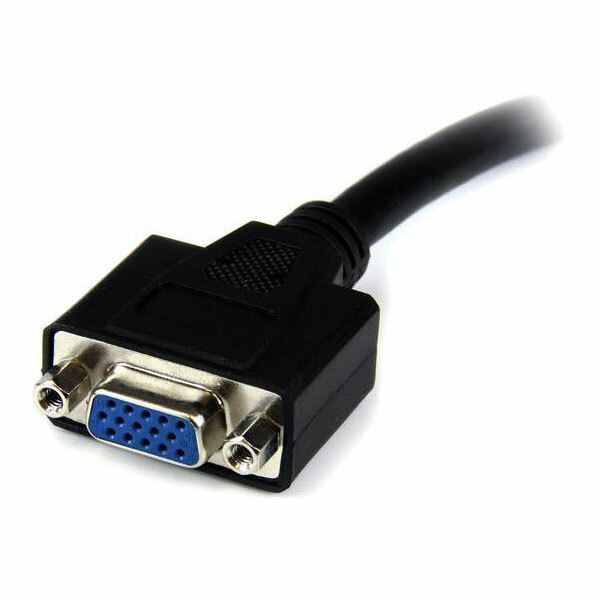

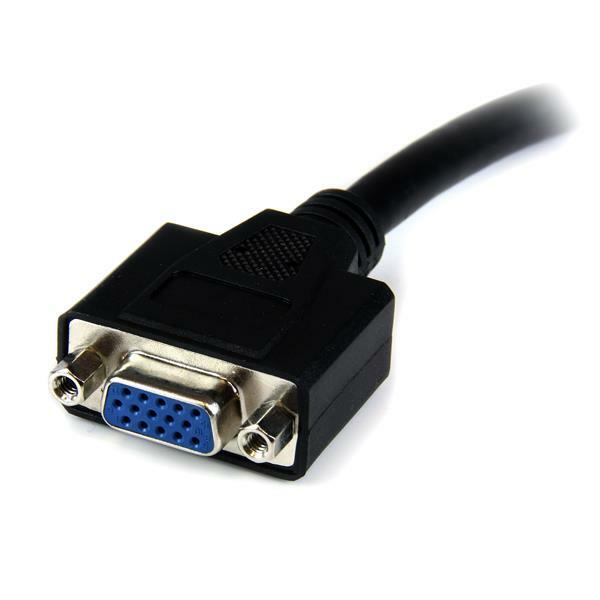

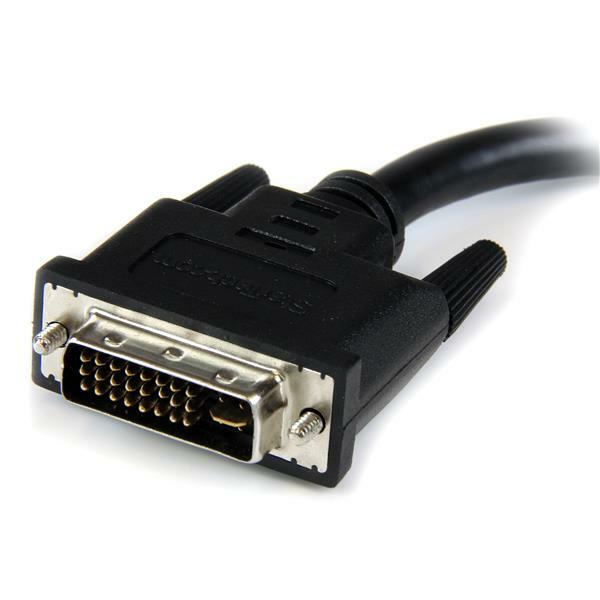

DVI-I male to VGA female

Connects a VGA display cable to a compatible analogue-capable DVI-I source.

Passive analogue pass-through

Carries an analogue signal already supplied by the source; it does not convert digital video to analogue.

20.32cm (8in) adapter cable

28 AWG copper cable with shielding, nickel-plated connectors and PVC jacket

What to know

The source must output analogue video through DVI-I or DVI-A. DVI-D is digital-only and is not compatible. Some DVI-I-shaped ports output digital video only, so confirm analogue support in the source-device specifications.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVIVGAMF8IN connect?

It connects a VGA display cable to a source device with an analogue-capable DVI-I output.

Which connectors are on the DVIVGAMF8IN?

It has one 29-pin DVI-I male connector and one 15-pin VGA female connector.

Is the DVIVGAMF8IN active or passive?

It is a passive adapter that passes an existing analogue video signal.

Does the DVIVGAMF8IN convert digital DVI to VGA?

No. It does not perform digital-to-analogue signal conversion.

Can the DVIVGAMF8IN be used with DVI-D?

No. DVI-D is digital-only, so an active DVI-D to VGA converter is required.

Does every DVI-I port work with the DVIVGAMF8IN?

No. The port must actually output analogue video; some DVI-I-shaped ports provide digital video only.

Does the DVIVGAMF8IN require drivers or power?

No. It is a passive adapter and requires no drivers or external power.

What warranty applies to the DVIVGAMF8IN?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVIVGAMF8IN)

Features and highlights

DVI-I male to VGA female video adapter
Passive analogue signal pass-through
Requires analogue output from the DVI source
Not compatible with digital-only DVI-D output
29-pin DVI-I male connector
15-pin high-density VGA female connector
28 AWG copper cable with shielding, nickel-plated connectors and PVC jacket
Black finish
No drivers or software required
Lifetime StarTech.com manufacturer warranty

Compatibility check: Confirm that the source device provides analogue video through DVI-I or DVI-A. This passive product cannot convert DVI-D digital video to analogue VGA.

Specifications

Product type	Passive DVI-I to VGA analogue adapter
DVI connector	1 × DVI-I male, 29-pin
VGA connector	1 × VGA female, 15-pin high-density D-Sub
Signal type	Analogue video pass-through
Active conversion	No
Required source signal	Analogue video through DVI-I or DVI-A
DVI-D compatibility	Not compatible with digital-only DVI-D output
Form factor	20.32cm (8in) adapter cable
Construction	28 AWG copper cable with shielding, nickel-plated connectors and PVC jacket
Colour	Black
Product weight	69g in the current official specification; supplied catalogue lists 68g
Software	No drivers or settings required
In the box	1 × DVIVGAMF8IN DVI-I male to VGA female adapter
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVIVGAMF8IN
Barcode #	65030848565
Brand	Startech
Shipping Weight	0.0800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.180m
Shipping Cubic	0.000900000m3

Warranty and Australian supply

DVIVGAMF8IN is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
