STARTECH.COM | DP2VGAHD20

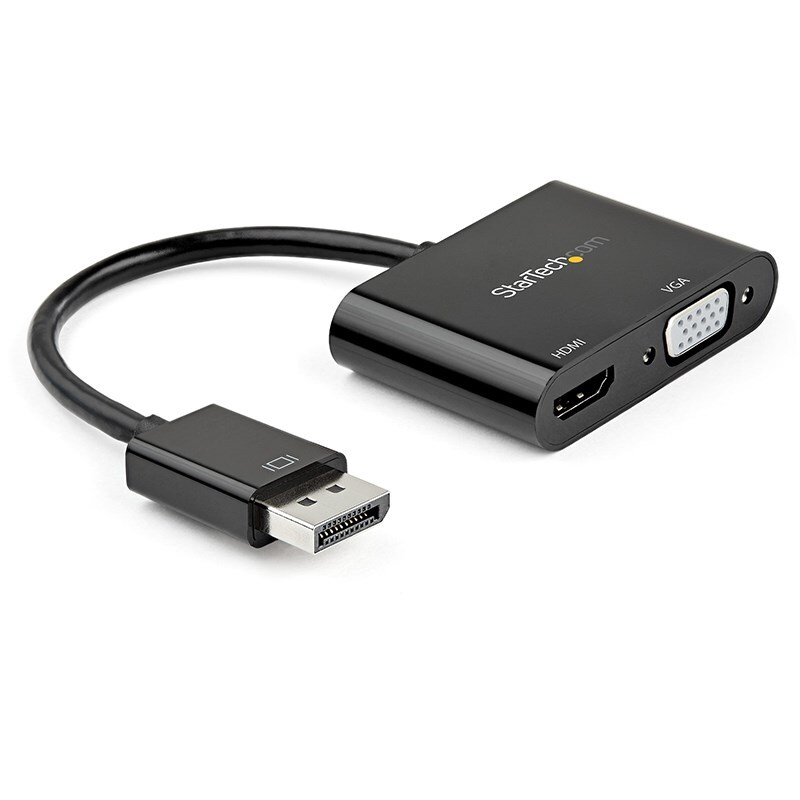

2-in-1 DisplayPort to HDMI or VGA Display Adapter

Connect a DisplayPort computer to one HDMI or VGA display, with HDMI up to 4K 60Hz and VGA up to 1920 × 1080 at 60Hz.

HDMI 2.0 at 4K 60Hz

The HDMI output supports 3840 × 2160 at 60Hz with compatible source, cable and display equipment.

VGA at 1080p 60Hz

The VGA output supports analogue video up to 1920 × 1080 at 60Hz.

Portable dual-output choice

Carry one compact adapter for HDMI or VGA presentation displays; only one display is supported at a time.

What to know

Use either the HDMI output or the VGA output for one display at a time. HDMI can carry audio; VGA does not. HDR requires a DisplayPort port with DisplayPort 1.4 support and an HDMI 2.0b HDR-capable display.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 3-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP2VGAHD20 connect?

It connects a DisplayPort computer to either an HDMI display or a VGA monitor or projector.

Can both outputs on the DP2VGAHD20 be used together?

No. It supports one display at a time, using either HDMI or VGA.

What resolution does the HDMI output support?

The HDMI output supports up to 3840 × 2160 at 60Hz with compatible equipment.

What resolution does the VGA output support?

The VGA output supports up to 1920 × 1080 at 60Hz.

Does the DP2VGAHD20 carry audio?

HDMI supports up to 7.1-channel audio, while VGA carries no audio.

What is required for HDR?

The DisplayPort source must support DisplayPort 1.4 and the display must support HDMI 2.0b, with compatible cable and content.

Does the DP2VGAHD20 require drivers?

No. It is designed for plug-and-play operation without additional software or drivers.

What warranty applies to the DP2VGAHD20?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2VGAHD20)

Features and highlights

DisplayPort 1.2 male input with HDMI 2.0 and VGA female outputs
HDMI supports 3840 × 2160 at 60Hz
VGA supports 1920 × 1080 at 60Hz
One display supported at a time
HDMI supports up to 7.1-channel audio; VGA carries no audio
HDR support when the DisplayPort source supports DP 1.4 and the display supports HDMI 2.0b
Plug-and-play setup with no additional software or drivers
Compact black plastic enclosure, approximately 39g
Includes one DisplayPort to HDMI and VGA adapter
3-year StarTech.com manufacturer warranty

Compatibility check: Only one output can be used at a time. HDR requires DisplayPort 1.4 support at the source and HDMI 2.0b support at the display. VGA does not carry audio.

Specifications

Product type	2-in-1 DisplayPort to HDMI or VGA adapter
Source connector	1 × DisplayPort 1.2 male, 20-pin
Display outputs	1 × HDMI female, 19-pin; 1 × VGA female, 15-pin high-density D-Sub
Displays supported	1 at a time
HDMI revision	HDMI 2.0
HDMI resolution	3840 × 2160 at 60Hz
VGA resolution	1920 × 1080 at 60Hz
Audio	HDMI: up to 7.1-channel audio; VGA: no audio
Chipset	ITE Tech IT6564
Operating-system compatibility	Windows 11 and 10; macOS Big Sur 11.0, Catalina 10.15, Mojave 10.14 and High Sierra 10.13; Android
HDR requirement	DisplayPort source must support DisplayPort 1.4 and the display must support HDMI 2.0b
Operating environment	0°C to 60°C; 10% to 85% relative humidity
Storage temperature	-10°C to 70°C
Dimensions and weight	21.8 × 6.0 × 1.4cm; approximately 39g; black plastic
In the box	1 × DisplayPort to HDMI and VGA adapter
Warranty	3-year StarTech.com manufacturer warranty

SKU	DP2VGAHD20
Barcode #	65030861212
Brand	STARTECH
Shipping Weight	0.0500kg
Shipping Width	0.002m
Shipping Height	0.015m
Shipping Length	0.008m
