Four display connector choices
Connect one HDMI, Mini DisplayPort, DVI-D or VGA display from a compatible USB-C host.
StarTech Travel A/V Adapter USB-C to VGA DVI HDMI Mini DisplayPort, 4K - CDPVGDVHDMDP
Model # CDPVGDVHDMDP
-
SKU: CDPVGDVHDMDP
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDPVGDVHDMDP
StarTech 4-in-1 USB-C Travel A/V Adapter - 4K
Carry one compact adapter for HDMI, Mini DisplayPort, DVI-D or VGA displays, with up to 4K 60Hz through Mini DisplayPort and 4K 30Hz through HDMI.
4 output choicesMini DP 4K 60HzHDMI 4K 30Hz3-year warranty
Product overview

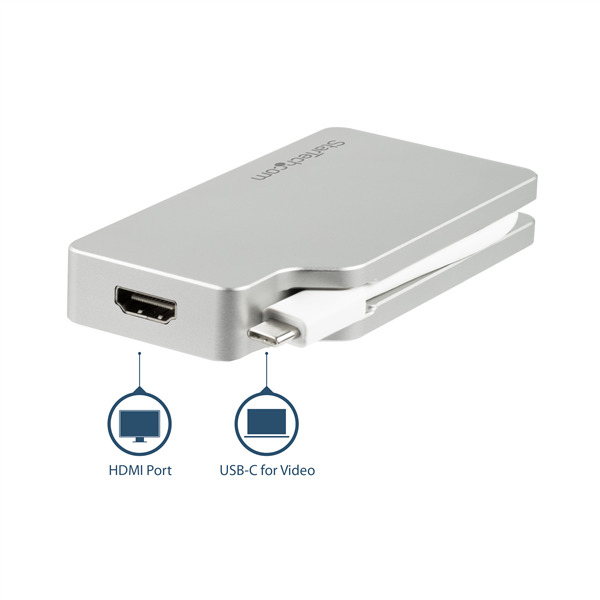

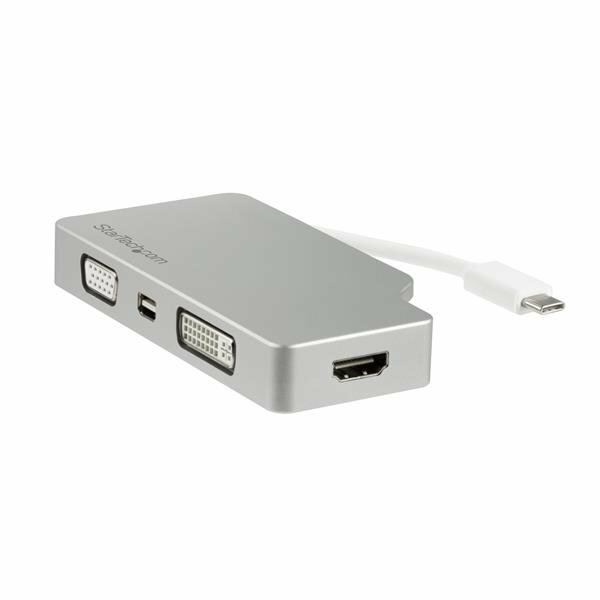

CDPVGDVHDMDP connects a USB-C DisplayPort Alt Mode host to one display using your choice of four output types. Only one video output operates at a time, making it a versatile travel accessory rather than a multi-monitor adapter.
Features that matter
4K output options
Mini DisplayPort supports up to 3840 x 2160 at 60Hz and HDMI supports up to 3840 x 2160 at 30Hz.
Legacy display support
DVI-D and VGA outputs support up to 1920 x 1200 or 1080p for meeting rooms and installed displays.

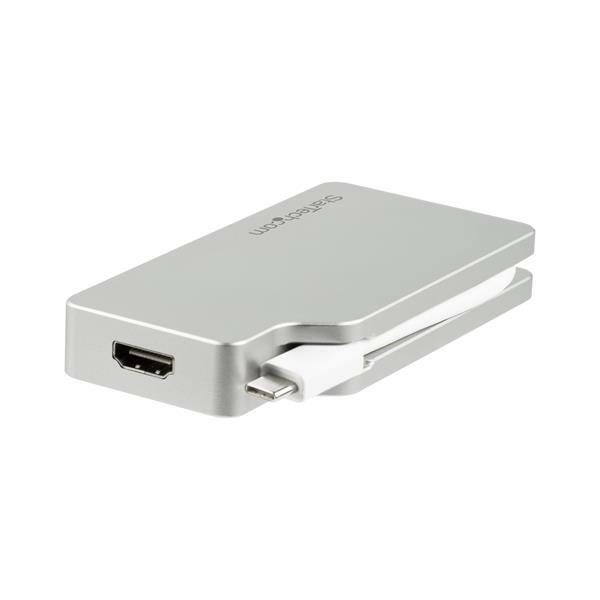

Compact aluminium travel design
The silver housing and 110mm attached USB-C cable keep four common video options in one adapter.
What to know before ordering

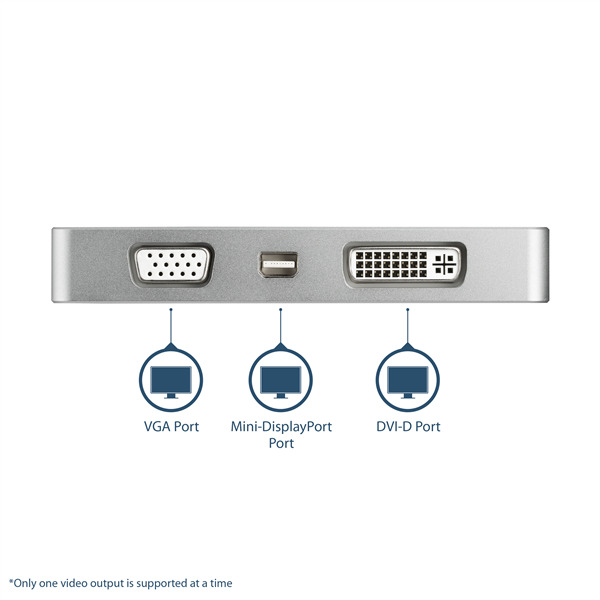

One output at a time
Only one video output functions at a time. This adapter does not drive multiple displays simultaneously.
Host requirement
The USB-C or Thunderbolt host port must support DisplayPort Alt Mode video output.
Platform and audio notes
VGA output is not supported from M1, M1 Pro or M1 Max MacBook hosts. Use the conservative two-channel Mini DisplayPort audio value because official source sections conflict.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDPVGDVHDMDP?
CDPVGDVHDMDP is a four-in-one USB-C travel video adapter with HDMI, Mini DisplayPort, DVI-D and VGA outputs for one display.
What is the maximum resolution?
Mini DisplayPort supports up to 3840 x 2160 at 60Hz, HDMI up to 3840 x 2160 at 30Hz, and DVI-D or VGA up to 1920 x 1200 or 1080p.
Can multiple outputs be used at once?
No. Only one video output operates at a time; the adapter does not support simultaneous multi-monitor output.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
Does VGA work with Apple silicon MacBooks?
The official specification says VGA output does not work with M1, M1 Pro or M1 Max MacBook hosts. Other outputs remain subject to host and display compatibility.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one USB-C travel A/V adapter.
What warranty applies in Australia?
CDPVGDVHDMDP is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDPVGDVHDMDP)
Features and highlights
CDPVGDVHDMDP key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Four display connector choices
Connect one HDMI, Mini DisplayPort, DVI-D or VGA display from a compatible USB-C host.
4K output options
Mini DisplayPort supports up to 3840 x 2160 at 60Hz and HDMI supports up to 3840 x 2160 at 30Hz.
Legacy display support
DVI-D and VGA outputs support up to 1920 x 1200 or 1080p for meeting rooms and installed displays.
Compact aluminium travel design
The silver housing and 110mm attached USB-C cable keep four common video options in one adapter.
Key highlights
- HDMI · Mini DisplayPort · DVI-D · VGA
- One output active at a time
- Mini DisplayPort up to 4K 60Hz
- HDMI up to 4K 30Hz
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDPVGDVHDMDP
Verified specifications and package details for the exact model.
General and Connectivity
Product type
4-in-1 USB-C travel A/V adapter
Host connector
USB-C DisplayPort Alt Mode male
Outputs
HDMI 1.4; Mini DisplayPort 1.2; DVI-D single-link; VGA
Outputs active
One at a time
Attached cable length
110mm
Colour / material
Silver aluminium
Warranty
3 Years
Video and Audio
Mini DisplayPort maximum
3840 x 2160 at 60Hz
HDMI maximum
3840 x 2160 at 30Hz
DVI-D maximum
1920 x 1200 or 1080p; digital only
VGA maximum
1920 x 1200 or 1080p
HDMI audio
Up to 7.1 channels
Mini DisplayPort marketing feature audio
2-channel
Mini DisplayPort performance-table audio
5.1-channel; conflicts with marketing feature
Purchase-planning value
Use 2-channel Mini DisplayPort audio
DVI-D / VGA audio
Not supported
Content protection
HDCP 2.2 / 1.4
Power Delivery
No pass-through
Hardware and Requirements
Adapter type
Active
Chipsets
Cypress CYPD1120; Cypress CY7C65210; Parade PS8348B; Parade PS171
Host requirement
USB-C DisplayPort Alt Mode
Displays supported
1
Apple silicon limitation
VGA does not work with M1, M1 Pro or M1 Max MacBook hosts
Physical and Packaging
Product dimensions (L x W x H)
105 x 55 x 15mm
Product weight
108g
Operating temperature
070°C
Storage temperature
-1080°C
Humidity
4050% RH
Package dimensions (W x D x H)
176 x 145 x 32mm
Shipping weight
174g
Package contents
1 x travel A/V adapter
| SKU | CDPVGDVHDMDP |
| Barcode # | 65030863094 |
| Brand | STARTECH |
| Shipping Weight | 0.1800kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.030m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000714000m3 |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDPVGDVHDMDP.
