1920 x 1200 VGA output
Connect one VGA monitor or projector at up to 1920 x 1200 at 60Hz, including 1080p.
Startech CDP2VGAEC USB C to VGA Adapter 1080p - 12in Cable
Model # CDP2VGAEC
-
SKU: CDP2VGAEC
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2VGAEC

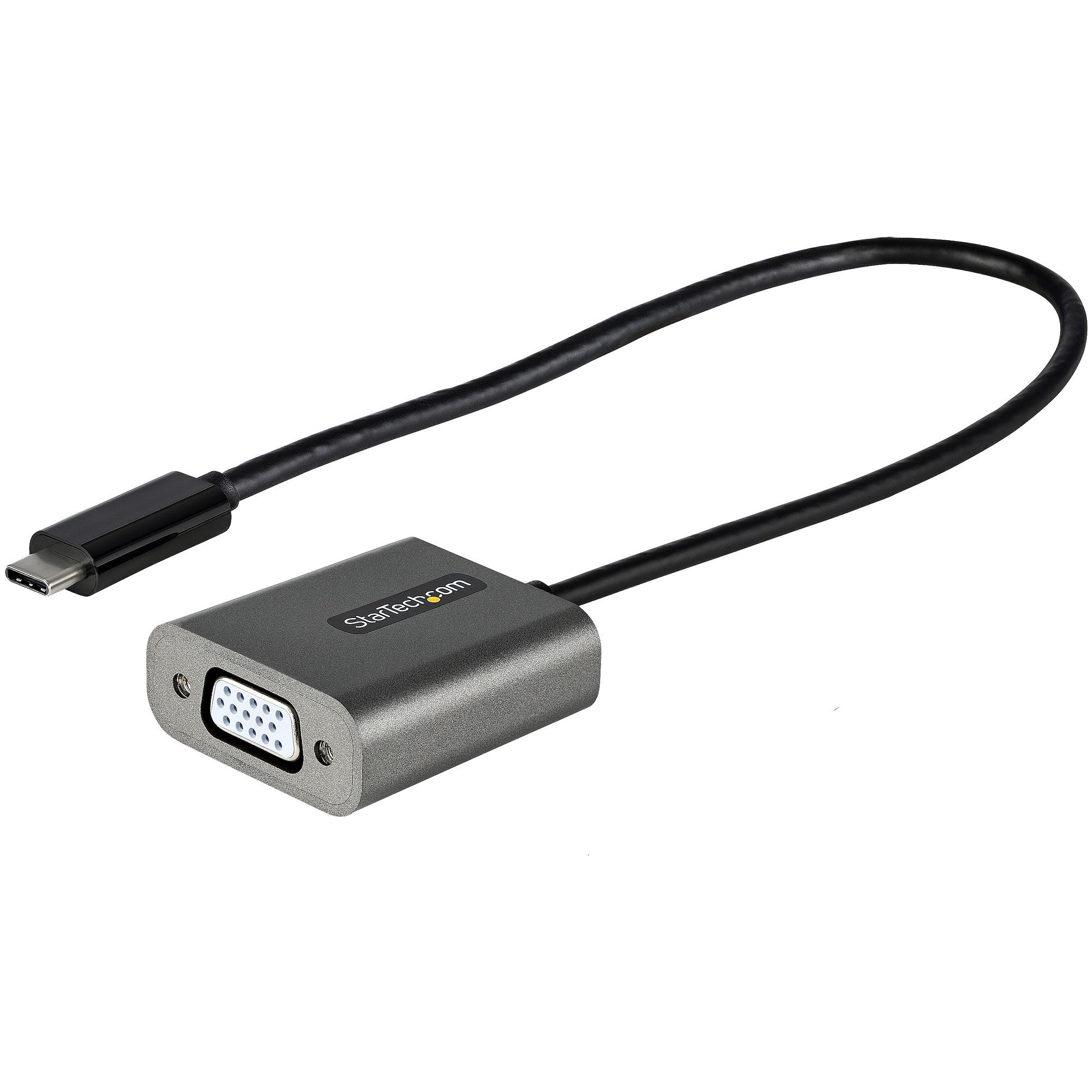

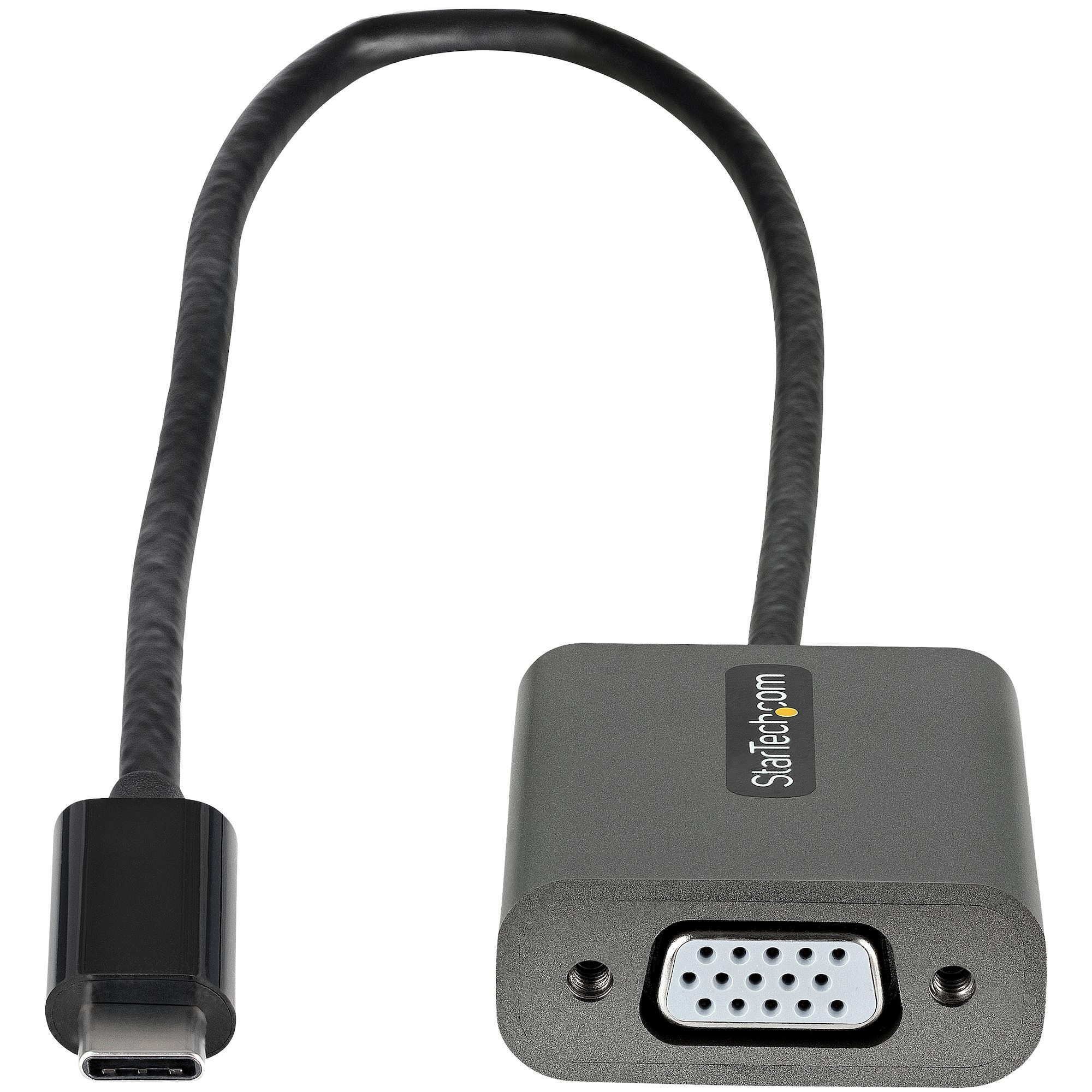

StarTech USB-C to VGA Adapter - 30cm Cable - Silver
Connect one VGA monitor or projector to a USB-C DP Alt Mode host with a silver adapter and a 300mm attached cable.
300mm attached cable1920 x 1200VGA · no audio3-year warranty
Product overview
CDP2VGAEC is the longer-cable upgrade to CDP2VGA. It supports 1920 x 1200 at 60Hz or 1080p, carries video only and works without an additional display driver.
Features that matter
Extra-long host cable
The 300mm attached cable helps reduce connector strain on 2-in-1 devices and laptops placed on risers.
Digital-to-analogue conversion
Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.
Driverless operation
Designed for plug-and-play use with compatible USB-C and Thunderbolt hosts across supported operating systems.
What to know before ordering
Host requirement
The USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
No audio over VGA
VGA carries video only. Use a separate audio connection when sound is required.
One-way connection
Connect USB-C to the host and VGA to one display. The connection is not bidirectional and has no Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2VGAEC?
CDP2VGAEC is a extra-reach USB-C to VGA adapter for connecting one DP Alt Mode host to a VGA display.
What is the maximum resolution?
The verified maximum is 1920 x 1200 at 60Hz, with 1080p and lower resolutions also supported.
What must the USB-C port support?
The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.
Does VGA carry audio?
No. VGA carries video only, so a separate audio connection is required.
Is the connection bidirectional?
No. It converts video from a USB-C DP Alt Mode host to a VGA display.
Does it require a driver?
No additional display driver is required for a compatible host.
What is included in the package?
The package contains one USB-C to VGA adapter.
What warranty applies in Australia?
CDP2VGAEC is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2VGAEC)
Features and highlights
CDP2VGAEC key capabilities
Product-specific highlights verified for this exact StarTech.com model.
1920 x 1200 VGA output
Connect one VGA monitor or projector at up to 1920 x 1200 at 60Hz, including 1080p.
Extra-long host cable
The 300mm attached cable helps reduce connector strain on 2-in-1 devices and laptops placed on risers.
Digital-to-analogue conversion
Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.
Driverless operation
Designed for plug-and-play use with compatible USB-C and Thunderbolt hosts across supported operating systems.
Key highlights
- 300mm attached cable
- Up to 1920 x 1200 at 60Hz
- Single VGA display
- Video only · no audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2VGAEC
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to VGA adapter
Host connector
USB-C DP Alt Mode male
Display connector
VGA female
Attached cable length
300mm
Displays supported
1
Colour
Silver
Warranty
3 Years
UPC
065030888875
Video
Maximum resolution
1920 x 1200 at 60Hz or 1080p
Audio
Not supported over VGA
HDR
No
Power Delivery
No PD pass-through
Hardware and Requirements
Chipsets
ITE IT6516; VIA Labs VL103
Host requirement
USB-C DisplayPort Alt Mode
Thunderbolt compatibility
Thunderbolt 3
Driver requirement
No additional display driver
Physical and Packaging
Product dimensions (L x W x H)
305 x 35 x 15mm
Product weight
32g
Operating temperature
045°C
Storage temperature
-1070°C
Humidity
1085% RH
Package dimensions (W x D x H)
125 x 175 x 17mm
Shipping weight
38g
Package contents
1 x USB-C to VGA adapter
| SKU | CDP2VGAEC |
| Barcode # | 65030888875 |
| Brand | STARTECH |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.002m |
| Shipping Height | 0.015m |
| Shipping Length | 0.011m |
Official StarTech.com manufacturer warranty
3 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech CDP2VGAEC.
