StarTech Connect a DVI display through SuperSpeed USB 3.0, for an accelerated external multi-monitor solution at resolutions up to 2048x1152 USB32DVIP
Model # USB32DVIPRO
-
SKU: USB32DVIPRO
- Pick Up Available
- Australian Warranty
- Checkout Securely

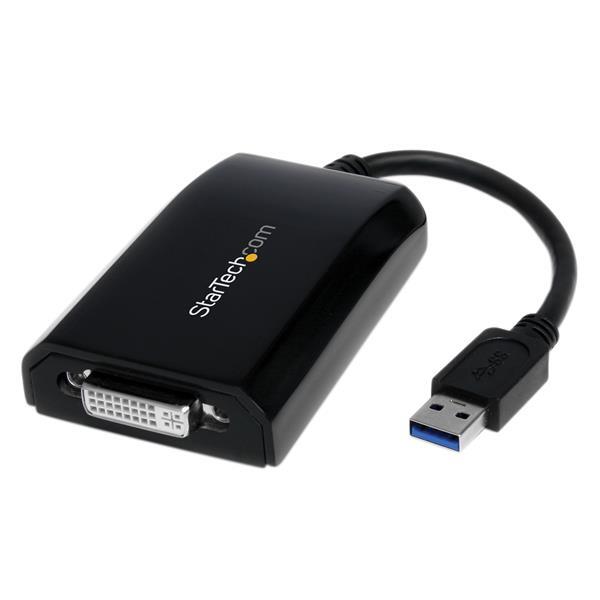

The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high resolution 2048x1152 video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

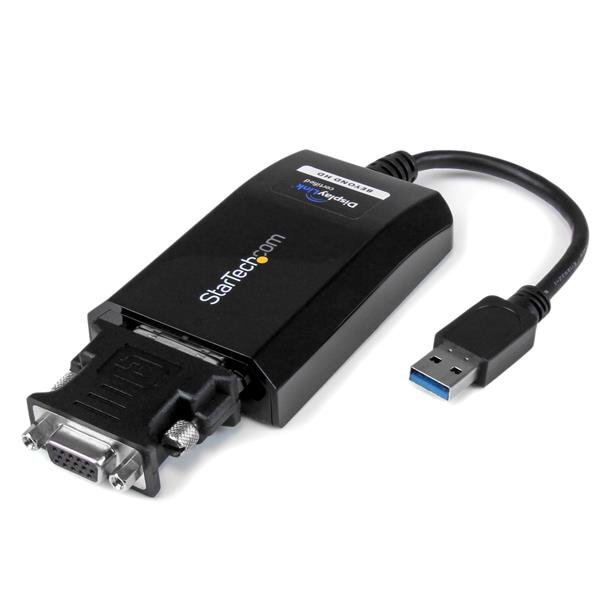

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as a external graphics card to deliver smooth, high-resolution content to your DVI or VGA-capable display (DVI to VGA Adapter included). The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
(USB32DVIPRO)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Audio | Yes | |
| AV Input | USB 3.0 | |
| AV Output | DVI | |
| Chipset ID | DisplayLink - DL-3100 | |
| Memory | 512MB | |
| USB Pass-Through | No | |
| Performance | ||
| General Specifications | This USB video adapter uses a DisplayLink family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. | |
| Maximum Analog Resolutions | 2048x1152 | |
| Maximum Digital Resolutions | 2048x1152 | |
| MTBF | 90,577 hours | |
| Note | If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. | |
| Supported Resolutions | Widescreen(16/32 bit): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Connector A | 1 - USB Type-A (9 pin) USB 3.0 Male | |

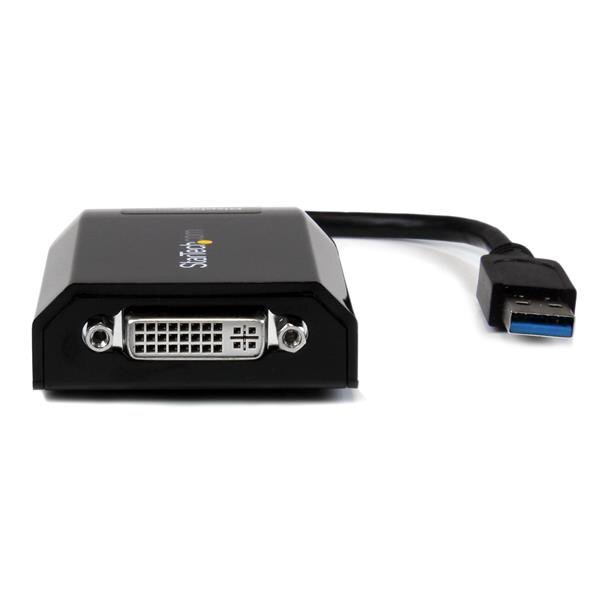

| Connector B | 1 - DVI-I (29 pin) Female | |
| Software | ||
| OS Compatibility | Windows¨ 2000, XP, Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 Ubuntu 14.04, 16.04, 18.04 Chrome OSª v55+ | |
| Special Notes / Requirements | ||
| Note | This USB video adapter uses a DisplayLink¨ family chipset. If youÕre connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as Trigger or Fresco Logic¨ | |
| Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources | ||
| This USB video adapter is not intended for graphical intensive applications, such as gaming | ||
| System and Cable Requirements | System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB | |
| Power | ||
| Power Source | USB-Powered | |
| Environmental | ||
| Humidity | <85% RH Non-Condensing | |
| Operating Temperature | 10¡C to 40¡C (50¡F to 194¡F) | |
| Storage Temperature | -10¡C to 80¡C (14¡F to 167¡F) | |
| Physical Characteristics | ||
| Cable Length | 6 in [152.5 mm] | |
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 0.6 in [1.6 cm] | |
| Product Length | 3.1 in [78 mm] | |
| Product Width | 1.7 in [43.5 mm] | |
| Weight of Product | 3.2 oz [91 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [30 mm] | |
| Package Length | 6.7 in [17.1 cm] | |
| Package Width | 5.7 in [14.4 cm] | |
| Shipping (Package) Weight | 7.4 oz [211 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 to DVI Adapter | |
| 1 - DVI to VGA Adapter | ||
| 1 - Driver CD | ||
| 1 - Installation guide | ||
| SKU | USB32DVIPRO |
| Barcode # | 65030846110 |
| Brand | STARTECH |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000400000m3 |
