STARTECH.COM | DMSDPDP1

DMS-59 Male to Dual DisplayPort Female Breakout Cable

Connect two DisplayPort monitors to a compatible DMS-59 or LFH graphics card using a compact 20.3cm breakout cable designed for dual-output workstation graphics hardware.

Two DisplayPort outputs

Breaks one DMS-59 graphics-card connection out to two female DisplayPort 1.2 connectors.

High-resolution support

Supports resolutions up to 3840 × 2160 at 60Hz with a maximum HBR2 bandwidth of 21.6Gbps.

Durable replacement lead

Shielded 32AWG conductors, molded strain relief and a PVC jacket suit regular workstation use.

What to know

This is a passive breakout cable for a compatible DMS-59/LFH dual-output graphics card. It does not create two independent outputs from an ordinary single-display source; confirm the graphics card and driver support the intended monitor arrangement.

Frequently asked questions

What is the DMSDPDP1 used for?

It breaks a compatible DMS-59 or LFH graphics-card output into two female DisplayPort 1.2 connections for two monitors.

Which connectors are on the DMSDPDP1?

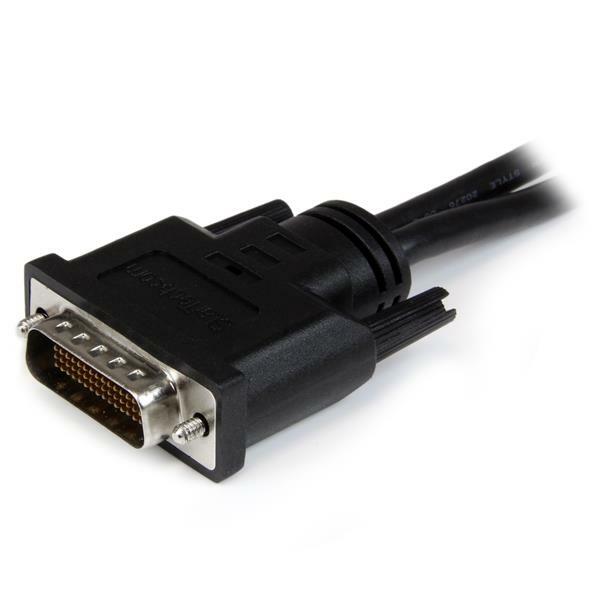

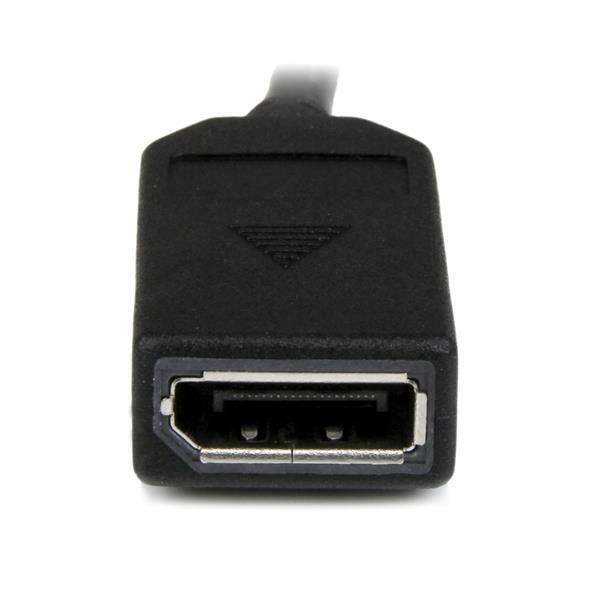

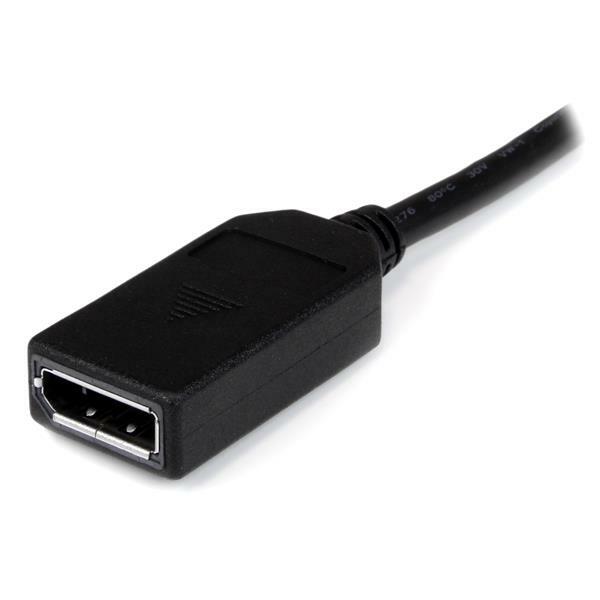

It has one 59-pin DMS-59 male connector and two 20-pin DisplayPort 1.2 female connectors.

Can the DMSDPDP1 connect two monitors?

Yes, when the connected DMS-59/LFH graphics card is designed to provide two independent DisplayPort outputs.

What maximum resolution does the DMSDPDP1 support?

The official exact-SKU specification lists up to 3840 × 2160 at 60Hz with HBR2 bandwidth up to 21.6Gbps.

Will the DMSDPDP1 work with any video output?

No. It requires compatible DMS-59/LFH dual-output graphics hardware; it is not an adapter for standard DisplayPort, HDMI or USB-C sources.

How long is the DMSDPDP1?

The breakout cable is approximately 20.3cm or 8 inches long.

Does the DMSDPDP1 require drivers or external power?

The cable itself requires neither, but the graphics card must have the correct driver and configuration for the connected displays.

What warranty applies to the DMSDPDP1?

It is backed by a lifetime StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DMSDPDP1)

Features and highlights

1 × DMS-59 male to 2 × DisplayPort 1.2 female connectors
Enables two DisplayPort monitor connections from compatible DMS/LFH graphics hardware
Supports resolutions up to 3840 × 2160 at 60Hz
Maximum HBR2 bandwidth of 21.6Gbps
Compact 20.3cm (8in) breakout length
32AWG construction with aluminum-mylar foil and braid shielding
Nickel-plated connectors, molded strain relief and black PVC jacket

Compatibility check: The source must be a compatible DMS-59/LFH graphics card capable of driving two DisplayPort outputs. Check the card vendor's supported resolutions, monitor combinations and driver configuration.

Specifications

Cable type	DMS-59/LFH to dual DisplayPort breakout cable
Source connector	1 × 59-pin DMS-59 male
Display connectors	2 × 20-pin DisplayPort 1.2 female
Maximum resolution	3840 × 2160 at 60Hz
Maximum bandwidth	21.6Gbps HBR2
Cable length	20.3cm (8in)
Wire gauge	32AWG
Shielding	Aluminum-mylar foil with braid
Jacket and connectors	Black PVC jacket; nickel-plated connectors
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DMSDPDP1
Barcode #	65030859592
Brand	Startech
Shipping Weight	0.0800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3

Warranty and Australian supply

DMSDPDP1 is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
