StarTech.com · CDP2VGAW

StarTech USB-C to VGA Adapter - 1920 x 1200 - White

Connect one VGA monitor or projector to a USB-C DisplayPort Alt Mode host with a compact white adapter supporting 1920 x 1200.

White140mm cable1920 x 12003-year warranty

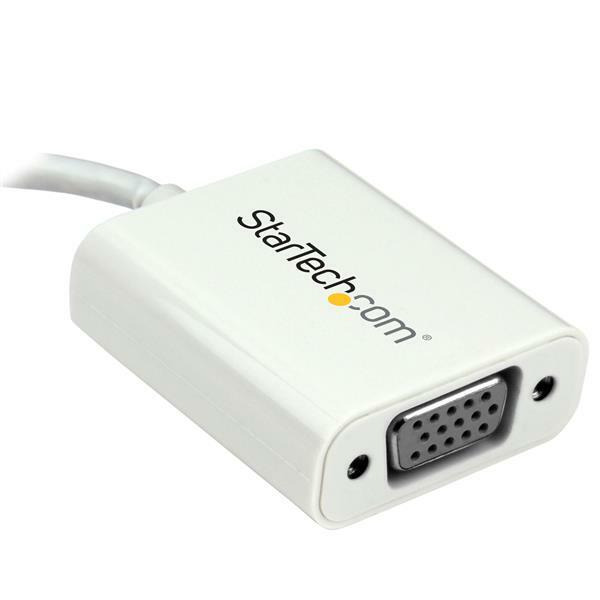

StarTech CDP2VGAW white USB-C to VGA adapter

Product overview

CDP2VGAW converts digital USB-C DisplayPort Alt Mode video to analogue VGA. Its 140mm attached cable is convenient for travel, and the adapter is USB-powered and driverless.

Features that matter

1920 x 1200 VGA output

Connect one VGA monitor or projector at up to 1920 x 1200 or 1080p.

Compact white design

The lightweight housing and 140mm attached host cable fit easily into a laptop bag.

Active signal conversion

Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.

USB-powered and driverless

No separate power supply or additional display driver is required with a compatible host.

What to know before ordering

Host requirement

The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.

Video only

VGA does not carry audio. Use a separate audio connection when sound is required.

No Power Delivery

The adapter does not provide USB-C charging or Power Delivery pass-through.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2VGAW?

CDP2VGAW is a white USB-C to VGA adapter for connecting one DisplayPort Alt Mode host to a VGA display.

What is the maximum resolution?

The verified maximum is 1920 x 1200 or 1080p, with lower VGA resolutions also supported.

What must the USB-C port support?

The host USB-C or Thunderbolt port must support DisplayPort Alt Mode video output.

Does VGA carry audio?

No. VGA carries video only, so a separate audio connection is required.

Does the adapter charge the laptop?

No. It is USB-powered but does not provide USB-C Power Delivery pass-through.

Does it require a driver?

No additional display driver is required for a compatible host.

What is included in the package?

The package contains one USB-C to VGA adapter.

What warranty applies in Australia?

CDP2VGAW is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2VGAW)

Features and highlights

CDP2VGAW key capabilities

Product-specific highlights verified for this exact StarTech.com model.

1920 x 1200 VGA output

Connect one VGA monitor or projector at up to 1920 x 1200 or 1080p.

Compact white design

The lightweight housing and 140mm attached host cable fit easily into a laptop bag.

Active signal conversion

Integrated electronics convert DisplayPort Alt Mode video to an analogue VGA signal.

USB-powered and driverless

No separate power supply or additional display driver is required with a compatible host.

Key highlights

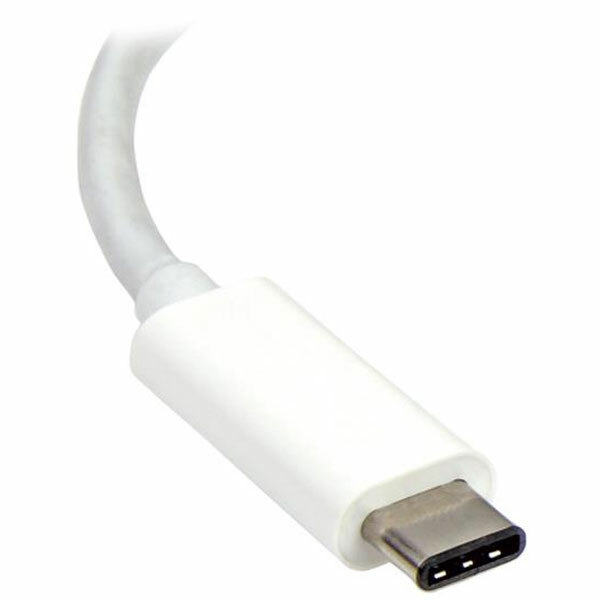

140mm attached USB-C cable
Up to 1920 x 1200 or 1080p
Single VGA display
White portable housing
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2VGAW

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB-C to VGA adapter

Host connector

USB-C DisplayPort Alt Mode male

Display connector

VGA female

Attached cable length

140mm

Displays supported

Colour / material

White plastic

Warranty

3 Years

Video

Maximum resolution

1920 x 1200 or 1080p

Audio

Not supported over VGA

Power Delivery

No pass-through

Power source

USB-powered

Hardware and Requirements

Chipsets

ITE IT6516; VIA Labs VL103

Host requirement

USB-C DisplayPort Alt Mode

Driver requirement

No additional display driver

Physical and Packaging

Product dimensions (L x W x H)

175 x 35 x 16mm

Product weight

23g

Operating temperature

045°C

Storage temperature

-1070°C

Humidity

1085% RH

Package dimensions (W x D x H)

158 x 122 x 18mm

Shipping weight

30g

Package contents

1 x USB-C to VGA adapter
