StarTech.com · CDP2DP

StarTech USB-C to DisplayPort 1.4 Adapter - 8K 30Hz

Connect a DisplayPort monitor to a compatible USB-C or Thunderbolt 3 host with a compact adapter supporting up to 8K 30Hz or 4K 60Hz.

DisplayPort 1.4Up to 8K 30HzHBR2 + DSC3-year warranty

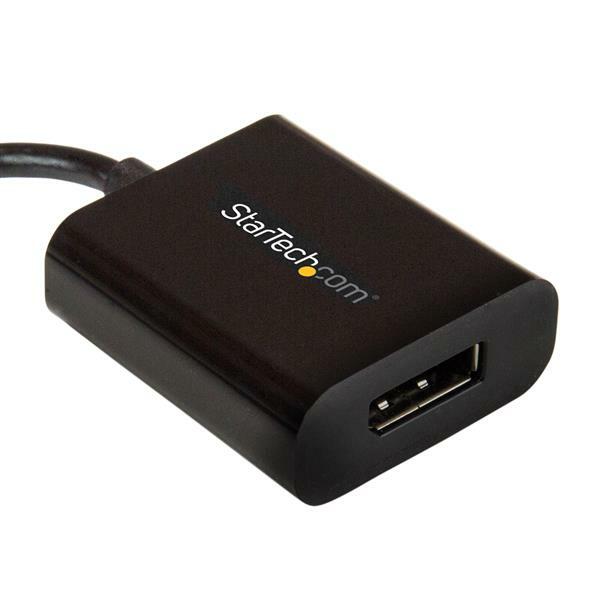

StarTech CDP2DP USB-C to DisplayPort 1.4 adapter

Product overview

CDP2DP converts USB-C DisplayPort Alt Mode to a full-size DisplayPort 1.4 output. A built-in signal booster supports a DisplayPort cable up to 2m, while driverless operation makes the adapter easy to deploy.

Features that matter

High-resolution DisplayPort output

Supports one DisplayPort display at up to 7680 x 4320 at 30Hz, with 4K 60Hz and 1080p also supported.

DP 1.4 signal support

HBR2, Display Stream Compression, HDCP 2.2/1.4 and 32.4Gbps link bandwidth support compatible professional displays.

Built-in signal booster

The integrated booster supports a DisplayPort cable up to 2m between the adapter and display.

Driverless compact design

Bus-powered operation supports compatible Windows 10, macOS, Ubuntu and ChromeOS hosts without separate software.

What to know before ordering

Choose it for

Connecting one full-size DisplayPort monitor, projector or display to a USB-C or Thunderbolt 3 computer that supports DisplayPort Alt Mode.

DisplayPort Alt Mode required

The host USB-C port must support DisplayPort Alt Mode. This adapter does not add video output to data-only USB-C ports.

Use a direct DisplayPort connection

The output is single-mode DisplayPort. Do not add a DisplayPort-to-HDMI, VGA or DVI adapter; connect directly to a DisplayPort display with a cable up to 2m.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2DP?

CDP2DP is a USB-C DisplayPort Alt Mode to full-size DisplayPort 1.4 adapter for connecting one compatible display.

What is the maximum resolution?

The verified maximum is 7680 x 4320 at 30Hz. It also supports 4K 60Hz and 1080p with compatible equipment.

What must the host USB-C port support?

The USB-C or Thunderbolt 3 host must support DisplayPort Alt Mode video output.

Does the adapter support audio?

Yes. The specification lists two-channel audio over DisplayPort.

Can I connect an HDMI, VGA or DVI display through another adapter?

No. The DisplayPort output is single-mode and is not compatible with an additional DisplayPort-to-HDMI, VGA or DVI adapter.

How long can the DisplayPort cable be?

The built-in signal booster supports a DisplayPort cable up to 2m between the adapter and display.

Does it provide Power Delivery pass-through?

No. This adapter has no USB-C charging input or Power Delivery pass-through.

What warranty applies in Australia?

CDP2DP is the Australian version supplied by DeviceDeal and is covered by the official 3-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2DP)

Features and highlights

CDP2DP key capabilities

Product-specific highlights verified for this exact StarTech.com model.

High-resolution DisplayPort output

Supports one DisplayPort display at up to 7680 x 4320 at 30Hz, with 4K 60Hz and 1080p also supported.

DP 1.4 signal support

HBR2, Display Stream Compression, HDCP 2.2/1.4 and 32.4Gbps link bandwidth support compatible professional displays.

Built-in signal booster

The integrated booster supports a DisplayPort cable up to 2m between the adapter and display.

Driverless compact design

Bus-powered operation supports compatible Windows 10, macOS, Ubuntu and ChromeOS hosts without separate software.

Key highlights

USB-C male to DisplayPort 1.4 female
Up to 8K 30Hz or 4K 60Hz
HBR2, DSC and HDCP 2.2/1.4
140mm attached cable
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2DP

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB-C to DisplayPort video adapter

Host connector

USB-C male

Display connector

DisplayPort 1.4 female

Number of displays

Warranty

3 Years

UPC

065030862622

Video and Audio

Maximum digital resolution

7680 x 4320 at 30Hz

Additional resolutions

4K 60Hz; 1080p

DisplayPort features

HBR2; Display Stream Compression; 32.4Gbps link bandwidth

Content protection

HDCP 2.2 and HDCP 1.4

Audio

2-channel DisplayPort audio

Maximum DisplayPort cable length

Compatibility and Hardware

Host requirement

USB-C DisplayPort Alt Mode

Thunderbolt compatibility

Thunderbolt 3

Supported operating systems

Windows 10; macOS; Ubuntu; ChromeOS

Chipsets

Pericom PI3DPX1203; NXP PTN5100

MTBF

2,002,054 hours

Physical and Environmental

Colour

Black

Attached cable length

140mm

Product dimensions (L x W x H)

180 x 37 x 14mm

Product weight

24g

Operating temperature

045°C

Storage temperature

-1070°C

Humidity

1085% RH

Packaging and In the Box

Package dimensions (L x W x H)

169 x 124 x 18mm

Shipping weight

26g

Package contents

1 x USB-C to DisplayPort adapter
