StarTech DisplayPort to VGA Adapter with Audio - DP2VGAA
Model # DP2VGAA
-
SKU: DP2VGAA
- Pick Up Available
- Australian Warranty
- Checkout Securely

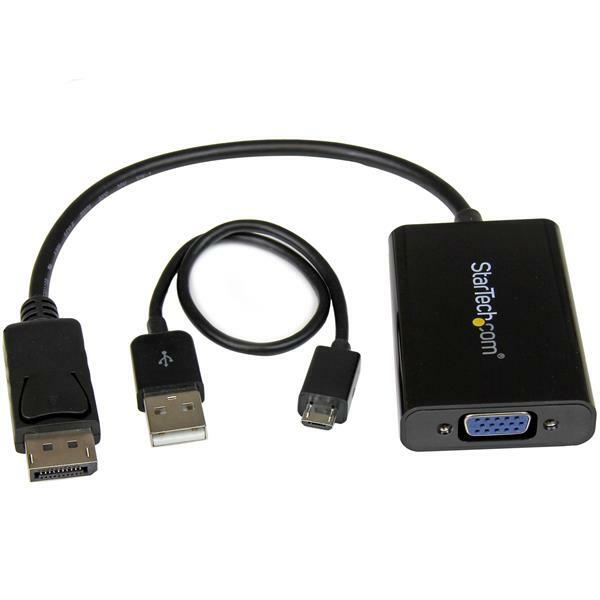

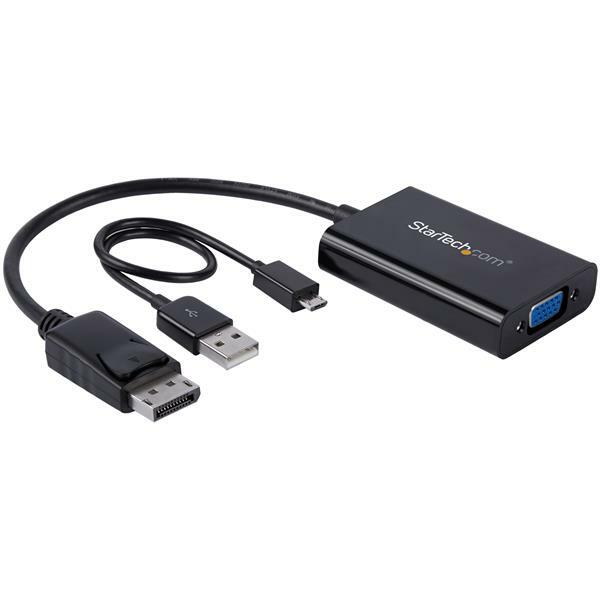

DisplayPort to VGA Adapter with 3.5mm Audio Output
Connect a DisplayPort computer to a VGA display while providing a separate 3.5mm audio output, with Micro-USB power required for audio.
VGA plus audio
Provides a VGA female video output and a separate 3.5mm audio socket from one DisplayPort connection.
Up to 1920 × 1200
Active conversion supports VGA video up to 1920 × 1200, including 1080p.
USB power for audio
Connect Micro-USB power from the host, monitor or a powered USB source to enable the audio function.
What to know
The VGA output carries video only; the separate 3.5mm socket provides audio. Micro-USB power is required when using audio. The adapter works from DisplayPort source to VGA display and does not convert VGA output to DisplayPort input.
Frequently asked questions
What does the DP2VGAA connect?
It connects a DisplayPort computer to a VGA monitor or projector and provides a separate 3.5mm audio output.
What maximum resolution does the DP2VGAA support?
It supports VGA video up to 1920 × 1200, including 1080p, with compatible equipment.
How does audio work on the DP2VGAA?
Audio is available from the separate 3.5mm socket rather than the VGA connector.
Does the DP2VGAA need USB power?
Yes. Connect its Micro-USB input to a powered USB port or compatible USB power source to use the audio function.
Is a VGA cable required for the DP2VGAA?
Yes. The adapter provides a VGA female output, so a suitable VGA cable is required.
Does the DP2VGAA require a driver?
No driver installation is specified; the key setup requirement is Micro-USB power when using audio.
Can the DP2VGAA convert VGA output to DisplayPort input?
No. It works only from a DisplayPort source to a VGA display.
What warranty applies to the DP2VGAA?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2VGAA)
Features and highlights
- Active DisplayPort 1.2 male to VGA female adapter
- Separate 3.5mm female audio output
- Micro-USB Type-B power input for audio operation
- Supports up to 1920 × 1200, including 1080p
- Compact 18.29cm attached lead for portable use
- VGA screw-lock support for a secure display cable
- Connects monitors, projectors and separate speakers
- Directional DisplayPort-source to VGA-display conversion
- Micro-USB power cable and VGA cable should be confirmed for the setup
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to VGA adapter with separate audio output |
|---|---|
| Source connector | 1 × DisplayPort 1.2 male, 20-pin |
| Video output | 1 × VGA female, 15-pin high-density D-Sub |
| Audio output | 1 × 3.5mm mini-jack female |
| Power input | 1 × Micro-USB Type-B female; USB power required for audio |
| Attached cable length | 18.29cm |
| Maximum resolution | 1920 × 1200; supports 1080p |
| Displays supported | 1 |
| Audio note | Audio is provided through the separate 3.5mm socket, not through VGA |
| Direction | DisplayPort source to VGA display only |
| Colour and weight | Black; approximately 51g |
| Compatibility example | Supplied exact-SKU data lists HP EliteBook Folio 9470m; broader compatibility depends on suitable DisplayPort output |
| In the box | 1 × DisplayPort to VGA adapter with audio |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2VGAA |
| Barcode # | 65030861557 |
| Brand | STARTECH |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001100000m3 |
