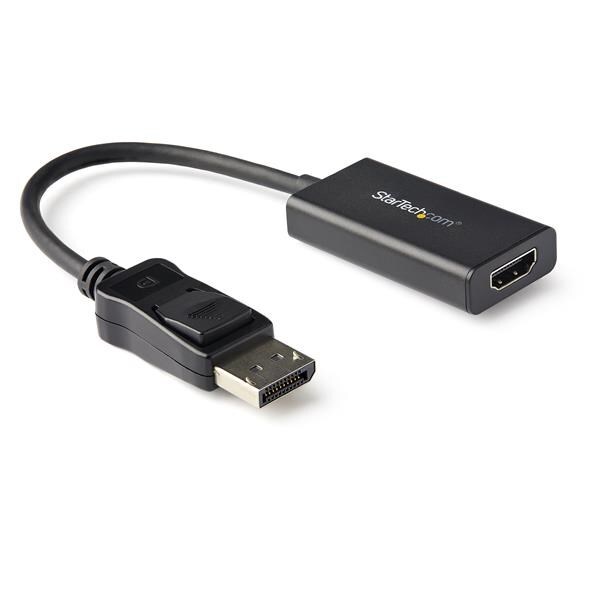

STARTECH.COM | DP2HD4K60H

Active DisplayPort 1.4 to HDMI 2.0 Adapter with HDR10

Connect a DisplayPort computer to an HDMI display at up to 3840 × 2160 60Hz using an active 18Gbps adapter with HDR10 support.

4K 60Hz output

Supports UHD 3840 × 2160 at 60Hz with a compatible DisplayPort source, HDMI 2.0 display and cable.

Active DP conversion

Works with standard DisplayPort and DP++ sources and does not rely on the host passing through a native HDMI signal.

HDR10 and 4:4:4

Supports HDR10 and YCbCr 4:4:4 8-bit colour with compatible equipment.

What to know

For 4K 60Hz, use a DisplayPort 1.4 source, HDMI 2.0b display and suitable HDMI cable. HDR10 also requires HDR support across the full signal path. NVIDIA graphics adapters may limit 4:4:4 colour or multichannel audio with this model.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 3-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP2HD4K60H connect?

It connects a full-size DisplayPort output on a computer to an HDMI input on a monitor, television or projector.

What maximum resolution does the DP2HD4K60H support?

It supports 3840 × 2160 at 60Hz and 4096 × 2160 at 24Hz with compatible equipment.

Does the DP2HD4K60H require DP++?

No. Its active conversion works with standard DisplayPort and DP++ dual-mode DisplayPort sources.

What is required for 4K 60Hz with the DP2HD4K60H?

Use a DisplayPort 1.4 source, HDMI 2.0b display and suitable HDMI cable.

Does the DP2HD4K60H carry audio?

Yes. It supports up to 7.1-channel HDMI audio when the source, display and content support it.

Does the DP2HD4K60H support HDR?

Yes. It supports HDR10 when the DisplayPort source, HDMI display, cable and content all support HDR.

Does the DP2HD4K60H require drivers or external power?

No. It is plug and play and does not use drivers or a separate power adapter.

What warranty applies to the DP2HD4K60H?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2HD4K60H)

Features and highlights

Active DisplayPort 1.4 male to HDMI 2.0b female adapter
Supports 3840 × 2160 at 60Hz and lower resolutions
Also supports 4096 × 2160 at 24Hz
HDR10 and YCbCr 4:4:4 8-bit colour support
Bandwidth up to 18Gbps
Up to 7.1-channel HDMI audio
HDCP 2.2 and DPCP support
Works with standard DisplayPort and DP++ sources
Short 12.2cm attached lead with latching DisplayPort plug
Plug-and-play operation with no drivers or external power adapter
One-way conversion from DisplayPort source to HDMI display
3-year StarTech.com manufacturer warranty

Compatibility check: Maximum 4K 60Hz performance requires a suitable DisplayPort 1.4 source, HDMI 2.0b display and HDMI cable. The adapter is directional and connects DisplayPort source to HDMI display only.

Specifications

Product type	Active DisplayPort 1.4 to HDMI 2.0b adapter
Source connector	1 × DisplayPort male, 20-pin, latching
Display connector	1 × HDMI 2.0b female, 19-pin
Maximum resolution	3840 × 2160 at 60Hz; 4096 × 2160 at 24Hz
Bandwidth	Up to 18Gbps
Colour and HDR	HDR10; YCbCr 4:4:4 8-bit colour with compatible equipment
Audio	Up to 7.1-channel HDMI audio
Content protection	HDCP 2.2 and DPCP
Source compatibility	Standard DisplayPort and DP++ dual-mode DisplayPort
Attached cable length	12.2cm
Displays supported	1
Direction	DisplayPort source to HDMI display only
Power and software	No external power adapter or drivers required
Product weight	Approximately 39g; supplied catalogue lists 25g
Maximum HDMI cable distance	Up to 7m under the specified conditions
Cable note	Not compatible with HDMI cables that use RedMere technology
Operating environment	5°C to 35°C; 25% to 60% relative humidity
Storage temperature	-20°C to 60°C
In the box	1 × DisplayPort to HDMI adapter
Warranty	3-year StarTech.com manufacturer warranty

SKU	DP2HD4K60H
Barcode #	65030879729
Brand	STARTECH
Shipping Weight	0.0400kg
Shipping Width	0.001m
Shipping Height	0.019m
Shipping Length	0.015m

Warranty and Australian supply

DP2HD4K60H is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
