StarTech.com · CDP2DP2MBD

StarTech 2m Bidirectional USB-C to DisplayPort 1.2 Cable

Connect USB-C to DisplayPort or DisplayPort to a powered USB-C display with a 2m active bidirectional cable supporting 4K 60Hz.

DisplayPort 1.2Up to 4K 60HzHBR2 · 21.6GbpsBidirectional

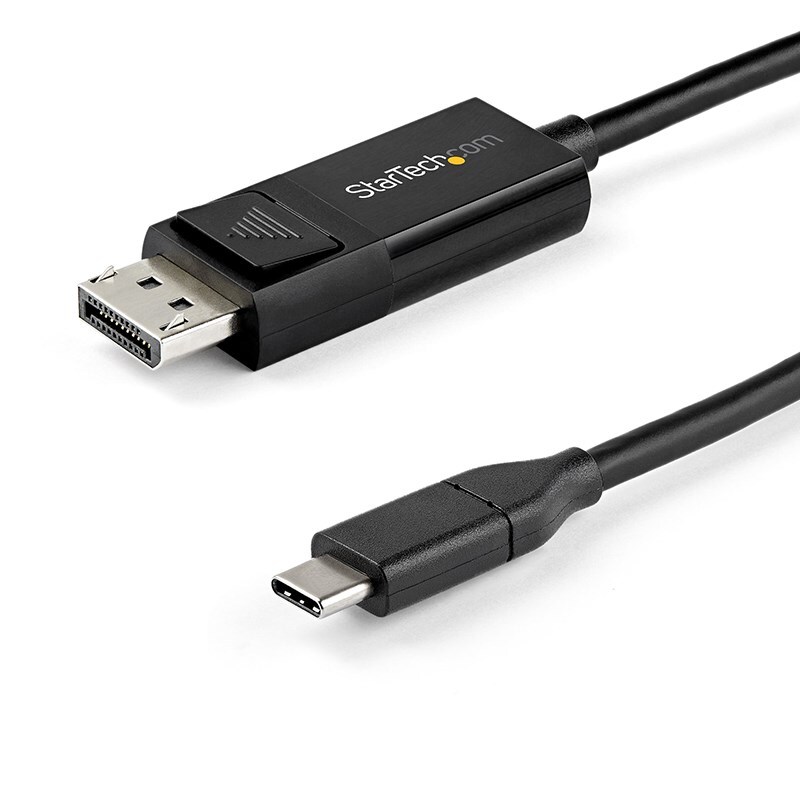

StarTech CDP2DP2MBD bidirectional usb-c and displayport 1.2 cable

Product overview

CDP2DP2MBD adds 2m reach with HBR2, HDR, HDCP and audio in either direction. The integrated active design is driverless, but host and display requirements still apply.

Features that matter

Up to 4K 60Hz

DisplayPort 1.2 video supports 4K 60Hz, plus HDR and 1080p support with compatible source and display hardware.

Bidirectional video connection

Connect a USB-C DP Alt Mode host to a DisplayPort display, or a DisplayPort host to a separately powered USB-C display.

Active integrated conversion

Active integrated conversion supports a compact, driverless connection without a separate video converter.

Driverless multi-platform use

Plug-and-play operation supports compatible Windows and macOS plus other driverless DP Alt Mode systems systems without additional drivers.

What to know before ordering

Host and display requirements

For USB-C to DP, the host must support DP Alt Mode. For DP to USB-C, the USB-C display must have its own power supply.

Check direction-specific power

When using a DisplayPort host with a USB-C display, the display must have its own power supply. Portable USB-C displays that rely on bus power are not supported.

Bidirectional power limitation

A DisplayPort host does not power a USB-C monitor through this cable. Use a USB-C display with its own power supply.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2DP2MBD?

CDP2DP2MBD is a bidirectional usb-c and displayport 1.2 cable for bidirectional video between compatible USB-C and DisplayPort equipment.

What is the maximum resolution?

The verified maximum is 4K 60Hz, with HDR and 1080p support. Actual output depends on the source, display and connection mode.

What must the USB-C port support?

The USB-C host must support DisplayPort Alt Mode. Maximum performance depends on the capabilities shared by the source and display.

Is the connection bidirectional?

Yes. It can connect a USB-C DP Alt Mode host to a DisplayPort display or a DisplayPort host to a compatible, separately powered USB-C display.

Does it require drivers?

No. It is designed for plug-and-play use with compatible Windows and macOS plus other driverless DP Alt Mode systems systems.

Does it support Power Delivery?

No. It does not provide USB-C Power Delivery pass-through.

What is included in the package?

The package contains one 2m bidirectional USB-C to DisplayPort 1.2 cable.

What warranty applies in Australia?

CDP2DP2MBD is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2DP2MBD)

Features and highlights

CDP2DP2MBD key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Up to 4K 60Hz

DisplayPort 1.2 video supports 4K 60Hz, plus HDR and 1080p support with compatible source and display hardware.

Bidirectional video connection

Connect a USB-C DP Alt Mode host to a DisplayPort display, or a DisplayPort host to a separately powered USB-C display.

Active integrated conversion

Active integrated conversion supports a compact, driverless connection without a separate video converter.

Driverless multi-platform use

Plug-and-play operation supports compatible Windows and macOS plus other driverless DP Alt Mode systems systems without additional drivers.

Key highlights

2m (6.6ft) integrated video connection
DisplayPort 1.2 with HBR2 · 21.6Gbps
Up to 4K 60Hz
USB-C to DP or DP to USB-C
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2DP2MBD

Verified specifications and package details for the exact model.

General and Connectivity

Product type

Active bidirectional USB-C and DisplayPort cable

Direction

USB-C to DisplayPort or DisplayPort to USB-C

Cable length

2m (6.6ft)

Connectors

USB-C male to DisplayPort male

Number of displays

Warranty

3 Years

UPC

065030886802

Video and Audio

Maximum resolution

3840 x 2160 at 60Hz in either direction

Bandwidth

HBR2, up to 21.6Gbps

Video features

HDR; HDCP 2.2/1.4

Audio

Yes

Video revision

DisplayPort 1.2

Power Delivery

No PD pass-through

Hardware and Requirements

Active or passive

Active

Chipsets

Chrontel CH7213D-BF; VIA Labs VL170

USB-C host requirement

DisplayPort Alt Mode

DP host to USB-C display

USB-C display requires its own power supply

MTBF

3,304,646 hours

Driver requirement

No additional driver or software

Physical and Environmental

Colour

Black

Material

Plastic

Product length

2038mm

Product height

10mm

Product weight

77g

Operating temperature

045°C

Storage temperature

-1070°C

Humidity

1085% RH

Packaging and In the Box

Package dimensions (W x D x H)

183 x 125 x 19mm

Shipping weight

86g

Package contents

1 x 2m bidirectional adapter cable
