StarTech.com · MDP2HD4K60S

StarTech MDP2HD4K60S Active Mini DisplayPort to HDMI 2.0 4K60 Adapter

Active Mini DisplayPort to HDMI 2.0 4K60 Adapter designed for professional IT, electronics, security or workstation use.

Quick answer: MDP2HD4K60S connects a Mini DisplayPort source to one HDMI display at up to 4K 60Hz with 18Gbps bandwidth and 7.1-channel audio.

Best for4K televisions, monitors and projectors that require smooth 60Hz output from a compatible Mini DisplayPort source.

Check before ordering4K 60Hz requires a DisplayPort 1.2-capable output and an HDMI 2.0 display; the adapter is not compatible with RedMere HDMI cables.

Answers before you buy

Frequently asked questions

What is StarTech MDP2HD4K60S?

It is a active Mini DisplayPort-to-HDMI 2.0 video and audio adapter that connects a Mini DisplayPort source to one HDMI display at up to 4K 60Hz with 18Gbps bandwidth and 7.1-channel audio.

Which connections or mounting method are provided?

Mini DisplayPort 20-pin male input to HDMI 19-pin female output

What performance is specified?

Active conversion; up to 4K 60Hz; 18Gbps; HDMI 7.1-channel audio; HDCP 2.2 and DPCP

How is the product constructed?

Compact black active adapter with a 148mm attached cable and Parade PS176 chipset

What is required for 4K at 60Hz?

The source must provide DisplayPort 1.2 output and the display must support HDMI 2.0 at 4K 60Hz.

Can it be used with a RedMere HDMI cable?

No. StarTech states that this adapter is not compatible with cables using RedMere technology.

What should be checked before ordering?

4K 60Hz requires a DisplayPort 1.2-capable output and an HDMI 2.0 display; the adapter is not compatible with RedMere HDMI cables.

What warranty applies?

MDP2HD4K60S carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDP2HD4K60S)

Features & highlights

Why choose MDP2HD4K60S?

?Purpose-built designMini DisplayPort 20-pin male input to HDMI 19-pin female output

?Specified performanceActive conversion; up to 4K 60Hz; 18Gbps; HDMI 7.1-channel audio; HDCP 2.2 and DPCP

?Professional constructionCompact black active adapter with a 148mm attached cable and Parade PS176 chipset

?Key capabilityHDMI 2.0 output maintains 4K video at 60Hz for compatible displays.

?Deployment advantageActive conversion supports Mini DisplayPort sources that do not provide a passive DP++ signal.

?Order with confidence4K 60Hz requires a DisplayPort 1.2-capable output and an HDMI 2.0 display; the adapter is not compatible with RedMere HDMI cables.

Compatibility reminder: 4K 60Hz requires a DisplayPort 1.2-capable output and an HDMI 2.0 display; the adapter is not compatible with RedMere HDMI cables.

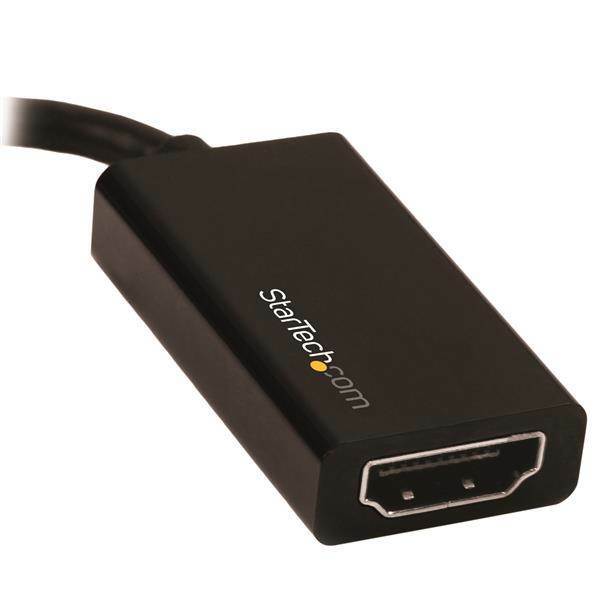

StarTech MDP2HD4K60S Active Mini DisplayPort to HDMI 2.0 4K60 Adapter product image

Technical specifications

MDP2HD4K60S specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	3 Years
Hardware
Active or Passive Adapter	Active
Adapter Style	Adapters
Audio	Yes
AV Input	Mini-DisplayPort
AV Output	HDMI
Chipset ID	Parade - PS176
Industry Standards	DPCP (DisplayPort Content Protection); HDCP 2.2 (High Definition Content Protection); DisplayPort 1.2; HDMI 2.0
Ports	1
Performance
Audio Specifications	7.1 Surround Sound
Maximum Digital Resolutions	4K x 2K @ 60 Hz
Supported Resolutions	4k x 2K (Ultra HD) @ 60 Hz; 1920x1200; 1920x1080 (1080p); 1280x720 (720p)
Wide Screen Supported	Yes
Connector(s)
Connector A	1 - Mini-DisplayPort (20 pin) Male Input
Connector B	1 - HDMI (19 pin) Female Output
Special Notes / Requirements
Note	This video adapter is not compatible with cables that use RedMere technology.
Environmental
Humidity	-25°C to 85°C (77°F to 185°F) at 80% - 95%
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	-25°C to 70°C (13°F to 149°F)
Physical Characteristics
Cable Length	5.8 in [148 mm]
Color	Black
Product Height	0.4 in [1 cm]
Product Length	6 in [15.2 cm]
Product Width	0.9 in [22 mm]
Weight of Product	0.4 oz [11 g]
Packaging Information
Package Height	0.4 in [10 mm]
Package Length	8.7 in [22 cm]
Package Width	7.9 in [20 cm]
Shipping (Package) Weight	0.7 oz [20 g]
What's in the Box
Included in Package	1 - Mini DisplayPort to HDMI adapter

Sources: https://www.devicedeal.com.au/startech-mini-displayport-to-hdmi-2.0-4k60-adapter and https://www.startech.com/

SKU	MDP2HD4K60S
Barcode #	65030865838
Brand	Startech
Shipping Weight	0.0300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3

Manufacturer warranty

3 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 3-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
